Graco 1:1 Fast-Flo Pump Range - PETRO

GRACO 1:1 Fast-Flo Pump Range

SKU 226948
by GRACO
$1,848.00 - $4,367.00
$1,848.00
$1,848.00 - $4,367.00
$1,848.00

Download Data Sheet PDF

Description

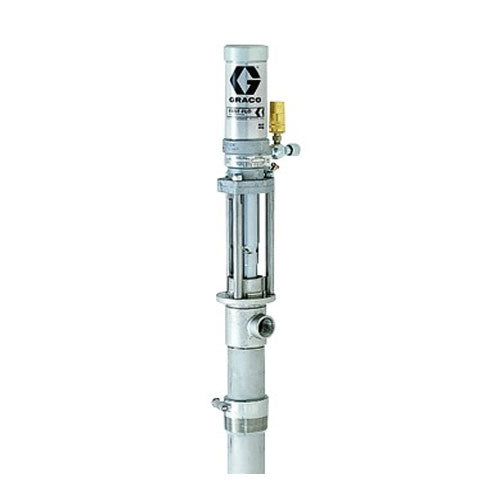

GRACO 1:1 Fast-Flo Pump Range

High Flow Rate Transfer Pump for use with Coolant, Anti-Freeze and Waste Oil Products.

FEATURES:

  • Differential air motor for smooth operation and reliability.
  • Stainless steel models available for corrosion resistance.
Typical Applications
  • Low pressure, high volume transfer of low viscosity fluids.  Automotive dealerships, Heavy-duty dealerships, Fast lube centres, Fleet service facilities, Service shops, In-plant, Lube trucks and Mining.
Typical Fluids Handled
  • Water, Anti-freeze, Windshield wash fluid, Used oil, Used anti-freeze.
  • NOTE: Use Fast-Ball 1:1 for petroleum-based products.

SPECIFICATIONS:

  • Flow Rate: 5 gpm (19 lpm)
  • Maximum Fluid Pressure: 180 psi (12.4 bar)
  • Operating Range: 40-180 psi (2.8-12 bar)
  • Wetted Materials: See Ordering Info
  • Air Inlet Size: 1/4 npt(f)
  • Material Inlet: 1 and 1/2 npt(f)
  • Material Outlet: 3/4 npt(f)
  • Line Length‡: Up to 100 ft (30 m)
  • Dispense Points: 1
  • Annual Usage: Up to 5000 gal (18921 L)



PRODUCT RANGE:

Code

Description

Typical Fluids

Universal-Length Pumps (includes motor and pump-lower assembly)

226948

CS Body with Rubber Seals

Motor Oil

237131

CS Body with PTFE Seals

Motor Oil

237130

CS Body with Leather Seals

Motor Oil

226943

UL Listed – CS Body with Leather Seals

Motor Oil

226944

UL Listed – CE Marked – CS Body with Polyethelene Seals

Motor Oil

226952

SS Body with Rubber Seals

Motor Oil

237132

SS Body with PTFE Seals

Motor Oil

226945

UL Listed – CE Marked – CS Body with Polyethelene Seals

Anti-Freeze, Windshield Wash

Drum-Length Pumps (includes motor and pump-lower assembly)

226940

CS Body, Leather - PTFE - Leather Seals

Motor Oil

226941

CS Body, Polyethylene, UHMWPE Seals

Motor Oil

226947

CS Body with Rubber Seals

Motor Oil

237134

CS Body with PTFE Seals

Motor Oil

226951

CS Body with Rubber Seals – Adjustable Tube 457mm to 1180mm

Motor Oil

237133

CS Body with Leather Seals

Motor Oil

226953

SS Body with Rubber Seals

Motor Oil

226942

SS Body, Polyethylene, UHMWPE Seals

Anti-Freeze, Windshield Wash

237129

SS Body with PTFE Seals

Motor Oil



ACCESSORIES:

Motor Service Kits for all Fast-Flo 1:1 Pumps

220168

Motor Service Kits for all Fast-Flo 1:1 Air Valve Piston Assembly (used with repair kit 214584, which must be ordered separately)

Hose and Fittings Kits

222118

18 in (0.5 m) for connecting wall-mounted Fast-Flo 1:1 pumps to piping. Includes: air hose (109123) with swivel elbow (155541), fluid hose (109108) with swivel elbow (160327)

222119

6 ft (1.8 m) for use with drum-mounted Fast-Flo 1:1 pumps. Includes: air hose (109125) with swivel elbow (155541), fluid hose (109105) with swivel elbow (160327)

Bung Adapters

214583

Allows direct mounting of full-length Fast-Flo 1:1 pumps into standard 2 npt drum bung

217359

Sealed bung adapter for Fast-Flo pumps; can be used with suction kit 236054

Installation Kits

218316

Includes shut-off valve, regulators, gauges and fittings as necessary for normal installation



Contact PETRO industrial's team of bulk fuel storage and dispensing specialists for more information today!
