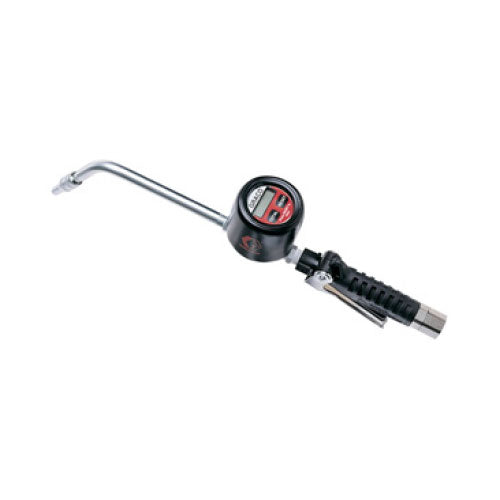

GRACO EM6 Series Electronic Dispense Meters & Control Valve Range

GRACO
SKU: GRACO-EM6
$ POA
📞 Call for A Quote!
Trust Badge

GRACO EM6 Series Electronic Dispense Meters & Control Valve Range

Rugged design withstands demanding environments suitable for Petroleum- and synthetic-based oils.

NOTE: Not recommended for use with anti-freeze or windshield washer fluid.

Typically used by Automotive and heavy-duty dealerships, Mining, Service and fast lube centers, Fleet service facilities, In-plant and Lube trucks.

FEATURES:

  • Reset capable for periodic dispense history information and locking trigger for hands-free operation.
  • Screw-tight nozzle for positive shut off.
  • Ball bearing swivel for ease of use.

SPECIFICATIONS:

  • Maximum Operating Pressure: 1500 psi (105 bar, 10.5,)
  • Operating Temperature Range: -40-180º F (-40-82º C)
  • Storage Temperature Range: -40-140º F (-40-60º C)
  • Inlet: 1/2 npt
  • Outlet: 1/2 npt
  • Wetted Parts: Aluminum, SST, CS, acetal, nitrile rubber, Geolast™
  • Instruction Manual: 308642
  • Accuracy/Repeatability: +/- 0.6%

PRODUCT RANGE:

Code

Description

243992

1/2 in (12.7 mm) bare valve (without locking trigger).

243599

U.S. measure (rigid extension).

243600

U.S. measure (gear lube extension).

243601

U.S. measure (flexible extension).

243602

Metric measure (rigid extension).

243603

Metric measure (gear lube extension).

243604

Metric measure (flexible extension).

Accessories

203655

Twist Lock Nozzle Replacement 1/4 npt(m).

203687

Flex Extension, hose with 203655 tip.

203265

Rigid Extension with tip.

201701

Gear Lube Extension with tip.

235901

Metric Electronic Control Replacement.

235878

U.S. Electronic Control Replacement.

Color-coded Impact Guards for Electronic Meters

191782

Black

191783

Red
    Download Data Sheet PDF
