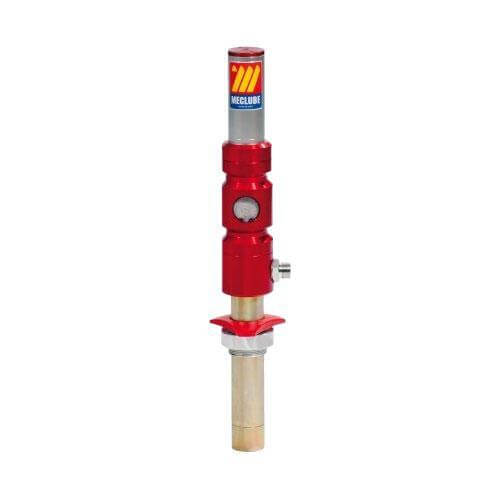

MECLUBE OIL PUMPS - Air Operated STUB Style Range

Meclube
SKU: 020-1168-000-CATA
Availability: Many in stock
$682.00 Incl. GST
Options:
QTY:
Trust Badge

OIL Pumps Meclube - Air Operated STUB Style Range for Wall Fixing or Universal Use

A range of quality lubricant pumps available in a number of air to output ratios. It's a Stub Style Pump for wall or universal mounting with high output and low air consumption.

FEATURES:

  • Double Acting Piston with no cams therefore dramatically decreasing the number of wearing parts within the pump.
  • Pump provides a large delivery of oil for very little air consumption.
  • Aluminium alloy body pump with electrolytic treatment that ensures very high corrosion resistance.
  • High stressed elements in Fe 420 steel.
  • 6-8 bar working pressure.
  • Air Consumption 200lpm.
  • Noise 80db.
  • 1/4” Air Inlet BSP Female Thread.
  • 3/4” Oil Outlet BSP Male Thread.

PUMP APPLICATION:

  • 1:1 - advised for the transfer of low viscosity oil (SAE 15/80), hydraulic oil, similar and antifreeze, for short distances (5 - 10 m).
  • 3:1 - advised for the transfer of low - medium viscosity oil (SAE 15/130), and anti-freeze, for shortmedium distances (40 - 50m).
  • 5:1 - advised for the transfer of medium-high viscosity oil (SAE 15/240), and anti-freeze, for medium-long distances (150 - 240m).
  • 8:1 - advised for the transfer of high viscosity oil (SAE 15/280), for medium-long distances (150 - 200m).

NOTE: To optimize the performance and the time-life of the air-operated pumps advise to use filtered and lubricated air.
