Description

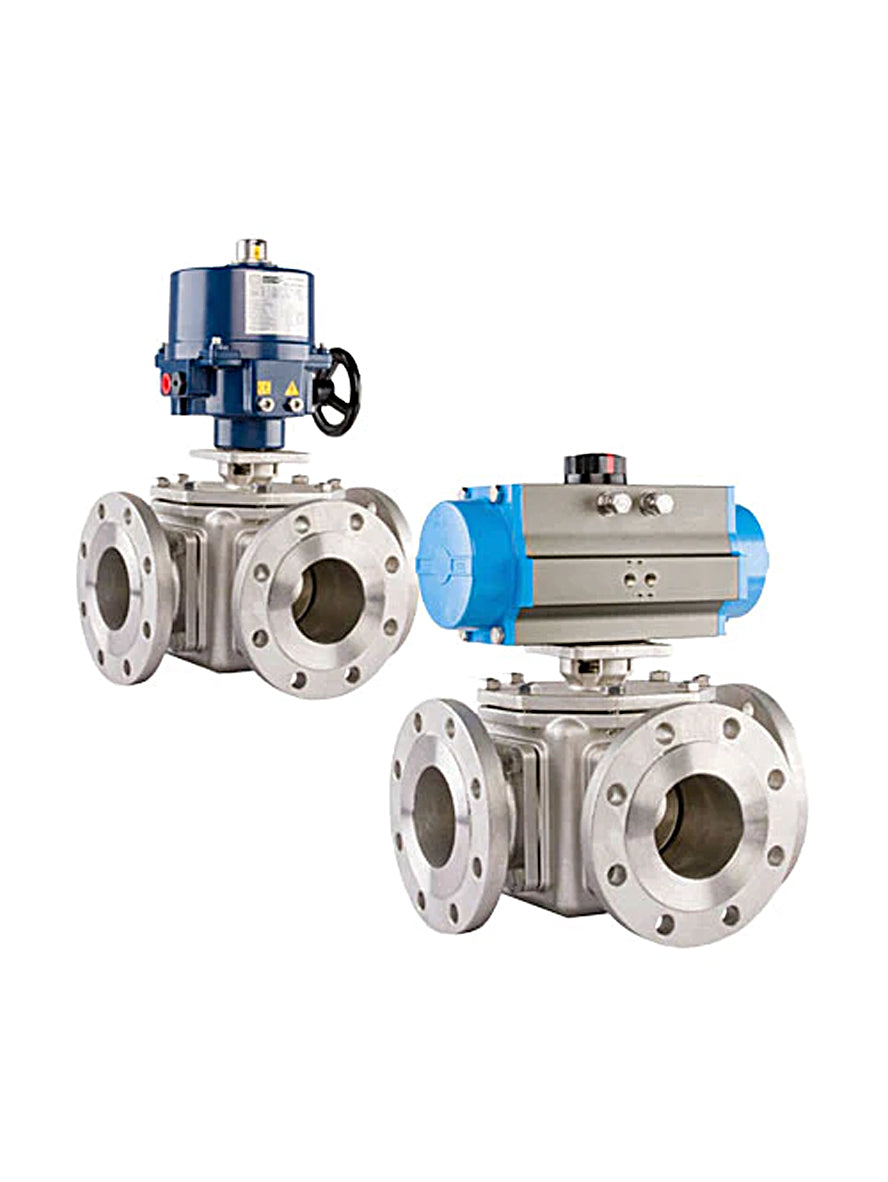

3 Way Full Bore Ball Valves - Flanged Actuated, 316 Stainless Steel

FEATURES:

  • High performance 3 way full bore 316 Stainless Steel ball valve with ANSI 150 flanged connections and a double acting pneumatic actuator.
  • Self adjusting stem packing assembly with belleville spring for temperature fluctuations and vibration.
  • Pre drilled metric ISO5211 direct mounting pad to minimise any thermal transfer from valve to actuator.
  • Reinforced PTFE seats for temperatures up to 180°C.
  • Anodized aluminium rack and pinion actuator with visual indicator, namur interface and stop adjustments.
  • Typical applications include water treatment, chemical, marine, petrochemical and general industry.

ANSI 150 3 WAY FLANGED DOUBLE ACTING:

Model

DN

(mm)

Actuator

Media

Pressure

Media

Temperature

Actuator

Pressure

BLS3L4FA-DA-RT

15

DA50

Vacuum to 20 Bar

-20°C to 180°C

6 to 8 Bar

BLS3L5FA-DA-RT

20

DA63

Vacuum to 20 Bar

-20°C to 180°C

6 to 8 Bar

BLS3L6FA-DA-RT

25

DA63

Vacuum to 20 Bar

-20°C to 180°C

6 to 8 Bar

BLS3L7FA-DA-RT

32

DA75

Vacuum to 20 Bar

-20°C to 180°C

6 to 8 Bar

BLS3L8FA-DA-RT

40

DA75

Vacuum to 20 Bar

-20°C to 180°C

6 to 8 Bar

BLS3L9FA-DA-RT

50

DA88

Vacuum to 20 Bar

-20°C to 180°C

6 to 8 Bar

BLS3L10FA-DA-RT

65

DA100

Vacuum to 20 Bar

-20°C to 180°C

6 to 8 Bar

BLS3L11FA-DA-RT

80

DA115

Vacuum to 20 Bar

-20°C to 180°C

6 to 8 Bar

BLS3L12FA-DA-RT

100

DA125

Vacuum to 20 Bar

-20°C to 180°C

6 to 8 Bar



ANSI 150 3 WAY FLANGED SPRING RETURN:

Model

DN

(mm)

Actuator

Media

Pressure

Media

Temperature

Actuator

Pressure

BLS3L54FA-SR-RT

15

SR63

Vacuum to 20 Bar

-20°C to 180°C

6 to 8 Bar

BLS3L55FA-SR-RT

20

SR75

Vacuum to 20 Bar

-20°C to 180°C

6 to 8 Bar

BLS3L56FA-SR-RT

25

SR75

Vacuum to 20 Bar

-20°C to 180°C

6 to 8 Bar

BLS3L57FA-SR-RT

32

SR88

Vacuum to 20 Bar

-20°C to 180°C

6 to 8 Bar

BLS3L58FA-SR-RT

40

SR100

Vacuum to 20 Bar

-20°C to 180°C

6 to 8 Bar

BLS3L59FA-SR-RT

50

SR115

Vacuum to 20 Bar

-20°C to 180°C

6 to 8 Bar

BLS3L510FA-SR-RT

65

SR125

Vacuum to 20 Bar

-20°C to 180°C

6 to 8 Bar

BLS3L511FA-SR-RT

80

SR145

Vacuum to 20 Bar

-20°C to 180°C

6 to 8 Bar

BLS3L512FA-SR-RT

100

SR160

Vacuum to 20 Bar

-20°C to 180°C

6 to 8 Bar



FEATURES:

  • High performance 3 way full bore 316 Stainless Steel ball valve with ANSI 150 flanged connections and a double acting pneumatic actuator.
  • Self adjusting stem packing assembly with belleville spring for temperature fluctuations and vibration.
  • Pre drilled metric ISO5211 direct mounting pad to minimise any thermal transfer from valve to actuator.
  • Reinforced PTFE seats for temperatures up to 180°C.
  • Anodized aluminium rack and pinion actuator with visual indicator, namur interface and stop adjustments.
  • Typical applications include water treatment, chemical, marine, petrochemical and general industry.

ANSI 150 3 WAY FLANGED SPRING RETURN:

Model

DN

(mm)

Actuator

Media

Pressure

Media

Temperature

BLS3L4FA-E*-RT

15

0M-1

Vacuum to 20 Bar

-20°C to 180°C

BLS3L5FA-E*-RT

20

0M-1

Vacuum to 20 Bar

-20°C to 180°C

BLS3L6FA-E*-RT

25

0M-1

Vacuum to 20 Bar

-20°C to 180°C

BLS3L7FA-E*-RT

32

0M-A

Vacuum to 20 Bar

-20°C to 180°C

BLS3L8FA-E*-RT

40

0M-2

Vacuum to 20 Bar

-20°C to 180°C

BLS3L9FA-E*-RT

50

0M-2

Vacuum to 20 Bar

-20°C to 180°C

BLS3L10FA-E*-RT

65

0M-3

Vacuum to 20 Bar

-20°C to 180°C

BLS3L11FA-E*-RT

80

0M-4

Vacuum to 20 Bar

-20°C to 180°C

BLS3L12FA-E*-RT

100

0M-4

Vacuum to 20 Bar

-20°C to 180°C



Contact PETRO industrial's team of bulk fuel storage and dispensing specialists for more information today!
