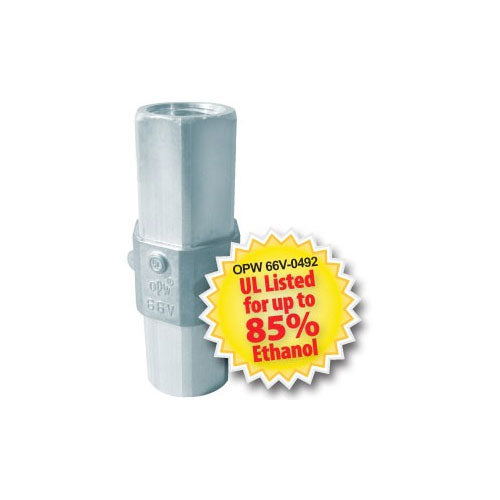

BREAKAWAY OPW - Single Use 66V Range

OPW
SKU: 66V-0300
Availability: Many in stock
$ POA
Trust Badge

BREAKAWAY OPW - Single Use 66V Range

Available in 1” (25mm) and 3/4” (19mm) suitable for up to 85% Ethanol.

OPW 66V Series Breakaways must always be installed with a “straightening” hose with a minimum length of 9” for the ¾” Series and a minimum length of 12” for the 1” Series, such as the 66H Series hoses.

Installed on fuel dispensing hoses, they will separate at the designed pull force, reducing expensive damage to the dispenser and piping system. Internal dual valves close automatically during separation stopping the flow of fuel from both the dispenser and the separated hose, reducing environmental and health risks of potential spilled fuel.

FEATURES:

  • UL and ULC listed for use in gasoline, diesel, and up to 10% ethanol blends.
  • Prevents costly damage to dispensers – Pulls apart at less the designed pull force during drive-offs.
  • Certainty of operation – Designed for single use, so you know it is replaced instead of re-assembled.
  • Prevents hazardous and costly clean up – Unique double poppet design closes leak path from both dispenser and separated hose side.
  • Design working pressure 50 PSI (3.45 bar) maximum pressure.

Materials:

  • Body:  aluminum.
  • Seals:  Buna-N and Viton®.
  • Weight:  See matrix in the Ordering Specifications.

PRODUCT RANGE:

Code

Description

66V-0300

3/4” F x 3/4” F (NPT) Valve 300lb

66V-0492

3/4” F x 3/4” F (NPT) 85% Ethanol 300lb

66V-1300

1” F x 1” F (NPT) 300lb

66V-1350

1” F x 1” F (NPT) 350lb

66-0075

3/4” F x 3/4” M (NPT) 300lb 9” Whip Hose

66-1300

1” F x 1” M (NPT) 300lb 12” Whip Hose

66H-0075

3/4” M x 3/4” M (NPT) 9” Straightening Hose

66H-1300

1” M x 1” M (NPT) 12” Straightening Hose



ACCESSORIES:

3/4” Vinyl Scuffguard Cover – 66S-0075

1” Vinyl Scuffguard Cover – 66S-1300
