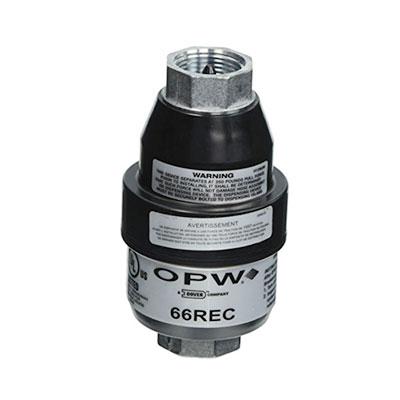

OPW Breakaway Reconnectable 66REC - 20MM (3/4”)

The OPW 66REC is the first dry reconnect able breakaway for the conventional dispensing market. It is designed to be installed on fuel dispensing hoses and will separate when subjected to a designated pull force.

The dual valves seat automatically, stopping the flow of fuel and limiting any fuel spillage, while protecting the dispensing equipment. When reconnecting the separated halves, the 66REC seals tightly on an O-Ring before the poppet stems engage to open the valve.

For proper operation on high-hanging hoses, the OPW 66REC 3/4” must always be installed with a “straightening” hose with a minimum length of 9”, such as the OPW 66H. For low hose applications, the OPW 66REC should be installed downstream of the retractor cable.

• UL and ULC listed for use in gasoline, diesel, and up to 10% ethanol blends.
• The 66REC will breakaway with a pull force of no more than 350 lbs.
• Coupling halves protected by proven plastic sleeves.
• Easily reconnected - just “push and twist” until you hear the audible click, signifying the unit has been correctly reconnected. Reconnection force approximately 15 lbs.
• Die-cast zinc body, impact resistant nylon protective sleeves, Viton main seals, Stainless Steel main spring, Acetal guide and poppets.
• Lower Temperature Rating: -40 degrees fahrenheit.
• Dimensions: 8 x 3 x 10 inches.
