GRACO 50:1 Fire Ball 300 Grease Pump Range

GRACO
SKU: GRACO-300-50:1
Availability: Many in stock
$ POA
Trust Badge

GRACO 50:1 Fire Ball 300 Grease Pump Range

To dispense medium pressure, low to medium volume grease, up to NLGI #2.

Typically used by Automotive dealerships, Heavy-duty dealerships, Fast lube and service centers, Fleet service facilities, Lube trucks, Mining and In-plant.

FEATURES:

  • Non-corrosive air motor design for long life.
  • Double-acting pump ensures smooth fluid flow.
  • Robust grease inlet cage withstands the most abusive handling.

SPECIFICATIONS:

  • Continuous-Duty Flow Rate: 1.19 lb/min. (.54 kg/min.)
  • Maximum Fluid Pressure: 8400 psi (580 bar)
  • Air Motor Effective Diameter: 3 in (76.2 cm)
  • Operating Range: 30-140 psi (3.0-9.7 bar)
  • Approximate Air Use: 22.8 cfm @100 psi (7 bar)
  • Wetted Materials: CS, Delrin®, Buna-N, Polyurethane
  • Air Inlet Port Size: 3/8 in npt(f)
  • Material Inlet: Slotted
  • Material Outlet: 1/4 in npt(f)
  • Line Length: Up to 250 ft (76.2 m)
  • Dispense Points: 1 to 2
  • Annual Usage: Up to 10,000 lb (4,535 kg)

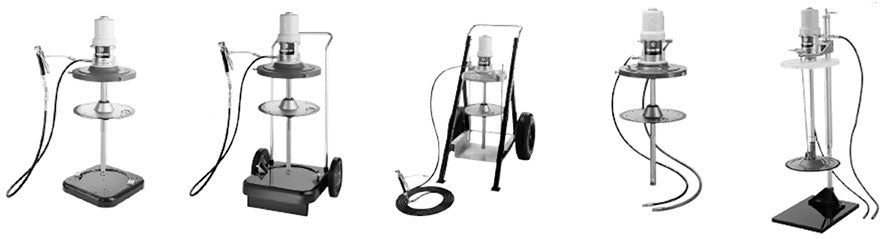

PRODUCT RANGE:

Code

Description

Pump Range

239877

35 lb or 70 lb (16 kg or 32 kg) Grease Pump - 50:1

239887

120 lb (55 kg) Grease Pump - 50:1

239888

400 lb (180 kg) Grease Pump - 50:1

16kg Grease Pump Packages

222069

16kg Portable Pail Dispensing Package

225827

16kg Stationary Pail Dispenser

225773

16kg Cart-Mounted Pail Dispenser

226012

16kg Cart-Mounted Pail Topper

55kg Grease Pump Packages

225014

55kg Stationary Supply

222073

55kg Stationary Supply Topper-Inductor

225006

55kg Portable with Caster Base

225026

55kg Portable with Two-Wheel Cart

222245

55kg Portable with Heavy-Duty Cart

180kg Grease Pump Packages

225016

180kg Stationary

226013

180kg Topper-Inductor



50:1 35-70 lb (16kg) GREASE PUMP PACKAGES:



Portable

Pail Dispenser

Stationary

Pail Dispenser

Cart-Mounted

Pail Dispenser

Cart-Mounted

Pail Topper

Container Size

35 lb (16kg)

35 lb (16kg) or 70 lb (32kg)

35 lb (16kg) or 70 lb (32kg)

35 lb (16kg)

Package No.

222069*

225872*

225773*

226012*

Metered Package**

245694

245695

Pump No.

239877

Dispense Kit

222070

Fluid Hose

12 ft (3.7m) x 1/4 in (6.4mm)

Follower Plate

220653

Cover

222059

204574

Holster

203976

Container

204134

204134

Cart

203650

Elevator

203664

Inductor Plate

204351

Instuction Manual

307878

* Use 3/8 in (9.5mm) air regulator (109075) ordered separately  ** Metered grease package includes (233807) Accu-Shot instead of (242056) Pro-Shot.

† Order follower plate (220653) for 35 lb (16kg) containers, and follower plate (220654) for 70 lb (32kg) containers separately.



50:1 PACKAGES FOR 120 lb (55kg) CONTAINERS:



Portable with

Caster Base

Portable with

Two-Wheel Cart

Portable with

Heavy-Duty Cart

Stationary

Supply

Stationary Supply

Topper-Inductor

Container Size

??

??

??

??

??

Package No.

225006*

225026*

222245*

225014*

222073*

Metered Package**

245696**

Pump Only

239887

239887

239887

239887

239887

Dispense Kit

222070

222070

222383

222072

Fluid Hose

12 ft (3.7m) x 1/4 in (6.4mm)



25 ft (7.6m) x 1/4 in (6.4mm)

6 ft (1.8m) x 1/4 in (6.4mm)

Air Hose

6 ft (1.8m) x 3/8 in (9.5mm)

Follower Plate

220654

220654

220654

220654

Cover

204574

204574

222060

204574

Holster

203976

203976

Caster Base

203622

Cart

203650

222243

Elevator

204121

Pump Support

222074†

Hold Down Kit

222061

Instruction Manual

307878

307878

307878

307880

306523

* Use 3/8 in (9.5mm) air regulator (109075) ordered separately  ** Metered grease package includes (233807) Accu-Shot instead of (242056) Pro-Shot.

† Pump support assembly includes dust cover, base, inductor plate and 6 ft (1.8m) fluid and air hose.
