GRACO 50:1 Mini Fire-Ball 225 Grease Pump Range

GRACO
SKU: 246909
Availability: Many in stock
$1,441.00 Incl. GST
QTY:
Trust Badge

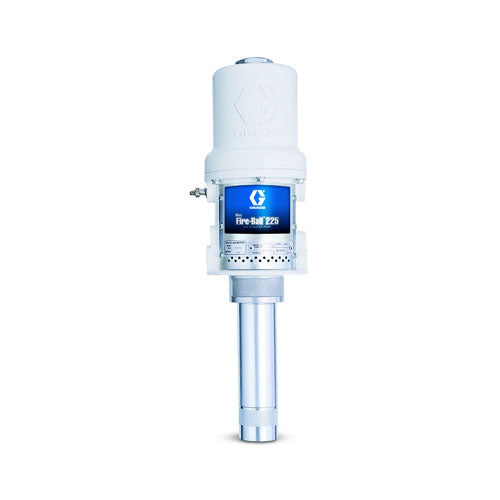

GRACO 50:1 Mini-Fire Ball 225 Grease Pump Range

To dispense medium pressure, low to medium volume grease, up to NLGI #2.

Typically used by Automotive dealerships, Heavy-duty dealerships, Fast lube and service centers, Fleet service facilities, Lube trucks, Mining and In-plant.

FEATURES:

  • Non-corrosive air motor design for long life.
  • Double-acting pump ensures smooth fluid flow.
  • Robust grease inlet cage withstands the most abusive handling.

SPECIFICATIONS:

  • Continuous-Duty Flow Rate: 0.32 lb/min (0.15 kg/min)
  • Maximum Fluid Pressure: 8400 psi (578 bar)
  • Air Motor Effective Diameter: 2.25 in (57.2 mm)
  • Operating Range: 40-140 psi (3-10 bar)
  • Approximate Air Use: 7.3 scfm @ 0.41 lb/min. (.18 kg/min) @ 100 psi @ 80 cpm
  • Wetted Materials: Steel, Urethane, Aluminum, Buna-N, Brass, Ethylene, Delrin®
  • Air Inlet Port Size: 3/8 in npt(f)
  • Material Inlet: Slotted
  • Material Outlet: 1/4 in npt(f)
  • Line Length: Up to 100 ft (30.5 m)
  • Dispense Points: 1
  • Annual Usage: Up to 10,000 lb (4,535 kg)

PRODUCT RANGE:

Code

Description

Pump Range

246909

35 lb (16 kg) Grease Pump - 50:1

246780

120 lb (55 kg) Grease Pump - 50:1

246781

400 lb (180 kg) Grease Pump - 50:1

Grease Pump Packages

246910

16kg Portable Pail Dispensing Package

246914

55kg Stationary Dispensing Package

246911

16kg Stationary Pail Dispensing Package

246917

180kg Stationary Supply Package

246915

55kg Portable Package w/ Caster Base

246916

55kg Portable Package w/ 2-Wheel Cart

246913

16kg Cart Mounted Pail Dispensing Package

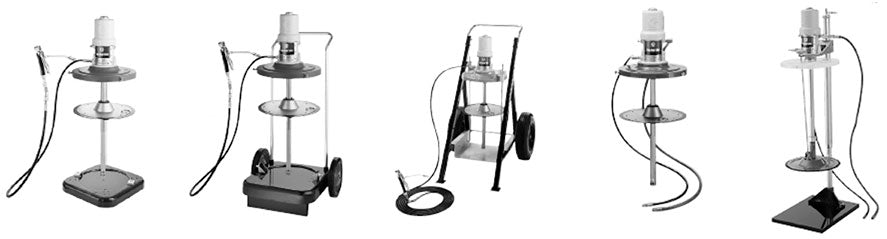

PUMPS AND PACKAGES:



Portable

Pail Dispenser

Stationary

Pail Dispenser

Cart-Mounted Pail Dispenser

Stationary

Supply Package

Portable Package

w/ Caster Base

Portable Package

w/ 2-Wheel Cart

Stationary

Supply Package

Container Size

35 lb (16kg) pail

35 lb (16kg) pails or

70 lb (32kg) bulk

120 lb (55kg)

400 lb (180kg)

Package No.

246910

246911

246913

246914

246915

246916

246917

Pump Only

246909

246780

246781

Container

–

204134

–

–

–

–

Follower Plate

220653

*

*

220654

223845

Dispense Kit

236058

222072

236058

222072

Fluid Hose

12 ft x 1/4 in

(3.7m x 6.4mm)

6 ft x 1/4 in

(1.8m x 6.4mm)

12 ft x 1/4 in

(3.7m x 6.4mm)

6 ft x 1/4 in

(1.8m x 6.4mm)

Air Hose

222059

204574

204574

6 ft x 3/8 in

(1.8m x 9.5mm)

–

–

6 ft x 3/8 in

(1.8m x 9.5mm)

Cover

222059

204574

200326

Cart

–

–

203650

–

203622

203650

–

Manual

309967

Order 3/8 in (9.5mm) air regulator (109075) separately.

* Order follower plate (220653) separately for 35 lb (16kg) pails or (220654) for 70 lb (32kg) bulk.

Download Data Sheet PDF
