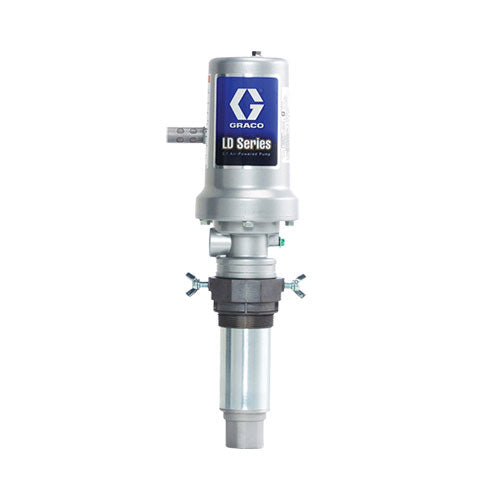

GRACO Air Operated Piston Oil Pumps - 3:1 LD Series
FEATURES: Range of 3:1 and 5:1 air operated piston pumps. Built-in thermal relief protects your equipment from thermal expansion. Three-inch air motor provides more power to create better flow. Cup and plate design eliminates the need for O-rings that wear out faster. Adjustable bung adaptor...
$975
incl GST
SKU: 24G576
Description
Product Range
| 3:1 LD Oil Pump | 5:1 LD Oil Pump | |
|---|---|---|
| Maximum Fluid Working Pressure | 450 psi (31 bar, 3.10MPa) | 750 psi (31 bar, 3.10MPa) |
| Fluid Pressure Ratio | 3:1 | 5:1 |
| Suction Lift (feet of oil) | 10 | 10 |
| Air Operation Range | 20 to 150 psi (1.37 to 10.3 bar) | 20 to 150 psi (1.37 to 10.3 bar) |
| Recommended Air Pressure (for max. life) | <125 psi (8.6 bar, 0.86 MPa) | <125 psi (8.6 bar, 0.86 MPa) |
| Max Recommended Pump Speed | 120 cycles per minute | 180 cycles per minute |
| Cycles Per Gallon/pound (l/kg) | 7 cycles per liter (29G) | 10 cycles per liter (37G) |
| Recommended Pump Speed (for max. life) | 75 cycles per minute or lower | 75 cycles per minute or lower |
| Wetted Parts | Zinc plated carbon, steel, aluminum, nitrile, polyuretgabe, nickle plated aluminum | |
| Sound Pressure Level | 72.9 dB(a) | 72.9 dB(a) |
| Sound Power Level | 82 dB(a) | 82 dB(a) |
| Approximate Weight | 7 pounds (3.2 kg) | 7.7 pounds (3.5 kg) |
| Air Inlet | 1/4” | 1/4” |
| Fluid Inlet | 1” | 1” |
| Fluid Outlet | 1/2” | 1/2” |
| Free Flow* | 9 gpm | 7.8 gpm |
| *Free flow at 150 psi aire inlet pressure, using SAE 20 oil at 70° F |
