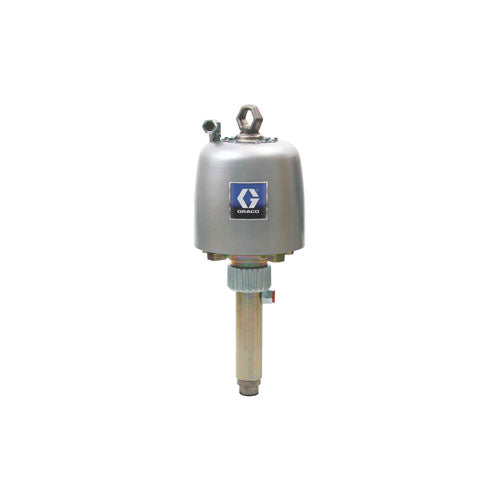

GRACO Bulldog 43:1 Hydraulic Supply Pump

GRACO
SKU: 218334
Availability: Many in stock
$13,420.00 Incl. GST
QTY:
Trust Badge

GRACO Bulldog 43:1 Hydraulic Supply Pump

The Bulldog 43:1 air-powered pump, with its efficient, large ported air valve, is the highest-performing in its class. Downtime is minimized by an air motor design that has been developed and tested for more than 10 million cycles of operation. Compact, durable, and reliable under tough working conditions.  Ideal for blowout preventor systems.

FEATURES:

  • Compact, low-profile design makes installation easier.
  • Corrosion resistant – lightweight aluminum construction.
  • Added safety – grounded lug prevents static build-up.

SPECIFICATIONS:

  • Maximum Operating Pressure: 4300 psi (301 bar).
  • Maximum Air Input Pressure: 100 psi (7 bar).
  • Air Inlet: 3/4 npsm(f).
  • Fluid Inlet: 1 npt(f).
  • Fluid Outlet: 3/4 npt(f).
  • Wetted Parts: CS, SST, Chrome Plating, Zinc Plating, Nickel Plating, Brass, Buna-N.
  • Instruction Manual: 307714.

ORDERING INFORMATION:

Code

Description

218334

43:1 Bulldog Hydraulic Supply Pump

Air Pressure Regulators

206197

1/2 inch npt inlet and outlet

207755

3/4 inch npt inlet and outlet

Air Line Filters

106149

1/2 inch npt inlet and outlet

106150

3/4 inch npt inlet and outlet

Grounding Clamp and Wire

103538

Grounding clamp

222011

Ground wire

Code

Description

Bleed-Type Master Air Valve

107142

1/2 inch npt inlet and outlet

Air Line Lubricator

214848

1/2 inch npt inlet and outlet

214849

3/4 inch npt inlet and outlet

Repair Kits

24U227

Pump lower repair kit

24U228

Air motor repair kit

24W515

Pump and air motor repair kit
