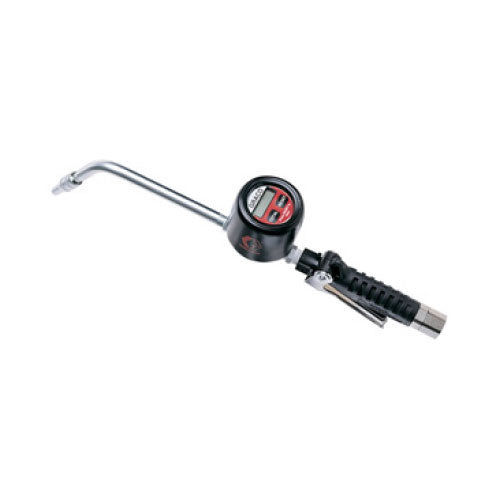

GRACO EM12 Series Electronic Dispense Meters & Control Valve Range - 45lpm

GRACO
SKU: GRACO-EM12
Availability: Many in stock
$ POA
Trust Badge

GRACO EM12 Series Electronic Dispense Meters & Control Valve Range - 45lpm

Rugged design withstands demanding environments suitable for Petroleum- and synthetic-based oils.

NOTE: Not recommended for use with anti-freeze or windshield washer fluid.

Typically used by Automotive and heavy-duty dealerships, Mining, Service and fast lube centers, Fleet service facilities, In-plant and Lube trucks.

FEATURES:

  • Reset capable for periodic dispense history information and locking trigger for hands-free operation.
  • High-flow capability provides up to 12 gpm (45 lpm).
  • Screw-tight nozzle for positive shut off.
  • Ball bearing swivel for ease of use.

SPECIFICATIONS:

  • Maximum Recommended Flow Rate: 12 gpm (45.4 lpm)
  • Maximum Operating Pressure: 1500 psi (105 bar)
  • Operating Temperature Range: -4-130º F (-20-55º C)
  • Storage Temperature Range: -40-140º F (-40-60º C)
  • Inlet: 1/2 npt and 3/4 npt
  • Outlet: 1/2 npt
  • Wetted Parts: Aluminum, SST, CS, acetal, nitrile rubber, Geolast
  • Instruction Manual: 308642

PRODUCT RANGE:

Code

Description

Bare Valves with Locking Trigger (no meter or extension)

238647

Inline flow through with 1/2 npt(f) swivel inlet and outlet.

238646

Inline flow through 3/4 npt(f) swivel inlet; 1/2 npt(f) outlet.

EM12 Electronic Meters with 3/4 in npt(f) swivel inlet

238636

U.S. measure, rigid extension.

238637

U.S. measure, flexible extension.

238638

Metric measure, rigid extension.

238639

Metric measure, flexible extension.

EM12 Electronic Meters with 1/2 in npt(f) swivel inlet

238640

U.S. measure, rigid extension.

238641

U.S. measure, flexible extension.

238642

Metric measure, rigid extension.

238643

Metric measure, flexible extension.

Accessories

185416

Filter 40 mesh stainless steel.

238400

Automatic nozzle 1/2 npt(f) with 1 in diameter tip.

223920

High flow twist lock nozzle, 1/2 npt(f) with 1 in diameter tip.

235901

Metric Electronic Control Replacement .

235878

U.S. Electronic Control Replacement.

Color-coded Impact Guards for Electronic Meters

191782

Black

191783

Red
