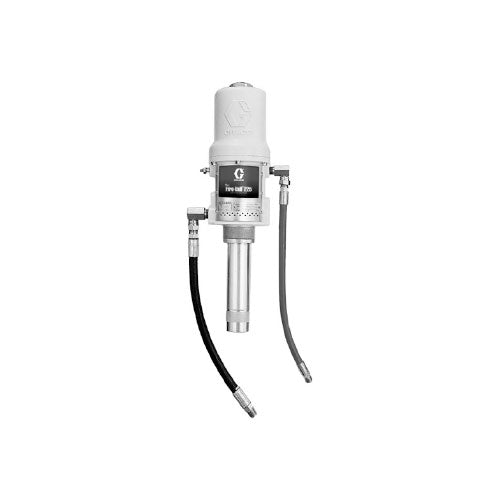

GRACO Fire-Ball 425 Pump Range

GRACO
SKU: GRACO-425-3:1-6:1-10:1
Availability: Many in stock
$ POA
Trust Badge

GRACO Fire-Ball 425 Pump Range

Typical Fluids Handled are Petroleum- and synthetic-based oils.  Typical Applications are Lubricant transfer, Automotive dealerships, Heavy-duty dealerships, Fast lube centers, Fleet service facilities, Service shops, In-plant, Lube trucks and Mining.

FEATURES:

  • In-line design with fewer parts for less pump wear.
  • Differential air motor ensures smooth pumping.
  • Double-acting pump provides reliable fluid flow.

PRODUCT RANGE:

Code

Description

Pump Range

205626

10:1 Universal Oil Pump – Free Flow 15.4lpm

238108

6:1 Universal Oil Pump – Free Flow 25.4lpm

237526

3:1 Universal Oil Pump – Free Flow 50.6lpm

222095

10:1 Oil Pump, 200L Drum, bung mount

222065

10:1 Oil Pump, 200L Drum, cover mount

Pump Packages

225782

10:1 200L Drum Cover Mount, Pump, Hose Kit, Cover

225786

10:1 200L Bung Mount, Pump, Hose Kit

244847

10:1 Wall Mount, Pump, Hose Kit, Filter Regulator, Air+Fluid Shut Off Valve, Wall Mount Kit

244628

6:1 Wall Mount, Pump, Hose Kit, Filter Regulator, Air+Fluid Shut Off Valve, Wall Mount Kit

244846

3:1 Wall Mount, Pump, Hose Kit, Filter Regulator, Air+Fluid Shut Off Valve, Wall Mount Kit

225853

10:1 Universal - Pump, Hose Kit



SPECIFICATIONS:



3:1

6:1

10:1

Cycles per Gallon

6 (1.6 liters)

12 (3.2 liters)

19.6 (5.2 liters)

Fluid Flow gal/min @ 80 cpm

13.4 (50.6 liters)

6.6 (25.3 liters)

4.1 (15.4 liters)

Maximum Fluid Pressure

540 psi (37 bar)

1100 psi (76 bar)

1800 psi (124 bar)

Air Motor Effective Diameter

4.25 in (107.9 mm)

Air Operating Range

40-180 psi (2.8-12 bar)

Approx. Air Use and Flow

@ 100 psi and 80 cpm

58 scfm @ 13.4 gpm

(1.64 m3/min @ 50.6 lpm)

49.5 scfm @ 6.8 gpm

(.334 m3/min @ 25.7 lpm)

32 scfm @ 4.1 gpm

(.555 m3/min @ 15.4 lpm)

Wetted Materials

Steel, Polyurethane, Aluminum, Nitrile

Air Inlet Port Size

1/2 in npt(f)

Fluid Inlet Port Size

1-1/2 in npt(f)

Fluid Outlet Port Size

3/4 in npt(f)

Line Length

Up to 250 ft (76.2 m)

Up to 500 ft (152.5 m)

Up to 750 ft (228.6 m)

Dispense Points

3 to 4

Annual Usage

Over 35,500 gal (132,000 l)

Typical Applications

High flow, low pressure maintenance facility dispensing motor oil, gear oil, automatic transmission fluid, hydraulic fluid



Fire-Ball 425 Package – Ordering Information:

Packages

Cover-Mounted

Bung-Mounted

Universal

Wall-Mounted

Container Size

55 gal (200 l)

Universal

Fire-Ball 425, 3:1 Package

244846 (3)

Fire-Ball 425, 3:1 Pump

237526

Fire-Ball 425, 6:1 Package

244628 (3)

Fire-Ball 425, 6:1 Pump

238108

Fire-Ball 425, 10:1 Package

225782 (1) (2)

225786 (1) (2)

225853 (1) (2)

244847

Fire-Ball 425, 10:1 Pump

222065

222095

205626

205626

Hose/Fitting Kit

222066

222068

Fluid Hose

6 ft x 3/4 in (1.8 m x 19.05 mm)

1.5 ft x 3/4 in (0.5 m x 19.05 mm)

Air Hose

6 ft x 1/2 in (1.8 m x 12.7 mm)

1.5 ft x 1/2 in (0.5 m x 12.7 mm)

Cover

200326

Filter Regulator

217072

Air Shutoff Valve

110225

Fluid Shutoff Valve

108537

Wall Mount Bracket

238245

Instruction Manual

307883

306520

309351



(1) Use 1/2 in (12.7 mm) air regulator (104266) and air pressure gauge (100960) as required; must be ordered separately—see mounting accessories section

(2) Order low-level cut off (203688) separately for metered dispense systems—see mounting accessories section

(3) Includes pump plus: Filter Regulator (217072), Hose and Fitting Kit (222068), Air Shutoff Valve (110225), Fluid Shutoff (108537), Wall Mount Bracket, (238245)
