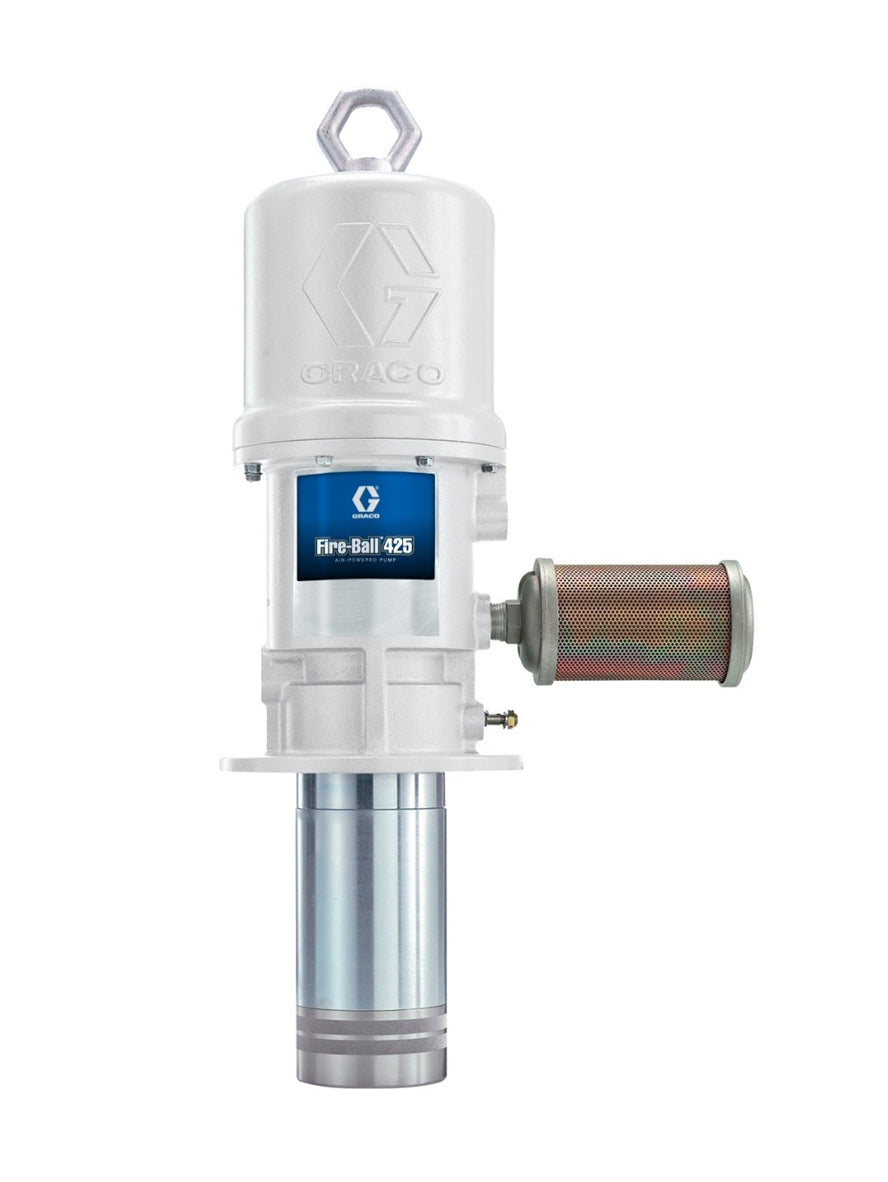

GRACO Fire Ball 425 Oil Pump Range
Typical Fluids Handled are Petroleum- and synthetic-based oils. Typical Applications are Lubricant transfer, Automotive dealerships, Heavy-duty dealerships, Fast lube centres, Fleet service facilities, Service shops, In-plant, Lube trucks and Mining. FEATURES: In-line design with fewer parts for less pump wear. Differential air motor ensures smooth...
$4,983
incl GST
SKU: 237526
Description
Product Range
| Code | Description |
|---|---|
| Pump Range | |
| 205626 | 10:1 Universal Oil Pump – Free Flow 15.4lpm |
| 238108 | 6:1 Universal Oil Pump – Free Flow 25.4lpm |
| 237526 | 3:1 Universal Oil Pump – Free Flow 50.6lpm |
| 222095 | 10:1 Oil Pump, 200L Drum, bung mount |
| 222065 | 10:1 Oil Pump, 200L Drum, cover mount |
| Pump Packages | |
| 225782 | 10:1 200L Drum Cover Mount, Pump, Hose Kit, Cover |
| 225786 | 10:1 200L Bung Mount, Pump, Hose Kit |
| 244847 | 10:1 Wall Mount, Pump, Hose Kit, Filter Regulator, Air+Fluid Shut Off Valve, Wall Mount Kit |
| 244628 | 6:1 Wall Mount, Pump, Hose Kit, Filter Regulator, Air+Fluid Shut Off Valve, Wall Mount Kit |
| 244846 | 3:1 Wall Mount, Pump, Hose Kit, Filter Regulator, Air+Fluid Shut Off Valve, Wall Mount Kit |
| 225853 | 10:1 Universal - Pump, Hose Kit |
| 3:1 | 6:1 | 10:1 | |
|---|---|---|---|
| Cycles per Gallon | 6 (1.6 liters) | 12 (3.2 liters) | 19.6 (5.2 liters) |
| Fluid Flow gal/min @ 80 cpm | 13.4 (50.6 liters) | 6.6 (25.3 liters) | 4.1 (15.4 liters) |
| Maximum Fluid Pressure | 540 psi (37 bar) | 1100 psi (76 bar) | 1800 psi (124 bar) |
| Air Motor Effective Diameter | 4.25 in (107.9 mm) | ||
| Air Operating Range | 40-180 psi (2.8-12 bar) | ||
| Approx. Air Use and Flow @ 100 psi and 80 cpm | 58 scfm @ 13.4 gpm (1.64 m3/min @ 50.6 lpm) | 49.5 scfm @ 6.8 gpm (.334 m3/min @ 25.7 lpm) | 32 scfm @ 4.1 gpm (.555 m3/min @ 15.4 lpm) |
| Wetted Materials | Steel, Polyurethane, Aluminum, Nitrile | ||
| Air Inlet Port Size | 1/2 in npt(f) | ||
| Fluid Inlet Port Size | 1-1/2 in npt(f) | ||
| Fluid Outlet Port Size | 3/4 in npt(f) | ||
| Line Length | Up to 250 ft (76.2 m) | Up to 500 ft (152.5 m) | Up to 750 ft (228.6 m) |
| Dispense Points | 3 to 4 | ||
| Annual Usage | Over 35,500 gal (132,000 l) | ||
| Typical Applications | High flow, low pressure maintenance facility dispensing motor oil, gear oil, automatic transmission fluid, hydraulic fluid |
| Packages | Cover-Mounted | Bung-Mounted | Universal | Wall-Mounted |
|---|---|---|---|---|
| Container Size | 55 gal (200 l) | Universal | ||
| Fire-Ball 425, 3:1 Package | – | – | – | 244846 (3) |
| Fire-Ball 425, 3:1 Pump | – | – | – | 237526 |
| Fire-Ball 425, 6:1 Package | – | – | – | 244628 (3) |
| Fire-Ball 425, 6:1 Pump | – | – | – | 238108 |
| Fire-Ball 425, 10:1 Package | 225782 (1) (2) | 225786 (1) (2) | 225853 (1) (2) | 244847 |
| Fire-Ball 425, 10:1 Pump | 222065 | 222095 | 205626 | 205626 |
| Hose/Fitting Kit | 222066 | 222068 | ||
| Fluid Hose | 6 ft x 3/4 in (1.8 m x 19.05 mm) | 1.5 ft x 3/4 in (0.5 m x 19.05 mm) | ||
| Air Hose | 6 ft x 1/2 in (1.8 m x 12.7 mm) | 1.5 ft x 1/2 in (0.5 m x 12.7 mm) | ||
| Cover | 200326 | – | – | – |
| Filter Regulator | – | – | – | 217072 |
| Air Shutoff Valve | – | – | – | 110225 |
| Fluid Shutoff Valve | – | – | – | 108537 |
| Wall Mount Bracket | – | – | – | 238245 |
| Instruction Manual | 307883 | 306520 | 309351 |
