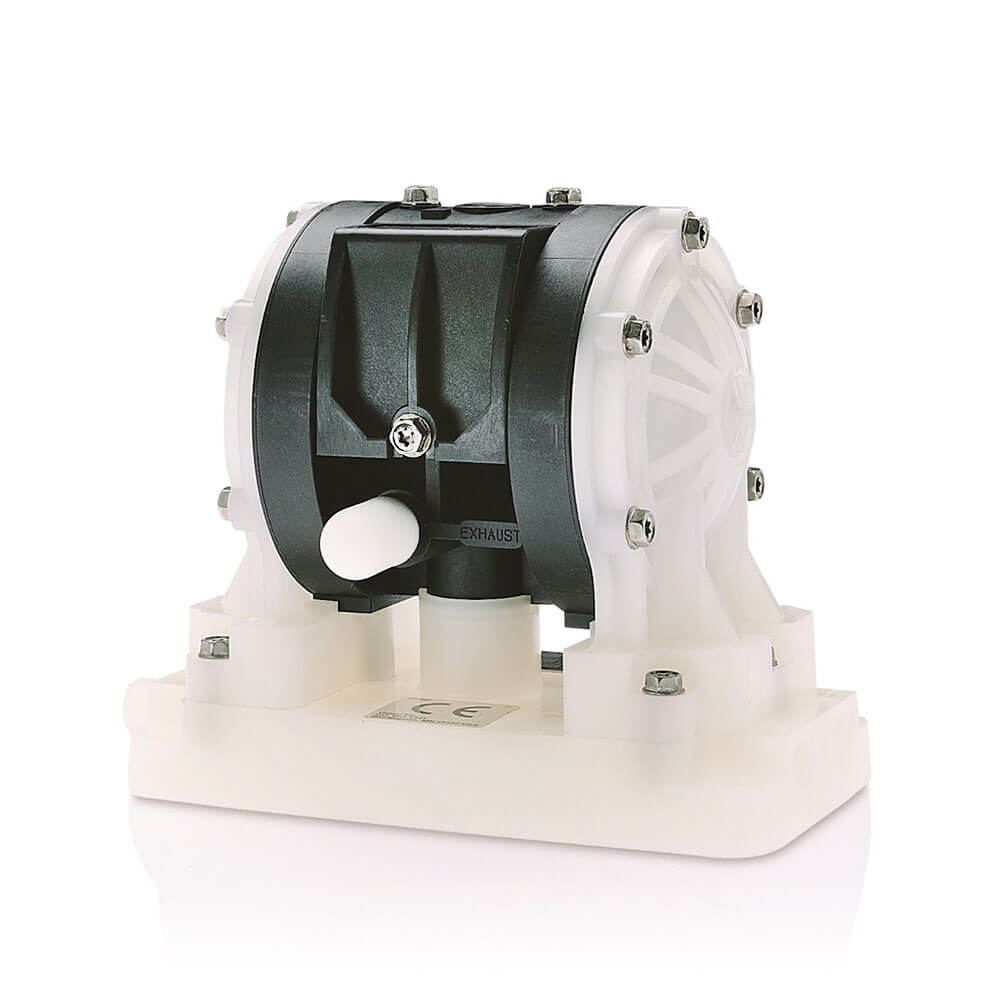

GRACO Husky 205 1/4" Air Operated Diaphragm Pumps

GRACO Husky 205 1/4" Air Operated Diaphragm Pumps

The Husky 205 air-operated diaphragm pump features spring check valves for superior priming in any mounting configuration. Max fluid working pressure: 7 bar, 0.7 MPa Max/min air pressure: 7 bar, 0.7 MPa/1.4 bar, 0.14 MPa Max fluid flow: 18.9 lpm Max pump speed: 320 (dry)...

$840

incl GST

SKU: D12096

Size

Description

The Husky 205 air-operated diaphragm pump features spring check valves for superior priming in any mounting configuration.

Max fluid working pressure: 7 bar, 0.7 MPa Max/min air pressure: 7 bar, 0.7 MPa/1.4 bar, 0.14 MPa Max fluid flow: 18.9 lpm Max pump speed: 320 (dry) cpm, 250 (wet) cpm Volume per stroke*: 23 cc Volume per cycle*: 46 cc Max suction lift dry: 2.5 to 3 m Max size pumpable solids: 1.5 mm Max operating temperature: 82°C Max air consumption: 3 Air inlet size**: 1/4 bsp(f ) Fluid inlet size**: 1/4 bsp(f ) Fluid outlet size**: 1/4 bsp(f ) Air exhaust port size**: 1/4 bsp(f ) ** Hybrid thread allows for either 1/4 npt or 1/4 bsp fitting.

BENEFITS:

  • True-formed PTFE and Santoprene diaphragms for enhanced performance.
  • Spring loaded checks allow the diaphragm pump to work in any orientation.
  • Inlet and Outlet are interchangeable.
  • Remote control option using an external controller.
  • 6.35 mm (1/4-in) end-porting double diaphragm pump.
