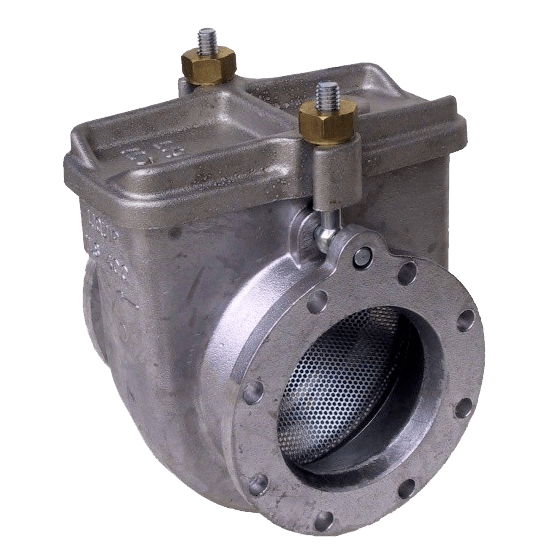

PETRO ILS400 - DN100 Strainer

In line strainer for 76mm and 102mm diameter flows. The PETRO ILS400 is a lightweight inexpensive aluminium suction

line strainer for larger pumps such as those fitted to large vehicles and prime movers for bulk industrial deliveries.

• Protects down stream equipment such as meters and pumps from debris and foreign objects.
• Strainer basket can only be fitted for correct direction of flow.
• Drain bosses provided in body and lid to suit any mounting angle.
• Simply remove lid by unscrewing 2 off lid retaining nuts and remove basket.
• Adjustment - None.
• Maximum vacuum to 90kPa.
• Maximum working pressure to 700kPa.
• All metal construction. Cast aluminium body & lid.
• Steel mesh with aluminium surround.
• Nitrile seal.
• Available to aviation standard on special order.
• Mount with arrow in correct flow direction.
• Made from cast aluminium – light (4.7kg) and has low pressure drop characteristics.
• 100mm (4”) TTMA flanged for easy installation.
• Access for cleaning is simple through the quickrelease lid.
• Available with a variety of filter mesh sizes.
