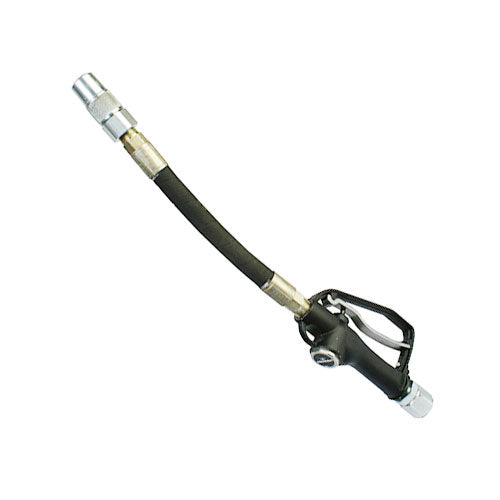

Macnaught HG100-01 High Flow Oil Control Gun 57lpm - PETRO

MACNAUGHT HG100-01 High Flow Oil Control Gun - 57lpm

FEATURES: Flexible 350 mm (14”) x 19mm (¾”) ID hose with manual nozzle. Latching trigger for ease of use. Trigger guard for protection. Lockable trigger for anti-theft security. Hanging hook. Balanced valve assembly allows maximum flow control. IM75 electronic oil meter (HG100-75 model only). Fully...
Fuel tank hire

Request a Quote

Description

FEATURES:

  • Flexible 350 mm (14”) x 19mm (¾”) ID hose with manual nozzle.
  • Latching trigger for ease of use.
  • Trigger guard for protection.
  • Lockable trigger for anti-theft security.
  • Hanging hook.
  • Balanced valve assembly allows maximum flow control.
  • IM75 electronic oil meter (HG100-75 model only).
  • Fully serviceable.
  • 10 year warranty and parts guarantee.

SPECIFICATIONS:

  • Compatible fluids: lubricating oils up to SAE 140, automatic transmission fluid and antifreeze/ anti-boil.
  • Wetted components: aluminium/zinc, mild steel, nitrile rubber.
  • Flow rate: up to 57 L/min (15 US gal/min).
  • Max. operating pressure: 10 350 kPa (1 500 psi, 103.5 bar).
  • Max operating temp: HG100 - 70ºC (158ºF) HG100-75 - 55ºC (131ºF).
  • Inlet swivel: ¾” BSP or NPT (F).
  • Weight (with fittings): 2.2 kg (5 lbs).
