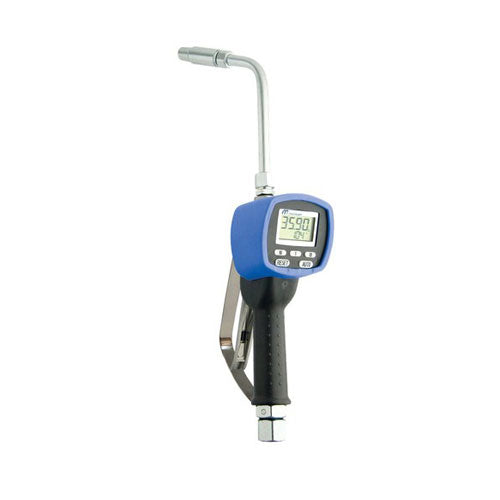

MACNAUGHT HG55-01 Electronic Oil Control Gun 30lpm

FEATURES:

• 5-digit resettable batch totaliser (19999).
• 6-digit accumulative totaliser.
• Sleep mode (2 minutes idle limit) to preserve battery life.
• EEPROM retention allows all information to be retained if batteries are removed.
• Oval gear mechanism for optimum accuracy.
• Automatic non-drip nozzle.
• Two outlet nozzle positions (in-line or 90 degrees).
• Rigid extension.
• Latching handle with trigger lock (non latching model available).
• Shock resistant.
• Fully serviceable.
• 10 year warranty and parts guarantee.

SPECIFICATIONS:

• Compatible fluids: lubricating oils up to SAE 140, automatic transmission fluid and anti-freeze/anti-boil.
• Wetted components: aluminium, acetal, steel, nitrile rubber.
• Accuracy: ± 0.5% of reading (lubricating oils).
• Flow range: 1-30 L/min (0.26 – 8 US gal/min).
• Max. pressure: 10 350 kPa (1 500 psi, 103.5 bar).
• Pressure loss: 100 kPa (14.4 psi, 1 bar) @ 12 L/min (3.2 US gal/min) (without nozzle)
• with calibration fluid.
• Weight: 1.16 kg (2.55 lbs).
• Swivel inlet: ½” BSP or NPT.
• Operating temp: 0°C (32°F) to 50°C (122°F).
• Storage temp: -10°C (14°F) to 60°C (140° F).
• Battery: 2 x 1.5 volt alkaline AA.

ACCESSORIES:

Contact PETRO industrial's team of bulk fuel storage and dispensing specialists for more information today!
