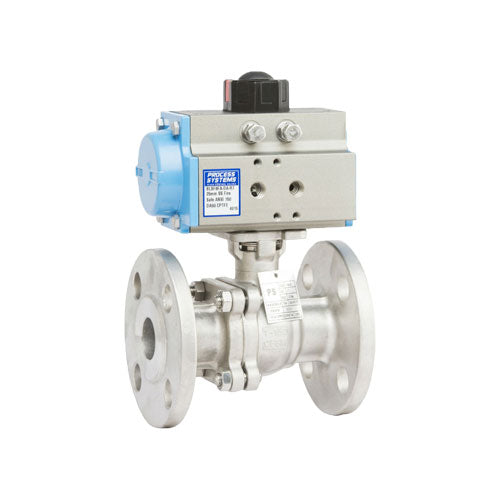

PETRO Actuated Ball Valves - 316 SS, 2 Piece Fire Safe Full Bore Flanged 150#

PETRO Industrial
SKU: BVSS150#-ACT-SUP1
Availability: Many in stock
$ POA
Trust Badge

PETRO Actuated Ball Valves - 316 SS, 2 Piece Fire Safe Full Bore Flanged 150#

Two piece two way ANSI 150 lb flanged fire safe approved ball valve, double acting pneumatic operation.

  • 316 Stainless Steel body, Graphite Filled PTFE seats, FKM backing ring, live loaded packing and anti static device.
  • Anodized aluminium actuator with visual indictor and namur interface.
  • Ball valve designed & manufactured to ANSI B16.34, face to face complies with ANSI B16.10, flange ends comply with ANSI B16.5 and testing and inspection according to API598.
  • Firesafe Approved API607 Sixth Edition, Cert. No 218781. Direct coupled anodiesed aluminium pneumatic double acting actuator with visual indicator. Media temp -20°C to 180°C.

SPECIFICATIONS:

Model

Size (mm)

DN

Actuator

Media Pressure

Media Temperature

Actuator Pressure

BLSF4FA-DA-RT

15

DA50

















Vacuum to 20 BAR

(10 BAR Steam)



















-20°C to 180°C



















6 to 8 Bar

BLSF5FA-DA-RT

20

DA50

BLSF6FA-DA-RT

25

DA50

BLSF7FA-DA-RT

32

DA63

BLSF8FA-DA-RT

40

DA63

BLSF9FA-DA-RT

50

DA75

BLSF10FA-DA-RT

63

DA88

BLSF11FA-DA-RT

80

DA100

BLSF12FA-DA-RT

100

DA115

BLSF13FA-DA-RT

125

DA145

BLSF14FA-DA-RT

150

DA160

BLSF15FA-DA-RT

200

DA180

BLSF16FA-DA-RT

250

DA200

BLSF17FA-DA-RT

300

DA240



Valve Details

  • Pressure Rating: 20 BAR W.O.G - Vacuum - 10 BAR Steam using RL Seat Material.
  • Temperature Range: -20degC to 180degC.
  • Body - 2 piece 316 SS - ASTM A351 - CF8M.
  • Seat: PTFE.
  • Flange: ANSI B16.5 class 150.
  • Face to face: ANSI B16.10.
  • Blow-out proof stem.

Electric Acutator Details

  • Thermal overload protection.
  • Duty Rate 30% maximum.
  • Cycle times will vary with actuator size and voltage.
  • Max. ambient temp. +5°c to +60°c.
  • Plastic and aluminium housing to IP67.
  • Manual override on most models.
  • For actuator details see ‘OM’ data sheet.
  • IP65 protection when mounted with drive shaft downwards or horizontal.
  • Never mount actuator with drive uppermost.
  • Approved against radio noise transmission.

Pneumatic Actuator Details

  1. Double Acting Pneumatic (Air to Open and Close).
  2. Spring Return Pneumatic (Air to Open and Spring to Close).
