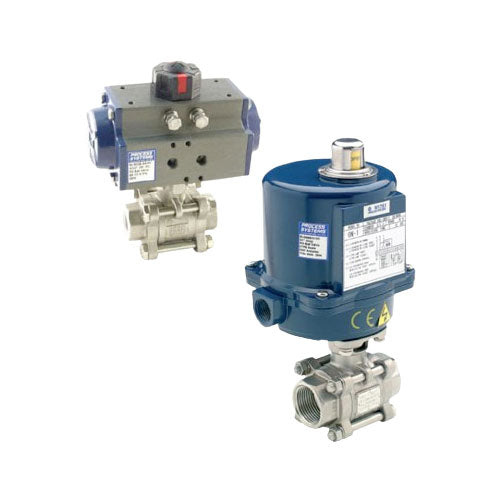

PETRO Actuated Ball Valves - F316 SS, Full Bore Scr BSP
Range of Double Acting Air, Spring Return Air or Electric Actuated Ball Valves.
- High performance 3 piece stainless steel ball valve.
- Pneumatically actuated, double acting.
- 15mm to 100mm bore fitted with high temperature, carbon filled PTFE seats.
- Body connections either threaded (standard), butt weld, socket weld or flanged.
- Teflon - Has a wide range of chemical compatibility (consult factory).
- Typical applications include water treatment, chemical, marine, petrochemical and steam service.
- Media Pressure - 70 Bar W.O.G. - Vacuum - 10 Bar Steam using RT Seat.
- Media Temperature - -20deg C to 180 deg C.
- Actuator Air Pressure - 6-8 Bar.
- Materials of Construction.
- Body - 3 piece 316 SS
- Seats - Filled PTFE
- Threads - BSP Female Scr
- Optional End Connections
- Flanges
- Buttweld
- Socketweld
- NPT Threads
Double Acting Pneumatic (Air to Open and Close) – SPECIFICATIONS:
|
Model |
Size BSP |
Orifice (mm) |
Actuator |
Media Pressure |
Media Temperature |
Actuator Pressure |
|
BLS2B-DA-RT |
1/4 |
8 |
DA52 |
-1 to 70 BAR (10 BAR Steam) |
-20°C to 180°C |
6 to 8 Bar |
|
BLS3B-DA-RT |
3/8 |
10 |
DA52 |
|||
|
BLS4B-DA-RT |
1/2 |
15 |
DA52 |
|||
|
BLS5B-DA-RT |
3/4 |
20 |
DA52 |
|||
|
BLS6B-DA-RT |
1 |
25 |
DA52 |
|||
|
BLS7B-DA-RT |
1 1/4 |
32 |
DA63 |
|||
|
BLS8B-DA-RT |
1 1/2 |
40 |
DA63 |
|||
|
BLS9B-DA-RT |
2 |
50 |
DA75 |
|||
|
BLS10B-DA-RT |
2 1/2 |
65 |
DA85 |
|||
|
BLS11B-DA-RT |
3 |
80 |
DA100 |
|||
|
BLS12B-DA-RT |
4 |
100 |
DA115 |
Spring Return Pneumatic (Air to Open & Spring to Close) - SPECIFICATIONS:
|
Model |
Size BSP |
Orifice (mm) |
Actuator |
Media Pressure |
Media Temperature |
Actuator Pressure |
|
BLS52B-SR-RT |
1/4 |
8 |
SR52 |
-1 to 70 BAR (10 BAR Steam) |
-20°C to 180°C |
6 to 8 Bar |
|
BLS53B-SR-RT |
3/8 |
10 |
SR52 |
|||
|
BLS54B-SR-RT |
1/2 |
15 |
SR52 |
|||
|
BLS55B-SR-RT |
3/4 |
20 |
SR52 |
|||
|
BLS56B-SR-RT |
1 |
25 |
SR63 |
|||
|
BLS57B-SR-RT |
1 1/4 |
32 |
SR75 |
|||
|
BLS58B-SR-RT |
1 1/2 |
40 |
SR85 |
|||
|
BLS59B-SR-RT |
2 |
50 |
SR85 |
|||
|
BLS510B-SR-RT |
2 1/2 |
65 |
SR100 |
|||
|
BLS511B-SR-RT |
3 |
80 |
SR115 |
|||
|
BLS512B-SR-RT |
4 |
100 |
SR125 |
Electrically Actuated (On/Off and Modulating) - SPECIFICATIONS:
|
Model |
Size BSP |
Orifice (mm) DN |
Actuator |
Media Pressure |
Media Temperature |
|
BLS2B-E*-RT |
1/4 |
8 |
0M-1 |
-1 to 70 BAR (10 BAR Steam) |
-20°C to 180°C |
|
BLS3B-E*-RT |
3/8 |
10 |
0M-1 |
||
|
BLS4B-E*-RT |
1/2 |
15 |
0M-1 |
||
|
BLS5B-E*-RT |
3/4 |
20 |
0M-1 |
||
|
BLS6B-E*-RT |
1 |
25 |
0M-1 |
||
|
BLS7B-E*-RT |
1 1/4 |
32 |
0M-1 |
||
|
BLS8B-E*-RT |
1 1/2 |
40 |
0M-A |
||
|
BLS9B-E*-RT |
2 |
50 |
0M-A |
||
|
BLS10B-E*-RT |
2 1/2 |
65 |
0M-2 |
