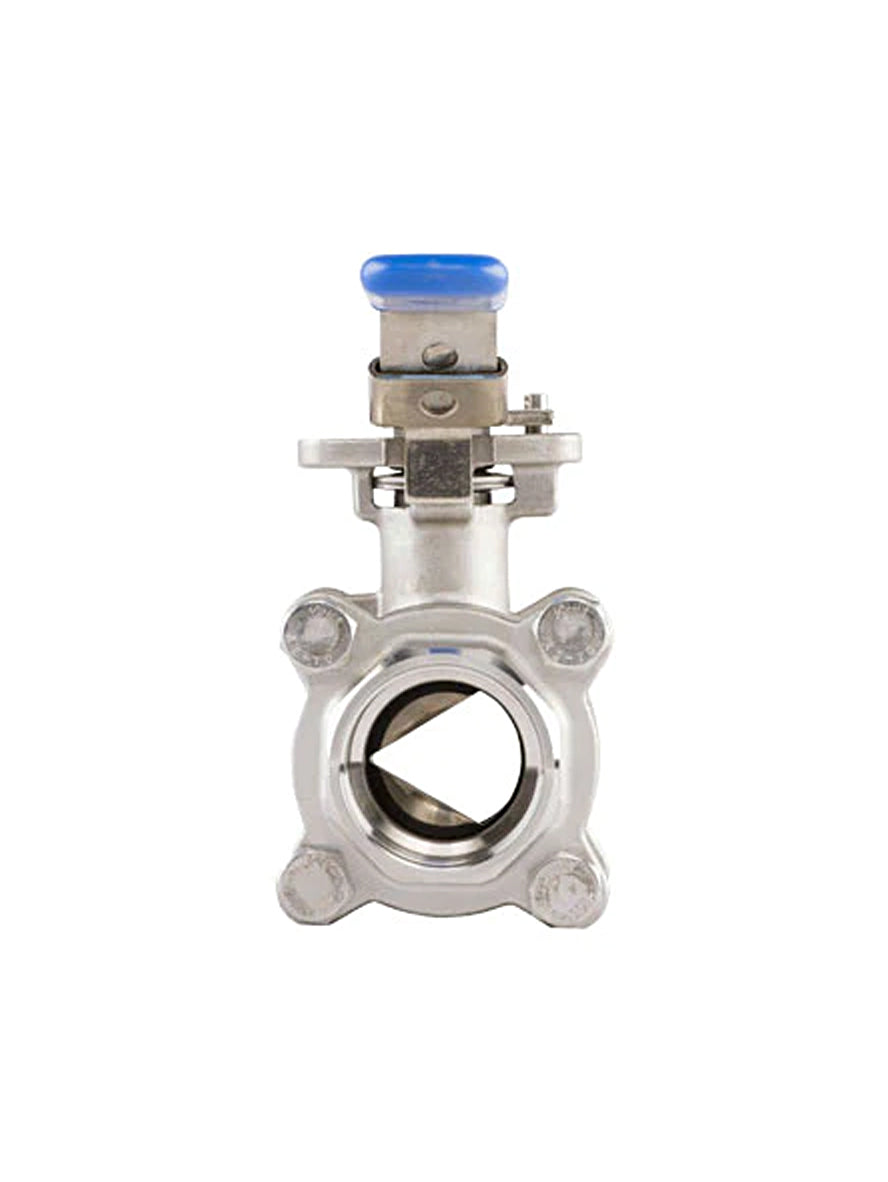

PETRO Ball Valve - 316 SS, V Port Control, 3 Piece Full Bore Scr BSP Manual

High performance 3 piece full bore 316 Stainless Steel 60 degree V port ball valve with BSP threaded connections.

FEATURES:

  • Self adjusting stem packing assembly with belleville spring for temperature fluctuations and vibration.
  • Pre drilled metric hole on ISO5211 direct mounting pad to minimise any thermal transfer from valve to actuator.
  • Reinforced PTFE seats for temperatures up to 180°C.
  • Typically used in situations where a finer degree of flow control is needed.
  • Comes with lockable handle.
  • Can be direct mounted with a modulating electric actuator or a spring return or double acting pneumatic actuator with a electro-pneumatic positioner to give positioning.

PRODUCT RANGE:

Model

Size (BSP)

Size (mm)

Media Pressure

Media Temperature

Material of Construction

BLV2B-L-RT

1/4

8













Vacuum to 70 BAR

[10 BAR Steam]















-20°C to 180°C











3 piece, 316 SS Body

RTFE seat (reinforced Teflon)

60 degree V port

BLV3B-L-RT

3/8

10

BLV4BT60-L-RT

1/2

15

BLV5BT60-L-RT

3/4

20

BLV6BT60-L-RT

1

25

BLV7BT60-L-RT

1 ¼

32

BLV8BT60-L-RT

1 ½

40

BLV9BT60-L-RT

2

50

BLV10BT60-L-RT

2 ½

65

BLV11BT60-L-RT

3

80

BLV12BT60-L-RT

4

100



Contact PETRO industrial's team of bulk fuel storage and dispensing specialists for more information today!
