PETRO Standard Butterfly Valves - 316 SS, T/E Manual, Air & Electric Operated
Common applications include food industry, chemicals, pharmaceuticals and other industrial applications.
- The BFS series of butterfly valve has a 316 Stainless Steel body, PTFE coated 316 S.S disc and a PTFE coated EPDM seat making them suited to a wide range of high end applications.
- These wafer butterfly valves will fit all standard flanges and are operated by either a lever or gear box.
- The unique bonded cartridge design gives them a longer life span, allow vacuum to be run through them and makes them replaceable if ever the need should arise.
- If sizes above 300mm are required please contact us.

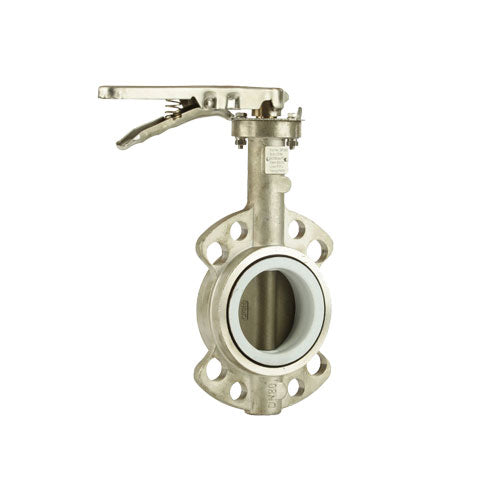

Stainless Steel Manual Specifications:
|
Model |
Size (mm) |
Pressure Range |
Temperature |
Square drive size |
ISO Mtg |
|
BFS50-L-E |
50 |
0 to 16 Bar |
-10°C to 120°C |
9mm |
F05 |
|
BFS65-L-E |
65 |
0 to 16 Bar |
-10°C to 120°C |
9mm |
F05 |
|
BFS80-L-E |
80 |
0 to 16 Bar |
-10°C to 120°C |
9mm |
F05 |
|
BFS100-L-E |
100 |
0 to 16 Bar |
-10°C to 120°C |
11mm |
F07 |
|
BFS125-L-E |
125 |
0 to 16 Bar |
-10°C to 120°C |
14mm |
F07 |
|
BFS150-L-E |
150 |
0 to 16 Bar |
-10°C to 120°C |
14mm |
F07 |
|
BFS200-L-E |
200 |
0 to 16 Bar |
-10°C to 120°C |
17mm |
F10 |
|
BFS250-L-E |
250 |
0 to 16 Bar |
-10°C to 120°C |
22mm |
F10 |
|
BFS300-L-E |
300 |
0 to 16 Bar |
-10°C to 120°C |
22mm |
F10 |
Stainless Steel Doubling Acting Specifications:
|
Model |
Size (mm) |
Actuator |
Media Pressure |
Media Temperature |
Actuator Pressure |
|
BFS50-DA-T |
50 |
DA63 |
Vacuum to 10 BAR |
-20°C to 120°C |
6 to 8 BAR |
|
BFS65-DA-T |
65 |
DA75 |
Vacuum to 10 BAR |
-20°C to 120°C |
6 to 8 BAR |
|
BFS80-DA-T |
80 |
DA75 |
Vacuum to 10 BAR |
-20°C to 120°C |
6 to 8 BAR |
|
BFS100-DA-T |
100 |
DA88 |
Vacuum to 10 BAR |
-20°C to 120°C |
6 to 8 BAR |
|
BFS125-DA-T |
125 |
DA100 |
Vacuum to 10 BAR |
-20°C to 120°C |
6 to 8 BAR |
|
BFS150-DA-T |
150 |
DA115 |
Vacuum to 10 BAR |
-20°C to 120°C |
6 to 8 BAR |
|
BFS200-DA-T |
200 |
DA125 |
Vacuum to 10 BAR |
-20°C to 120°C |
6 to 8 BAR |
|
BFS250-DA-T |
250 |
DA160 |
Vacuum to 10 BAR |
-20°C to 120°C |
6 to 8 BAR |
|
BFS300-DA-T |
300 |
DA180 |
Vacuum to 10 BAR |
-20°C to 120°C |
6 to 8 BAR |

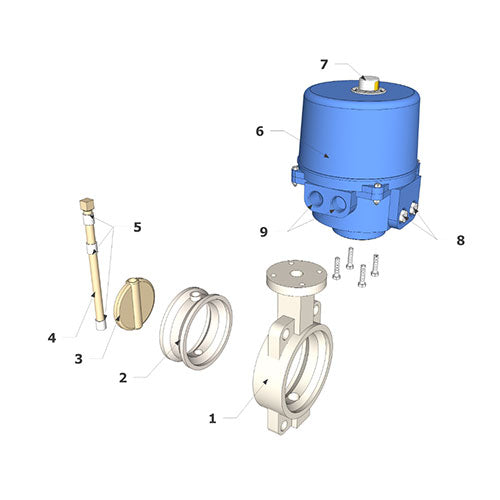

Stainless Steel Electric Specifications:
|
Model |
Size (mm) |
Actuator |
Media Pressure |
Media Temperature |
|
BFS50-E*-T |
50 |
0M-1 |
Vacuum to 10 BAR |
-20°C to 120°C |
|
BFS65-E*-T |
65 |
0M-1 |
Vacuum to 10 BAR |
-20°C to 120°C |
|
BFS80-E*-T |
80 |
0M-A |
Vacuum to 10 BAR |
-20°C to 120°C |
|
BFS100-E*-T |
100 |
0M-2 |
Vacuum to 10 BAR |
-20°C to 120°C |
|
BFS125-E*-T |
125 |
0M-3 |
Vacuum to 10 BAR |
-20°C to 120°C |
|
BFS150-E*-T |
150 |
0M-4 |
Vacuum to 10 BAR |
-20°C to 120°C |
|
BFS200-E*-T |
200 |
0M-4 |
Vacuum to 10 BAR |
-20°C to 120°C |
|
BFS250-E*-T |
250 |
0M-6 |
Vacuum to 10 BAR |
-20°C to 120°C |
|
BFS300-E*-T |
300 |
0M-7 |
Vacuum to 10 BAR |
-20°C to 120°C |
*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC
