PETRO Solar Panel Kit

PETRO Industrial
SKU: SOLAR-PANEL-KIT
$ POA
Trust Badge

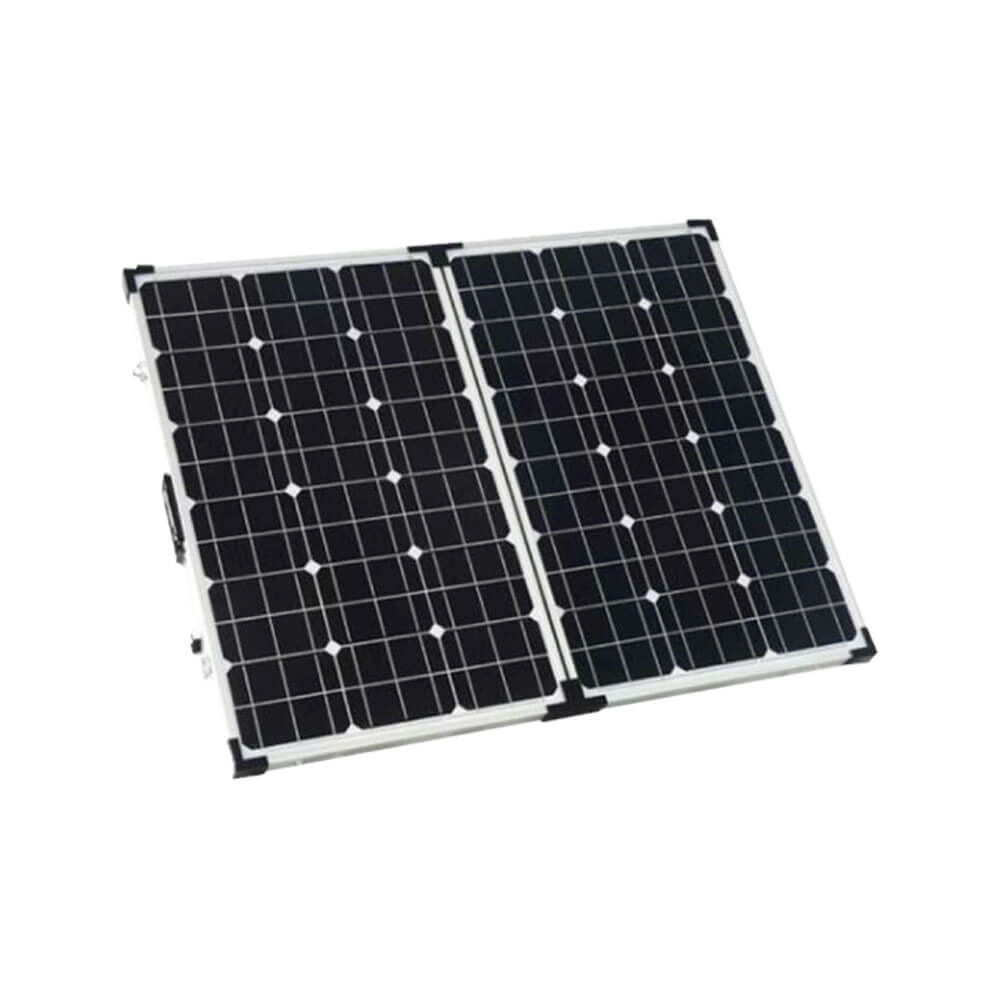

PETRO Solar Panel Kit

This PETRO Industrial Solar Panel kit is to be used on the PETRO Trailer or PETRO Self Bunded Tank to power a PETRO 12V DC Pump kit.

KIT COMPONENTS:

  • 2 x   CNPV 50W 12V Solar Panel.
  • 1 x   Regulator 12V 10amp - PWMLVD.
  • 1 x   Volt Meter 10V-16V Expanded Scale.
  • 1 x   Fuse 10amp Plastic Circuit Breaker.
  • 4 x   Cable Gland 5-10mm Carroll.
  • 10 x   Connectors.
  • 2 x   Brackets to suit Solar Panel.
  • 4 x   Cable 6mm Sq-C25.
  • 4 x   Convoluted Tube 13mm - CT13.
  • 2 x   Fuse 10amp.
  • 1 x   Ritar 12V 120Ahr Deep Cycle Battery.
  • 1 x   Large Battery Box.
  • 1 x   12V Automatic Battery Charger 2/4/8 AMP.

SCORPION SGP-50W POLY SOLAR PANEL:

Electrical Data



SGP-50W

SGP-100W

Module Size

mm

670 x 540 x 25

670 x 1005 x 35

Weight

kg

4.5

8.5

Nominal Peak Power (WP)

W

50

100

Nominal Voltage

V

18

18

Nominal Current

A

2.78

5.56

Open-Circuit Voltage (Voc)

V

21.6

21.6

Short-circuit Current (l sc)

A

3

6

Cell Conversion Efficiency



17.10%

17.10%

Operating Temperature



-40 to +85°C

-40 to +85°C

Max System Voltage

V

1000V DC

1000V DC



BLUE SMART – IP65 12V BATTERY CHARGER:

With up to 95% efficiency, these chargers generate up to four times less heat when compared to the industry standard. And once the battery is fully charged, power consumption reduces to 0,5 Watt, some five to ten times better than the industry standard.

Durable, safe and silent

  • Low thermal stress on the electronic components.
  • Protection against ingress of dust, water and chemicals.
  • Protection against overheating: the output current will reduce as temperature increases up to 60°C, but the charger will not fail.
  • The chargers are totally silent: no cooling fan or any other moving parts.

Features:

  • Water, dust and chemical resistant.
  • Seven step smart charge algorithm.
  • Recovery of fully discharged ‘dead’ batteries.
  • Automatic power supply function.
  • Severe cold performance: down to -30°C.
  • Several other battery life enhancing features.
  • Low power mode to charge smaller batteries.
  • Li-ion battery mode.
  • Setup and configure, readout of voltage and current by Bluetooth Smart.



12 V 4/5/7/10/15 A

24 V 5/8 A

Input voltage range

180-265 VAC

Efficiency

94%

95%

Standby power consumption

0,5 W

Charge voltage 'absorption'

Normal: 14,4 V

High: 14,7 V

Li-ion: 14,2 V

Normal: 28,8 V

High: 29,4 V

Li-ion: 28,4 V

Charge voltage 'float'

Normal: 13,8 V

High: 13,8 V

Li-ion: 13,5 V

Normal: 27,6 V

High: 27,6 V

Li-ion: 27,0 V

Charge voltage 'storage'

Normal: 13,2 V

High: 13,2 V

Li-ion: 13,5 V

Normal: 26,4 V

High: 26,4 V

Li-ion: 27,0 V

Charge current

4 / 5 / 7 / 10 / 15 A

5 / 8 A

Low current mode

2 / 2 / 2 / 3 / 4 A

2 / 3 A

Temperature compensation

(lead-acid batteries only)

16 mV/ºC

32 mV/ºC

Can be used as power supply

Yes

Back current drain

0,7 Ah/month (1 mA)

Protection

Reverse polarity          Output short circuit

Over temperature

Operating temp. range

-30 to +50°C (full rated output up to 30°C) (cables retain flexibility at low temperature)

Humidity (non-condensing)

Max 95%

ENCLOSURE

Battery-connection

Black and red cable of 1,5 meter with 20 A DC connector, clamps and M8 eyelets

230 V AC-connection

Cable of 1,5 meter with CEE 7/17, BS 1363 plug (UK) or AS/NZS 3112 plug

Protection category

IP65 (splash and dust proof)

Weight

0,9 kg

0,9 kg

Dimensions (h x w x d)

12/7: 47x95x190mm

Other: 60x105x190mm

24/5: 47x95x190mm

Other: 60x105x190mm

STANDARDS

Safety

EN 60335-1, EN 60335-2-29

Emission

EN 55014-1, EN 61000-6-3, EN 61000-3-2

Immunity

EN 55014-2,EN 61000-6-1, EN 61000-6-2, EN 61000-3-3



VICTRON CONNECT APP:

Setup, readout and configure your Blue Smart IP65 Charger via your smartphone. You can display the status of your charger and battery and even control the functions of your charger using the VictronConnect app. On your screen the readout of voltage and current is default available. Download your app for iOS and Android here at: https://www.victronenergy.com/live/victronconnect.

RA12-1205 RITAR BATTERY (12V1  15Ah):

RA series is a general purpose battery with 10 years design life in float service. It meets with IEC, JIS and BS standards .With up-dated AGM valve regulated technology and high purity raw materials, the RA series battery maintains high consistency for better performance and reliable standby service life. It is suitable for UPS/EPS, medical equipment, emergency light and security system applications.

BATTERY SPECIFICATIONS:

Cells Per Unit

6

Voltage Per Unit

12

Capacity

115Ah@10hr-rate to 1.80V per cell @25°C

Weight

Approx. 32.0 Kg (Tolerance±2%)

Max. Discharge Current

1150A (5 sec)

Internal Resistance

Approx. 4.2 mΩ

Operating Temperature Range

Discharge: -20°C~60°C

Charge: 0°C~50°C

Storage: -20°C~60°C

Normal Operating Temperature Range

25°C ± 5°C

Float charging Voltage

13.6 to 13.8 VDC/unit Average at 25°C

Recommended Maximum Charging Current

34.5A

Equalization and Cycle Service

14.6 to 14.8 VDC/unit Average at 25°C

Self Discharge

RITAR Valve Regulated Lead Acid (VRLA) batteries can be stored for more than 6 months at 25°C. Self-discharge ratio less than 3% per month at 25°C. Please charge batteries before using.

Terminal

Terminal F5/F12

Container Material

A.B.S. UL94-HB, UL94-V0 Optional.



MORNINGSTAR SUNSAVER SOLAR CONTROLLER:

  • Extremely High Reliability
  • Failure rate of less than 1 per 1,000 shipped (<0.1%).
  • 100% solid state. Power MOSFET design.
  • Manufactured in an ISO 9000 factory.
  • 100% pre-shipment functional testing.

Longer Battery Life

  • Advanced PWM charging.
  • Series design (not shunt) for cool operation.
  • 4-stage charging: bulk, absorption, float, equalize.
  • Optimized sealed or flooded battery set points.
  • Temperature compensated charging.
  • Low voltage load disconnect on several versions.

Designed for Harsh Environments

  • Temperature rating of –40°C to +60°C.
  • Epoxy encapsulation for protection against humidity and dust ingress.
  • Corrosion protection: marine rated terminals and anodized aluminum case.
  • Certified for use in hazardous locations.

Easy to Install and Use

  • Factory pre-sets result in no required install settings.
  • Electronic protections prevent damage from wiring mistakes.
  • Fully automatic operation and fault recovery.
  • LED’s display extensive information about status, faults and battery condition.

SunSaver Versions



Solar

Current

Load

Current

System

Voltage

LVD

SS-6-12V

6A

6A

12V

No

SS-6L-12V

6A

6A

12V

Yes

SS-10-12V

10A

10A

12V

No

SS-10L-12V

10A

10A

12V

Yes

SS-10L-24V

10A

10A

24V

Yes

SS-20L-12V

20A

20A

12V

Yes

SS-20L-24V

20A

20A

24V

Yes



Contact PETRO industrial's team of bulk fuel storage and dispensing specialists for more information today!
