PIUSI K500 Preset Electronic Oil Nozzle

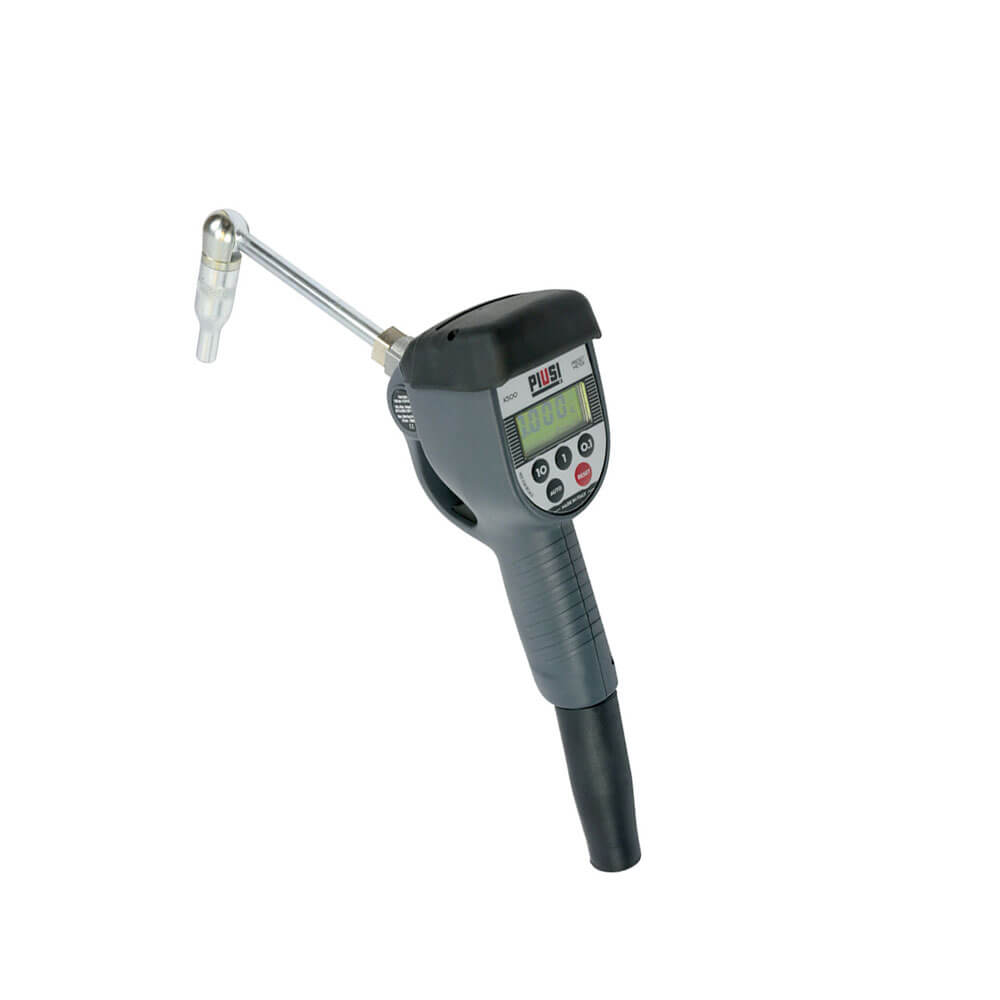

PIUSI K500 Preset Electronic Oil Nozzle

The Piusi K500 Preset Oil Nozzle is designed to perform the pre-selected dispensing of oil through use of its automatic spout. Using this spout, the meter incorporated in the nozzle, automatically closes the valve when the pre-selected quantity has been dispensed.

These Piusi oil nozzles have a trigger protection to prevent accidental operation outside of the pre-select dispense, and a pressure moulded body that is resistant to high pressures.

• Flow rate: 1 - 30 lpm.
• Accuracy: +/- 0.5 %.
• Repeatability: 0.2 %.
• Viscosity: 5 - 2000 cSt.
• Max. pressure: 70 bar / 994 psi.
• Min. presettable quantity 0.1 litres, max. 99.9 litres.
• Indication of the quantity dispensed with diver - if unit of measurement.

FOR MORE INFO DOWNLOAD DATA SHEET
