PIUSI Flow Meter K700M - 40mm (1.5") Inlet / Outlet. Mechanical Register

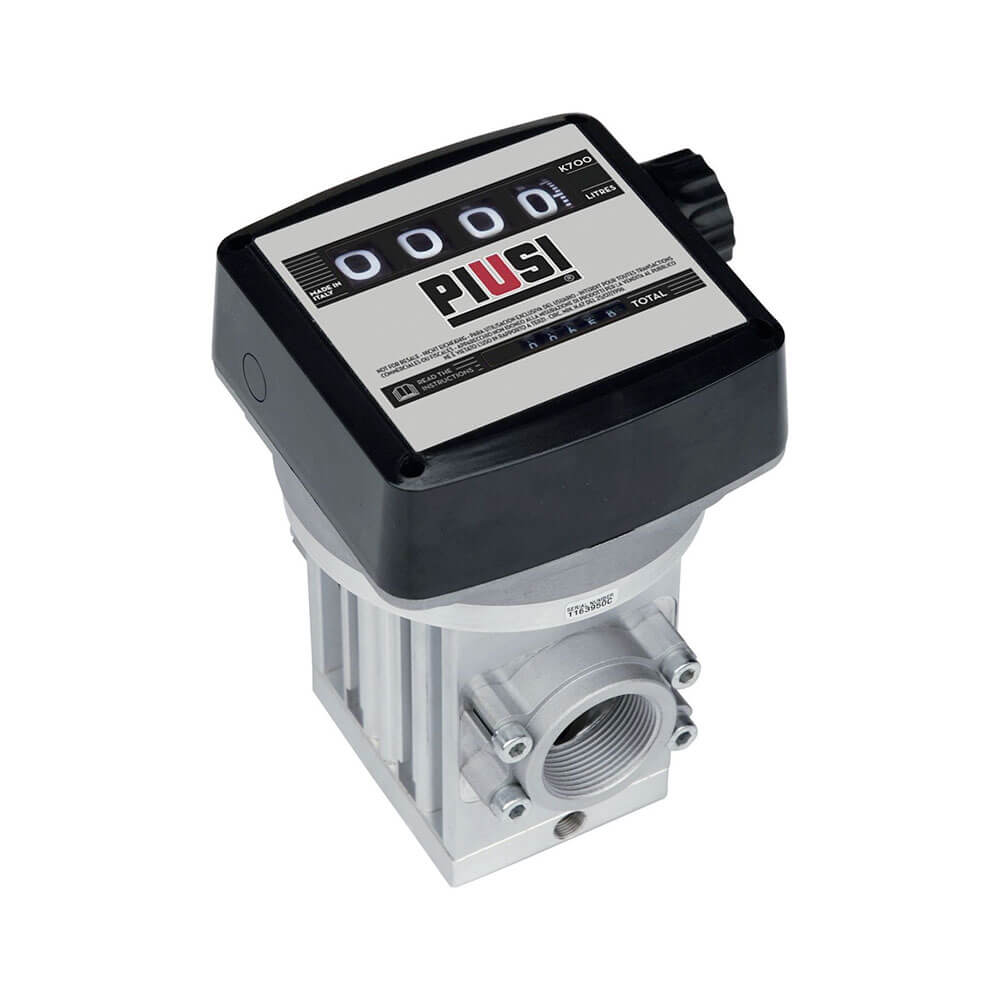

PIUSI K700M Flow Meter 40mm (1.5") Inlet / Outlet. Mechanical Register

The K700 mechanical flow meter uses an oval gear system to accurately measure the amount of diesel or oil dispensed, even at higher flow rates. This fuel flow meter can count up to 9999.9 litres and has an 8 digit totaliser. K700 diesel flow meters are cost effective, as well as being for use with pumping systems, these Piusi diesel and oil flow meters are also suitable to be used under gravity flow conditions.

• Oil and diesel flow meter
• Flow rate: 20-220ltr Per Min
• Can be rotated to allow flow from 4 directions
• 1 ½” F x F BSP Flanged Inlet/Outlet
• Oval gear system
• Accuracy +/-1% after calibration
• 4 digit resettable and 8 digit non-resettable totaliser

Thread Options

• BSP Female
• NPT Female

Flow Direction

• From Left to Right
• From Right to Left

Unit of Measure

• Litres
• US Gallons
