PETRO SOLENOID Valve EX’D’ Rated - Flameproof Scr BSP

PETRO Industrial
SKU: B55ED/S55ED-SUP1
$ POA

📞 Call for A Quote!
Trust Badge

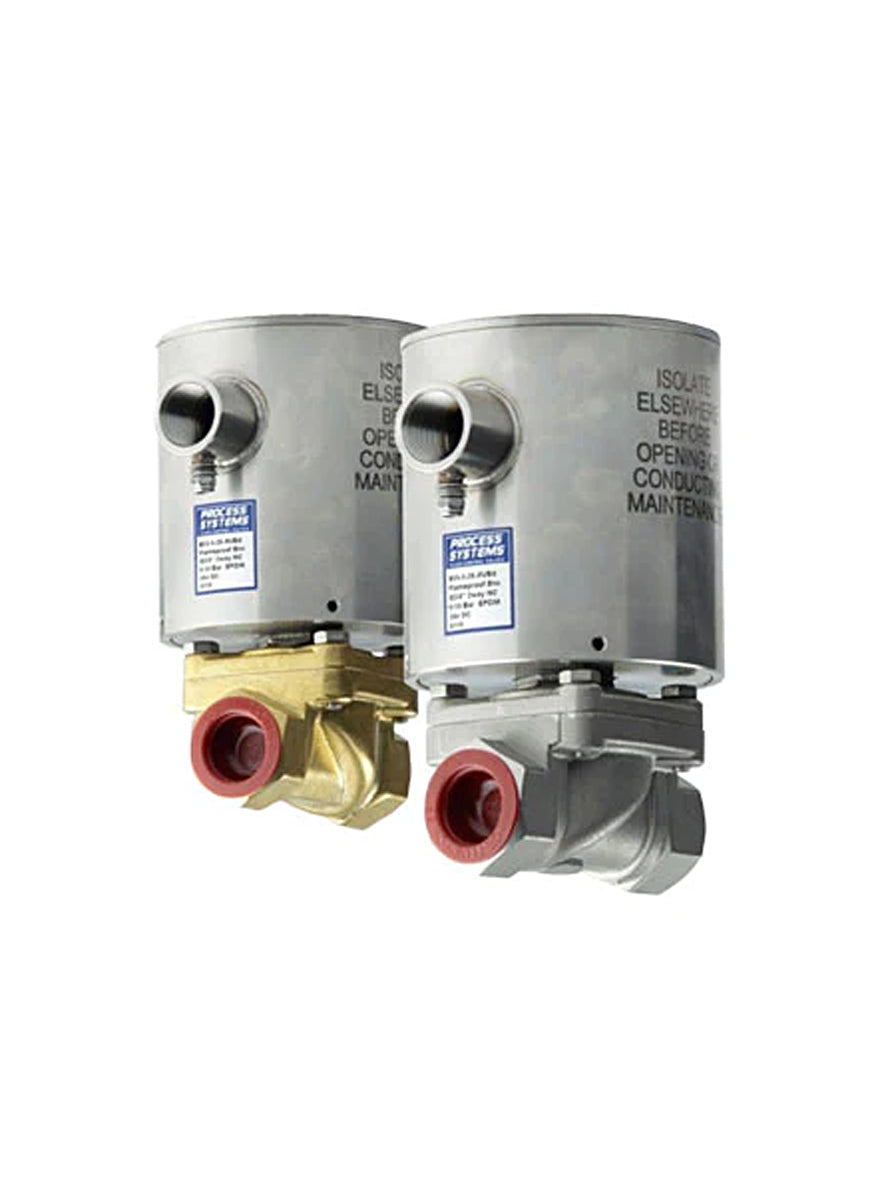

PETRO SOLENOID Valve EX'D' Rated - Flameproof Scr BSP

Ideal for hazardous area environments.  Carry the following approvals; Ex d I Mb, Ex d II T5 Gb, Ex tb IIIC T85 c Db IP66, IECEx SIM 13.0009.

FEATURES:

  • EX ‘D’ Rated - Flameproof.
  • Normally Closed - Power to Open.
  • Viton seat.
  • 0-10 BAR pressure range.
  • Vacuum to 27”Hg.
  • Media temperature range of -10°C to 40°C.
  • Scr BSP.
  • IP66 Weatherproof Rated.
  • Pressure Rating AC Power - 0 - 10 bar.
  • Pressure Rating DC Power - 0 - 7 bar.
  • Temperature -10 to 40ºC.
  • Choice of Brass or 316 Stainless Steel Body.
  • Viton Seals.
  • Stainless Steel Electrical Housing.

BRASS RANGE:

Model

Port Size BSP

Orifice Ømm

CV

Media Pressure

Media Temperature

B55ED-3-4-*V





3/8

4

0.58

0 to 10 BAR



















-10ºC to 40ºC

B55ED-3-6-*V

6

0.79

0 to 5 BAR

B55ED-3-8-*V

8

0.97

0 to 2 BAR

B55ED-4-6-*V



1/2

6

0.79

0 to 5 BAR

B55ED-4-8-*V

8

0.97

0 to 2 BAR

B55ED-3-15-*V

3/8

15

4.50

0 to 10 BAR

B55ED-4-15-*V

1/2

15

4.50

0 to 10 BAR

B55ED-5-20-*V

3/4

20

9.30

0 to 10 BAR

B55ED-6-25-*V

1

25

13.2

0 to 10 BAR

B55ED-7-35-*V

1 1/4

35

26.0

0 to 10 BAR

B55ED-8-35-*V

1 1/2

35

26.0

0 to 10 BAR

B55ED-9-50-*V

2

50

48.0

0 to 7 BAR

    316 STAINLESS STEEL RANGE:

    Model

    Port Size BSP

    Orifice Ømm

    CV

    Media Pressure

    Media Temperature

    S55ED-3-4-*V





    3/8

    4

    0.58

    0 to 10 BAR

















    -10ºC to 40ºC

    S55ED-3-6-*V

    6

    0.79

    0 to 5 BAR

    S55ED-3-8-*V

    8

    0.97

    0 to 2 BAR

    S55ED-4-6-*V



    1/2

    6

    0.79

    0 to 5 BAR

    S55ED-4-8-*V

    8

    0.97

    0 to 2 BAR

    S55ED-3-15-*V

    3/8

    15

    4.50

    0 to 10 BAR

    S55ED-4-15-*V

    1/2

    15

    4.50

    0 to 10 BAR

    S55ED-5-20-*V

    3/4

    20

    9.30

    0 to 10 BAR

    S55ED-6-25-*V

    1

    25

    13.2

    0 to 10 BAR

    S55ED-7-35-*V

    1 1/4

    35

    26.0

    0 to 10 BAR

    S55ED-8-35-*V

    1 1/2

    35

    26.0

    0 to 10 BAR

    S55ED-9-50-*V

    2

    50

    48.0

    0 to 7 BAR

    *Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC

    DOWNLOAD THE DATA SHEET FOR MORE DETAILED INFORMATION
