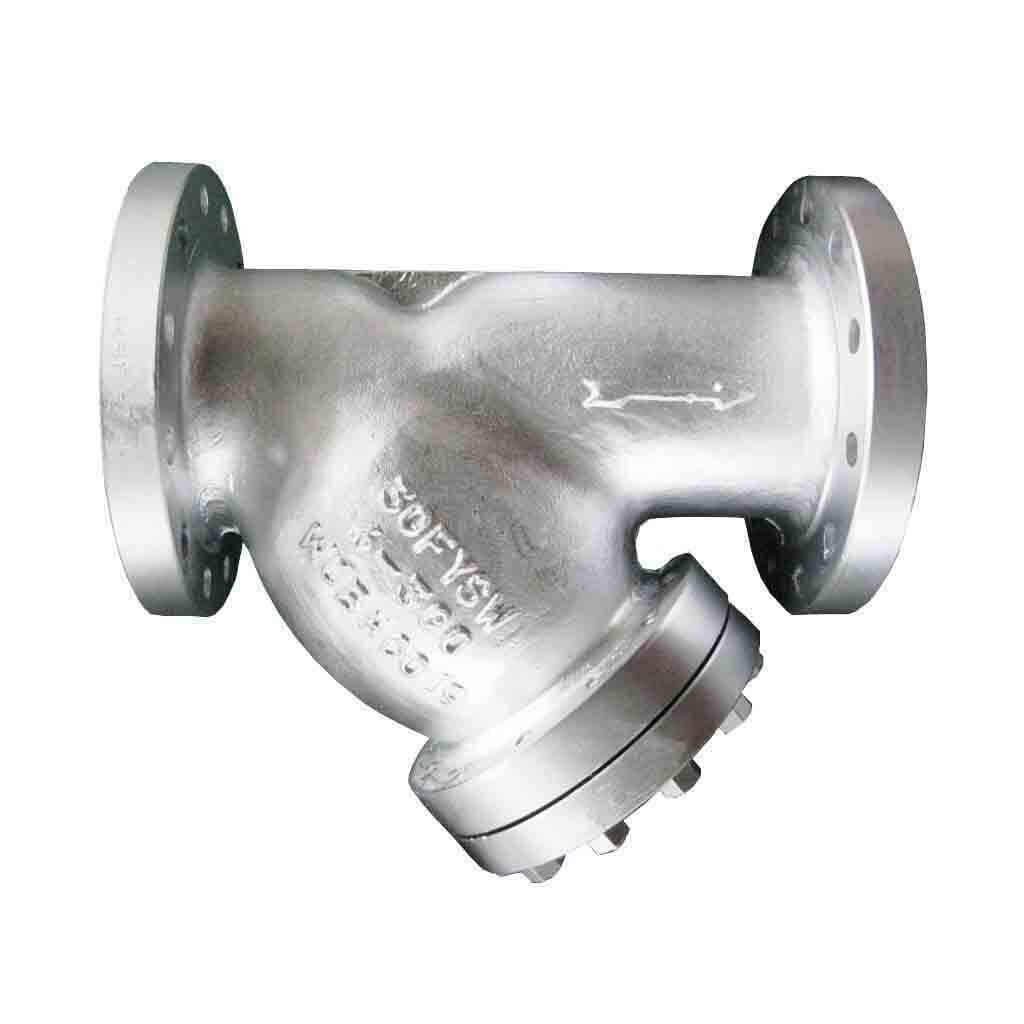

STRAINER Y PETRO 316 Stainless Steel Flanged ANSI 150#

$328.90

SEND A MESSAGE

  • Pressure / Temperature Rating - ANSI B16.34
  • End Flange Dimensions - ANSI B16.5
  • Wall Thickness - ANSI B16.34
  • Investment Cast Body
  • Body and Cap - A351 CF8M
  • Screen - ASTM A276 SS-316
  • Gasket - 304+Flexible Graphite
  • Hex Nut - ASTM A194 B8
  • Stud - ASTM A193 B8M
  • Plug - ASTM A182 F316
  • Testing - API-598
  • Working Pressure - 285 psi
  • Test Pressure - 428 psi - Hydrostatic
