PIUSI | OCIO Tank Gauge 240V AC Single Tank Display
Continuous tank level monitoring.
OCIO detects the static pressure generated by the fluid height by means of a tube inserted into the tank and displays the fluid level or volume.
The unit is equipped with an intuitive, complete software and permits the connection of two alarm or lock devices.
Depending on the set alarm levels, the control unit activates or deactivates the contact by acting as a remote switch for starting the alarms or cutting power to the connected equipment.
Maximum measurable height: 4m.
Probe tube length: 10 m.

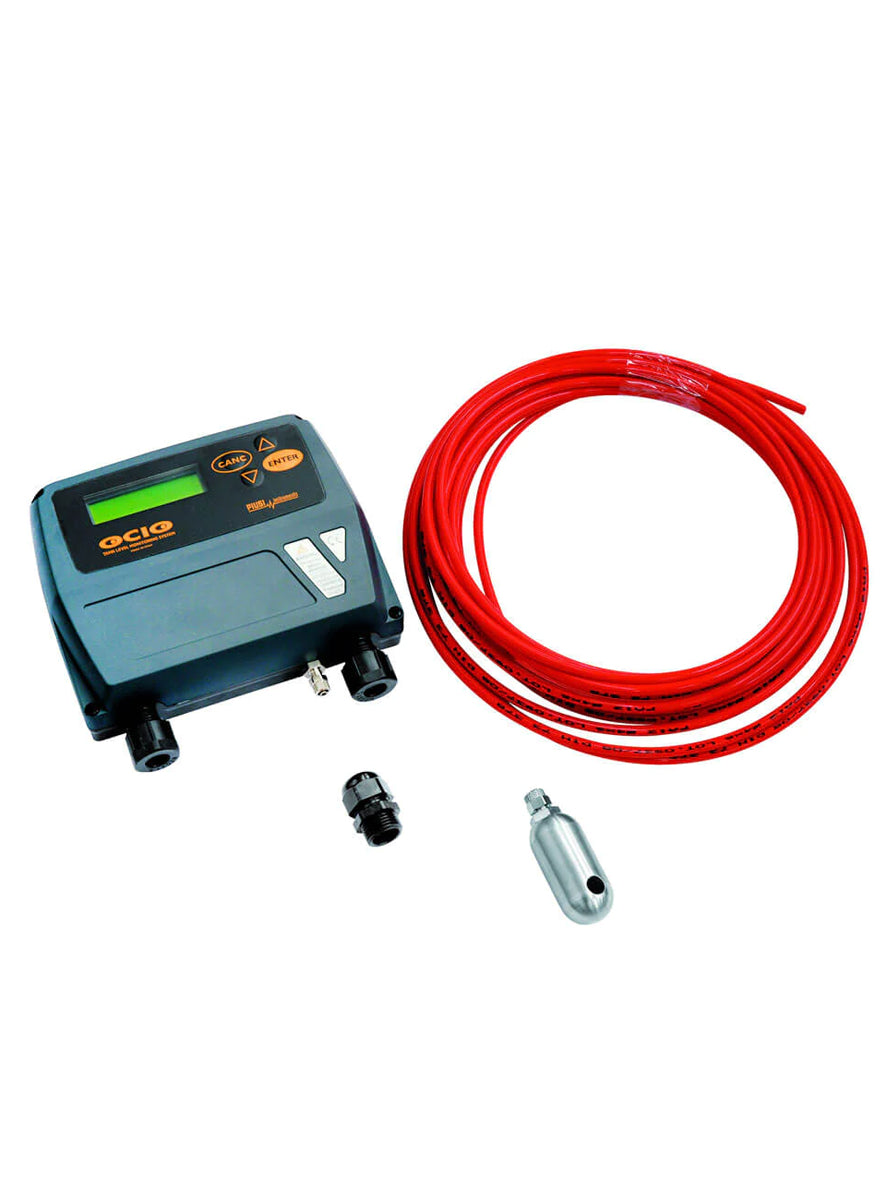

The system consists of:
A tube for detecting static pressure: The tube end is inserted from the top of the tank and lowered down into the liquid until it touches the bottom.
A control unit for displaying the level and managing the system.
The software is used to:
Set tank type and dimensions
Define alarm levels
Define indication level
Define measurement unit
Calibrate the instrument
Technical information:
Supply voltage 230 V / 50 Hz (120 V / 60 Hz).
Protection IP 55.
Full scale 4 m (12 feet).
Accuracy Å} 1 % full scale Contact for maximum and minimum level.
Max tension 250Vac at 5 Amp (or 30Vdc at 5 Amp).
Probe tube length 10 m (10,6 yards) (extensible up to 50 m (52 yards).
Level indication:
Height (mm, inch).
Volume (liters, gallons).
Filling percentage (%).
RS output for PC connection available.
Main Advantages:
Continuous metering.
Indication in height, volume, and filling percentage.
