TCS 700 Series Range of Positive Displacement Flow Meters

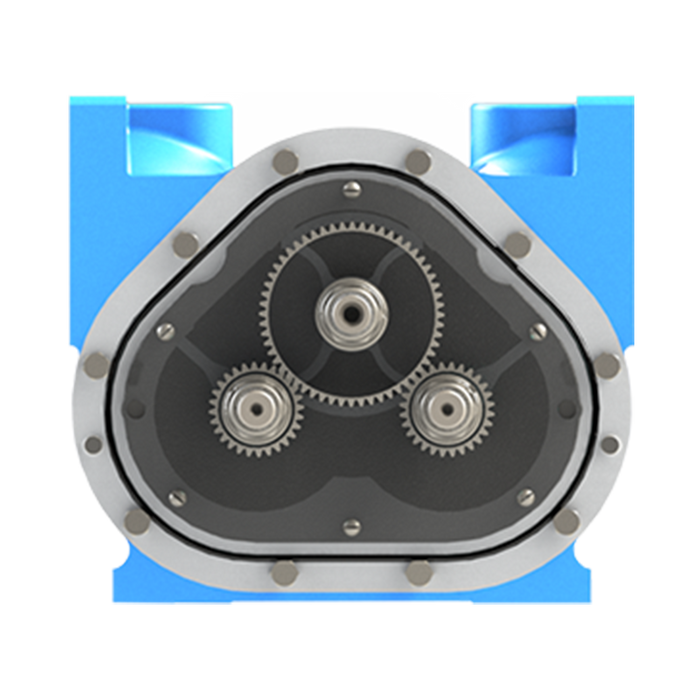

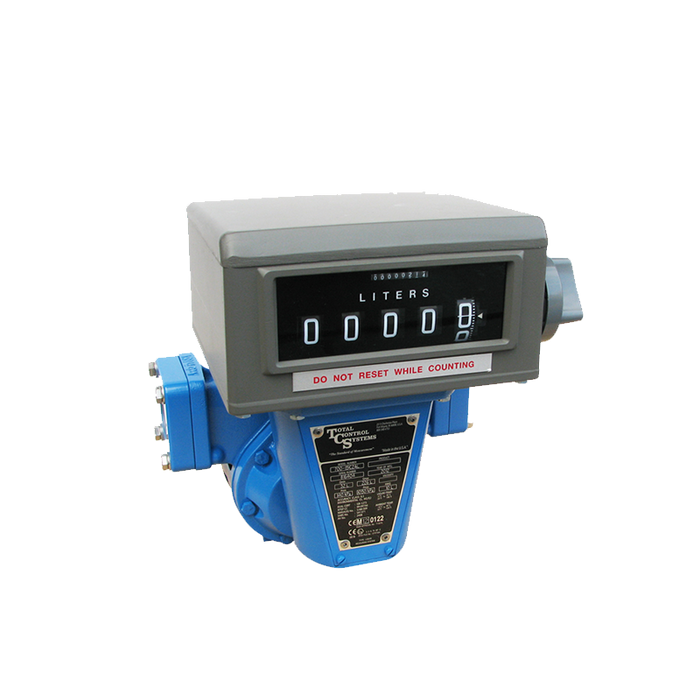

The TCS 700 rotary flow meter combines excellent accuracy with low pressure drop.  The TCS 700 rotary flow meter has a compact size and lightweight design that offers minimal maintenance and long service life.  This meter is built with advanced materials of construction for a broad range of measurement applications and is accompanied by a full selection of accessories and electronic registration.

Specifications

  • Flow: Capable of up to 1,000 GPM (3,785 LPM);  Bi-directional Flow
  • Linear Accuracy: Capable of ± 0.15% of over the full flow range
  • Repeatability: Capable of 0.02% (constant operation conditions with 700SP meters & mechanical registration, using 1 CPS test fluid)
  • Viscosity: Will accurately measure liquids up to 1,500,000 SSU (325,000 CPS)
  • Temperature: - 40 to 160°F (- 40 to 71°C)
  • Approvals: Meets a wide range of weights and measures requirements. (Contact factory for information on specific approvals.)

Meter Types

700 AF - All Ferrous

Materials of Construction: Ductile Iron, Stainless Steel, Carbon Graphite, Ni-Resist, PTFE
  • For metering Pesticides, Fertilizers, Food Processing Liquids, Industrial Chemicals, Solvents, Paints, Inks, Alcohols and many other liquids; such as Liquid Sugars, Liquid Feeds, MEK, Ethanol, Corn Syrup, Soy Bean Oil, Shortenings, Latex Products, Adhesiv

700 IC - Industrial Products Carbon Bearings

Materials of Construction: Anodized Aluminum, Stainless Steel, Carbon Graphite, Treated Stainless Steel, Ni-Resist, Simriz*, PTFE
  • For metering Alcohols, Chemicals, Solvents, Water and many other Non-Lubricating Liquids such as Acetones, Ethanol, Naphta, Xylene, MEK, Toluene, Resins, etc.

700 IP - Industrial Products Stainless Steel Bearings

Materials of Construction: Anodized Aluminum, Stainless Steel, Treated Stainless Steel, Ni-Resist, Simriz*, PTFE
  • For Food Processing, Chemicals, General Solvents and many other liquids such as Corn Syrup, Soy Bean Oil, Liquid Sugars, Shortenings, Latex Products, Adhesives, etc.

700 LP - Liquefied Petroleum Gas

Materials of Construction: Anodized Aluminum, Stainless Steel, Ni-Resist, Buna
  • For metering Liquefied Petroleum Gas (LPG) and NH3

700 SP - Standard Petroleum Meters

Materials of Construction: Anodized Aluminum, Stainless Steel, Treated Stainless Steel, Ni-Resist, FKM
  • For metering refined petroleum products such as Gasoline, Fuel Oils, Diesel, Bio-Diesel, Kerosene, Vegetable Oils, Motor Oils, Naptha, Ethylene Glycol, etc.

700 SPA - Standard Petroleum Aviation

Materials of Construction: Anodized Aluminum, Stainless Steel, Carbon Graphite, Treated Stainless Steel, Ni-Resist, FKM
  • For metering refined petroleum products such as Aviation Gasoline, Jet Fuels, Ethanol, Gasoline, Fuel Oils, Diesel, Bio-Diesel, Kerosene, Vegetable Oils, Motor Oils, Naptha, Ethylene Glycol, etc.

700 SPD - Standard Petroleum Ductile Nodular Iron

Materials of Construction: Ductile Iron, Stainless Steel, Carbon Graphite, Treated Stainless Steel, Ni-Resist, FKM, Simriz*
  • For metering refined petroleum products such as Ethanol, Methanol, Gasoline, Fuel Oils, Diesel, Bio-Diesel, Kerosene, Aviation Gasoline, Vegetable Oils, Motor Oils, Naptha, Ethylene Glycol, etc.

700 SS - Stainless Steel

Materials of Construction: 316 Stainless Steel, Carbon Graphite, Treated Stainless Steel, Simriz*, PTFE
  • For metering the same products as the SP, SPA, SPD and AF meter types, but includes special handling liquids; such as Acids, Anti-Icing Fluids, Vinegar, Fruit Juices, Corn Syrup, Micro-Nutrients, etc.

700 SSD - Stainless Steel DEF

Materials of Construction: Stainless Steel, Treated Stainless Steel, Ryton, EPDM
  • For metering Diesel Exhaust Fluid (DEF), AdBlue, ARLA and AUS32.

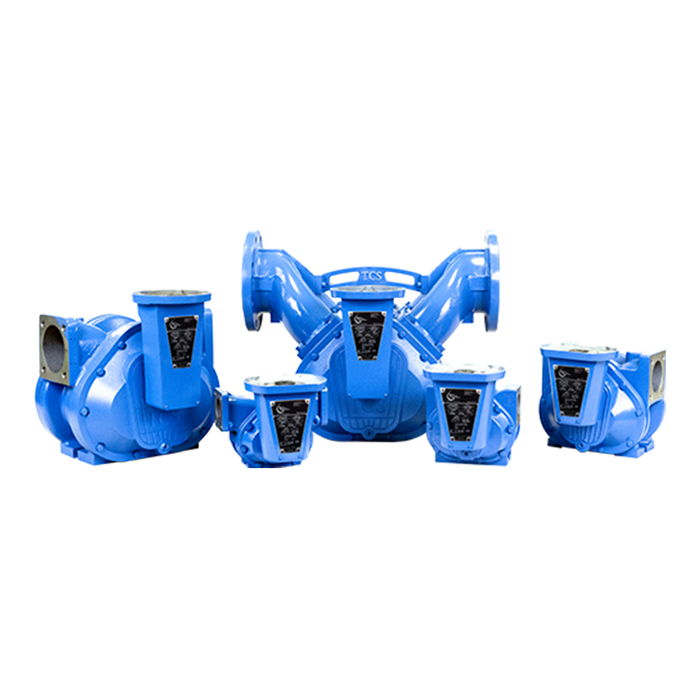

Sizes

TCS 700-15

  • Meter Types: IC, IP, SP, SPA
  • Flange Connections: 1 1/2” NPT Flange; 1” & 2” Options
  • The 700 1.5" rotary flow meter is engineered to meter liquid at up to 60 GPM (227 LPM).

TCS 700-20

  • Meter Types: AF, IC, IP, LP, SP, SPA, SPD, SS, SSD
  • Flange Connections: 2” NPT Flange; 1 1/2” Option
  • The 700 2" rotary flow meter is engineered to meter liquid at up to 100 GPM (380 LPM).

TCS 700-25

  • Meter Types: SPA, SPD
  • Flange Connections: 2” NPT Flange
  • The 700 2" rotary flow meter is engineered to meter liquid at up 150 GPM (567 LPM).

TCS 700-30

  • Meter Types: AF, IC, IP, SP, SPA, SPD
  • Flange Connections: 3” NPT Flange; 2” Option
  • The 700 3" rotary flow meter is engineered to meter liquid at up to 200 GPM (760 LPM).

TCS 700-35

  • Meter Types: SPA, SPD
  • Flange Connections: 3” NPT Flange
  • The 700 3" rotary flow meter is engineered to meter liquid at up to 300 GPM (1,135 LPM).

TCS 700-40

  • Meter Types: AF, IC, IP, SP, SPA, SPD
  • Flange Connections: 4” NPT Flange; 3” Option
  • The 700 4" rotary flow meter is engineered to meter liquid at up to 500 GPM (1,893 LPM).

TCS 700-45

  • Meter Types: SPA, SPD
  • Flange Connections: 4” NPT Flange
  • The 700 4" rotary flow meter is engineered to meter liquid at up to 600 GPM (2,271 LPM).

TCS 700-60

  • Meter Types: SPA
  • Flange Connections: 6” ANSI Flange
  • The 700 6" rotary flow meter is engineered to meter liquid at up to 800 GPM (3,040 LPM).

TCS 700-65

  • Meter Types: SPA
  • Flange Connections: 6” ANSI Flange
  • The 700 6" rotary flow meter is engineered to meter liquid at up to 1,000 GPM (3,800 LPM).
