Description

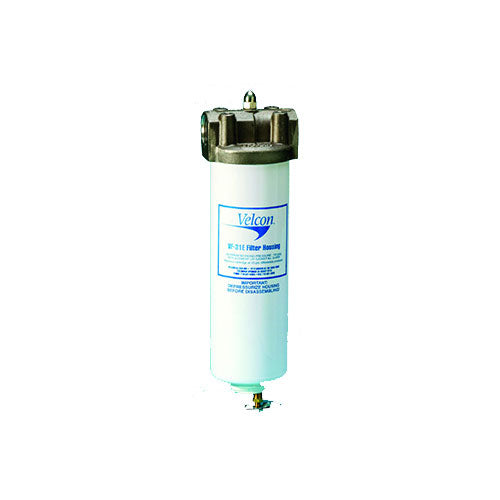

VELCON 1" VF31E Aviation Filter Housing and Element

These filter housings are versatile housings designed for use with several different high performance Aquacon® and other filter cartridges. Refer to the cartridge selection table below for application and other details.

Aquacon® cartridges filter out water by chemically locking it into layers of super-absorbent media. Water capacity is as much as 1.5 quarts, depending on the specific vessel and cartridge. These cartridges also effectively filter out dirt, rust and other particulates.

As an Aquacon® cartridge reaches its water-holding limit, the media expands very rapidly and restricts the flow. The pressure drop will rapidly increase, signalling the need to change cartridges.

FEATURES:

  • Designed for use with Jet A1 and Avgas Aviation Fuels.
  • Free and emulsified water to less than 5 ppm.
  • 1/2 micron particulate removal.
  • Provides protection against “slugs” of water.
  • Pressure increase signals cartridge change.
  • 1” NPT Threaded Female.
  • Up to 60lpm flow rate.

PRODUCT RANGE:

Code

Description

Application

VF31E

Filter Housing Only

Fuels: Kerosene, Diesel, Biodiesel, Gasoline

Oils: Insulating, Hydraulic, Lubricating                  PLUS: Compressed Air and Other Gasses

ACO21001L

Element Only



FILTER HOUSING VF-31E SPECIFICATIONS:

  • Recommended maximum flow rate: see table below.
  • Maximum operating pressure: 150 psi.
  • Material: cast aluminium head, carbon steel bowl with.
  • Epoxy painted interior and exterior.
  • Inlet/Outlet Connection: 1” NPT.
  • Inlet/Outlet face-to-face: 4”.
  • Mounting holes in head: four 1/4-20 NC.
  • Seal: Buna-N gasket.
  • Height: 13.50” without Petcock, 14.50” with Petcock.
  • Weight: 3 lbs., 15 oz.
  • Shipping Weight: 4 lbs., 15 oz.
  • Hardware included: 1 ea. Buna-N Lid Gasket, Mounting Brackets, 1 ea. Plug (for fuel and oil applications), and 1 ea. 1/8” Petcock Drain (for air, gas and aviation fuel applications).

RECOMMENDED SPARES

  • 1 ea. Model G-0995 Buna-N Lid Gasket.
  • 4 ea. filter cartridges (Specify from table.)

ORDERING INFORMATION

  • Model VF-31E Filter Housing (Supplied without cartridge)
  • Supplied with 1 ea. Model G-0995 Buna-N Lid Gasket, Mounting Brackets, 1 ea. Plug, and 1 ea. 1/8” Drain Petcock.

FILTER CARTRIDGE SELECTION TABLE:

Product

being

filtered

Application

Cartridge

P/N

Data

Sheet

Type

Micron

Flow Rate

(GPM)

Jet Fuel & Avgas(1)



Dirt & Free water

ACO-21001L

1681



Aquacon®

(Absorbent)

0.5







1-15

Motor Gasoline

AC-21005

1582

5

Gasohol

Dirt

FOG-21005

N/A

Paper filter

5

Diesel/Biodiesel(1)





Dirt & Free water

AD-21025

1655





Aquacon®

(Absorbent)

25

Oils

AC-21005

1582

5

Varies with oil

viscosity(2)

AD-21025

1655

25

Air/Gas

ACA-210

1689

1

100 SCFM @

100 psig

Dirt

FOS-210PLP5

N/A

Synthetic Filter

0.5

 (1) For Aviation and Diesel Fuel Systems, if system pressure can exceed 25 psi, always install pressure gauge or other means of determining differential pressure.

(2) See Data Sheet #1709 for absorbent cartridge (AC, AD) flow rates.

CAUTION

Do not use Aquacon® absorbent cartridges (AC, ACO or AD Series) with pre-mixed jet fuel containing anti-icing additives, or with gasoline/alcohol blends.
