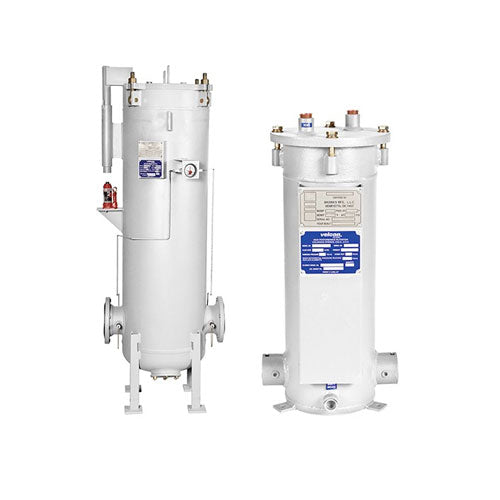

VELCON Vertical Filter Vessel and Cartridges - VF Series

Velcon VF Series of Vertical Vessels.  Velcon cartridges to suit these vessels including:

  • FO Series - Pleated Media Filter Cartridges.
  • AC Series - Aquacon Water Absorbing Cartridges.
  • FG Series - Fibreglass Cartridges.

FEATURES:

  • 150 psi welded steel ASME Code construction.
  • Choice of micron rating from 0.5 to 75 microns.
  • Choice of pleated or depth type media.
  • Epoxy coated interior, primed exterior.
  • Buna-N O-ring cover seals.

Typical Applications:

  • Jet Fuel.
  • Gasoline.
  • Diesel Fuels.

Recommended Optional Accessories:

  • Automatic Air Eliminator.
  • Pressure Relief Valve.
  • Differential Pressure Gauge.
  • Drain Valve(s).
  • Sampling Probes.
  • ASME Code Stamp.

VF SERIES FILTER VESSEL RANGE:

Vessel Code

Maximum Flow USGPM





FO Series

Cartridges



Weight with skid, lbs.

Volume U.S. Gallons



Jet Fuel

Gasoline

Diesel

Length

Qty

VF814

67

68

65

14

1

225

5

VF829

133

136

130

29

1

265

8

VF844

200

204

195

44

1

305

11

VF1614

267

272

260

14

4

500

22

VF1629

533

544

520

29

4

560

35

VF1644

800

816

780

44

4

620

48

VF2029

800

816

780

29

6

1000

67

VF2044

1200

1224

1170

44

6

1100

88

VF2829

1600

1632

1560

29

12

1500

125

VF2844

2400

2448

2340

44

12

1600

165

VF3644

3600

3672

3510

44

18

2250

288

VF4244

5400

5508

5265

44

27

3800

400



  1. Flow rates are for FO-614PLF series pleated paper cartridges. For higher viscosity fluids, consult your PETRO Representative.
  2. VF Series Filters are designed to accommodate our standard 6 in. O.D., 3.5 in. I.D., 14.5 in. long cartridges that are stacked one, two, or three high. Many cartridges are available in longer lengths that eliminate stacking. For example, a 44 inch long FO-644PLF1M could be used in place of three 14.5 inch long cartridges. This makes for easier and less expensive changeouts.
  3. A number of threaded base filter cartridges (e.g. FO-644PLF5TB) are available, which allow for easier cartridge changeout and removal of particulate matter from the deckplates. See data sheet #1549. The threaded base cartridges mount on the 6000T Adapters.
  4. Dimensions shown are for estimating purposes only. For exact dimensions, obtain certified drawing.
  5. VF16 and VF20 Series vessels have flat covers. VF16 Series vessels do not have hydraulic lift jacks.
  6. Available Aquacon® Cartridges are AC-6xx05 and AD-6xx25 where xx represents cartridge lengths of 14, 29, and 44 inches.

DOWNLOAD DATA SHEET FOR MORE DETAILED INFORMATION
