PIUSI MC Box Fuel Management System - Multi-fluid, Up to 120 users - from PETRO Industrial

PIUSI MC Box Fuel Management System - Multi-fluid, Up to 120 users

The Piusi MC Box Fuel Management System has the capability to control and manage the consumption of fuel for users in the private and commercial sector at a low cost. The Piusi MC Box is the perfect fuel management solution as an ‘add on’ unit...

$3,582

incl GST

SKU: F1398002B

Size

Description

The Piusi MC Box Fuel Management System has the capability to control and manage the consumption of fuel for users in the private and commercial sector at a low cost. The Piusi MC Box is the perfect fuel management solution as an ‘add on’ unit for new or existing pumps, or where it is preferable to have the pumps and the control panel installed in two different places.

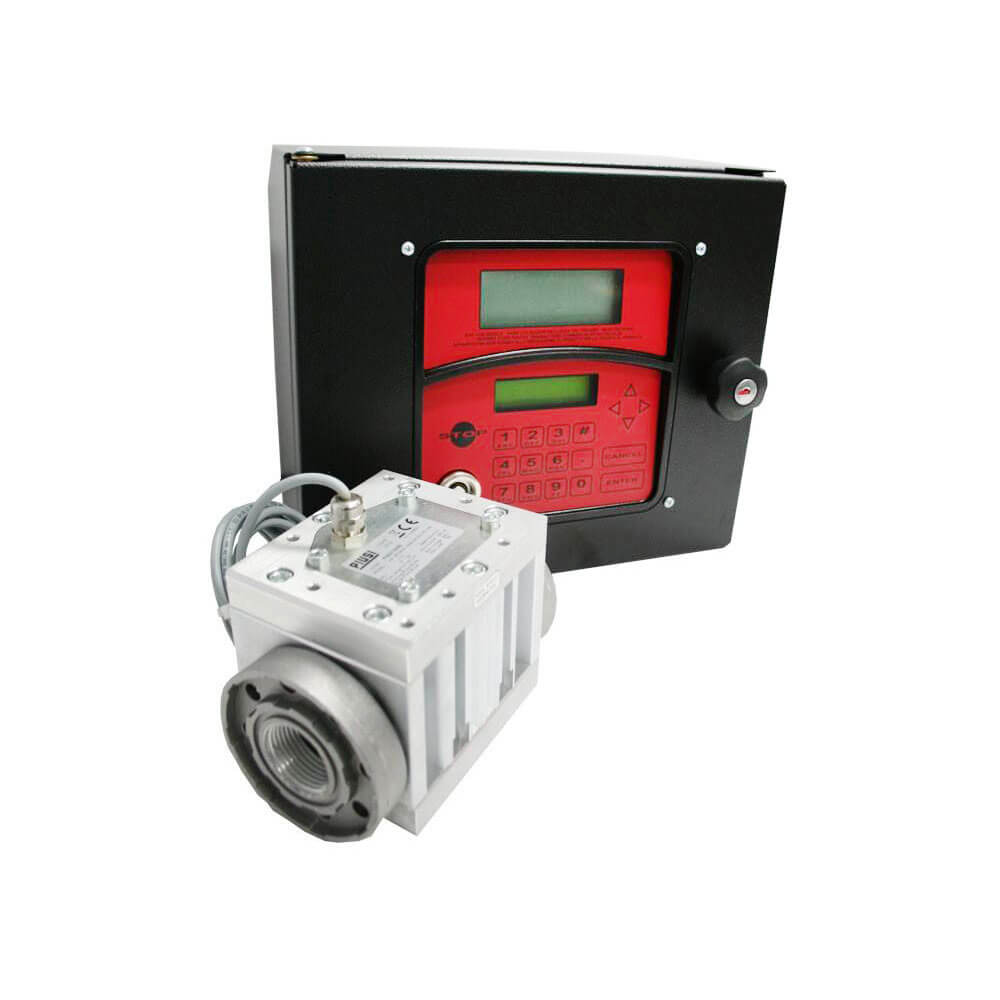

The MC Box Fuel Management System consists of a dedicated multi-user panel incorporated in a weatherproof lockable casing, that is capable of recording the date, time and amount of fuel dispensed for the last 255 transactions. It also has fuel security features by only allowing authorised users to dispense the fuel.

These fleet fuel management systems are available as a version that controls up to 80 users and a version that controls up to 120 users. The MC Box fuel management systems are able to be controlled at the unit via a pin code or a magnetic key system, and using the additional Self Service Desk software can also be connected to a PC for viewing the transaction data.

  • Available in 12V DC / 24V DC / 240V AC.

Kit comprising:

  • Fuel Management System Console.
  • Software.
  • 20 x Keys.
  • Manager Key and USB Kit for Data Download.
  • Pulse Meter - 1".

The Fuel Management System has the ability to:

  • Control up to 80 or 120 users (depending on model).
  • Local memory of 255 transactions.
  • Switch a pump on/off.
  • Recognise authorised users by means of i-button key or pin code.
  • Preset a quantity to dispense.
  • Manage a pulse meter to measure quantity dispensed.
  • Manage an external level switch to control pump operation on low level.
  • Operate an external nozzle switch.
  • Connect to a PC for exporting data files.
  • Connect to an external printer.

View Data online:

The iPETRO Link Gateway integrates seamlessly with Piusi MC BOX and CUBE MC systems, removing the need for manual data extraction or USB transfers. Automatically syncs fuel transactions and site data to the iPETRO VMI Cloud in real-time, reducing errors, saving time, and improving operational efficiency.
