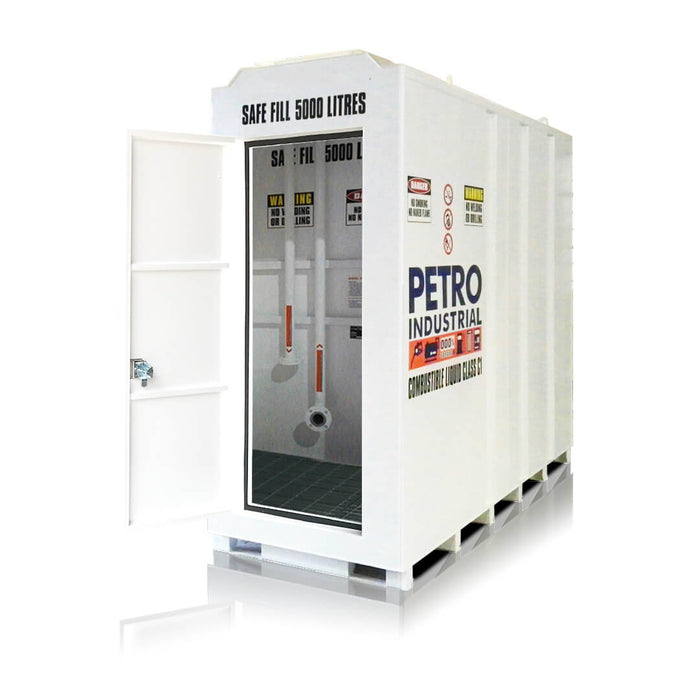

PETRO STORE - Self Bunded (Double Wall) Small Foot Print Tank Range
An innovative small footprint, full height pump bay storage tank perfect for home base refuelling.
FEATURES:
-
PUMP BAY - Lockable full height pump bay housing for secure storage of dispensing equipment
-
COMPLIANCEÂ -Â Designed and built in accordance with AS1940, AS1692 and AS1657
-
BUND - Galvanised grated bunded area with drain
-
FILL POINT - DN50 (2") Flanged 150# Fill Point with Full Bore Ball Valve / Non Return Valve / Male Camlock Fitting / Dust Cap / Mechanical Overfill Protection Valve and 12V Overfill Alarm
-
SUCTION POINT - DN50 (2") Flanged 150# Suction Point with Anti Syphon / Foot Valve Assembly.
-
SPARE SUCTION - Spare DN25 (1") Suction Outlet
-
SPARE FITTINGS - Numerous spare fittings on top of the tank for retrofitting of instrumentation or other devices
-
MANWAY - 600mm dia manway with internal ladder
-
DIPSTICK - Calibrated anodised aluminium dipstick with brass lockable dip stick cover fitting
-
INTERSTITIAL DIP - Anodised aluninium interstitial dipstick with brass lockable dipstick cover fitting
-
INTERSTITIAL VENT - Interstitial emergency vent
-
VENT - Primary tank free air vent
-
DECALS - Statutory safety decals
-
FORKLIFT TYNES - forklift tynes have been incorporated in the front / rear of the tank to facilitate offloading and positioning on site
-
LIFTING LUGS - certified crane lifting lugs have been incorporated to facilitate crane offloading and positioning on site. Â The lifting lugs are NOT certified to lift the tank with fuel.
-
HOSE OUTLET - letterbox style secure weatherproof hose inlet / outlet assembly
-
PAINT -  Paint Colour RAL9003 Signal White / Tanks are sandblasted to SA2 Standard. Hempel Marine Paint 3 Stage process. Primer Hempadur 1530. 2nd Coat Hempadur Hi-Build 4520. Final Coat Hempathane Enamel 55100 Finished dry film thickness no less than 180 um.
PRODUCT RANGE:Â
CODE
|
CAPACITY
|
SAFE FILL LEVEL
|
LENGTH (mm)
|
WIDTH (mm)
|
HEIGHT (mm)
|
WEIGHT
|
PS5.5Â
|
5,500L |
5,000L |
2950 |
1140 |
2550 |
1670KG |
PS11
|
11,000L |
10,000L |
2950 |
2300 |
2550 |
3100KG |
PS16 |
16,000L |
15,000L |
3950 |
2300 |
2550 |
3800KG |
PS22 |
22,000L |
20,000L |
4950 |
2300 |
2550 |
4500KG |
Â
