BREAKAWAY OPW Combo - Swivel, 66SB Dual Plane

OPW
SKU: 66SB-7575 + 66SB-1010
$ POA
Trust Badge

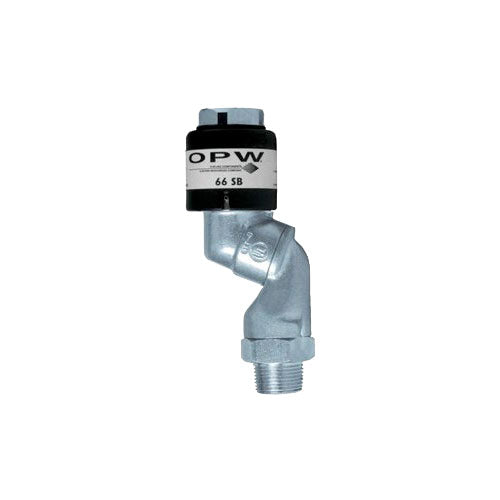

BREAKAWAY OPW Combo - Swivel, 66SB Dual Plane

The OPW 66SB Swivel Breakaway is intended for easy installation at the nozzle inlet.  The compact, lightweight design incorporates a 360° swivel rotation at both the male end and middle joint, with a simple and easily reconnectable breakaway on the opposite end.

Available in 1” (25mm) and 3/4” )19mm) suitable for up to 10% Ethanol.

FEATURES:

  • UL and ULC listed for use in gasoline, diesel, and up to 10% ethanol blends.
  • Pull force - the 66SB will break away with a pull force of no more than 350 lbs.
  • Easily reconnected at waist height - after relieving line pressure, simply push coupling halves together until latched. Reconnection force is approximately 15 lbs.
  • Protected coupling and poppet - the breakaway’s poppet and sealing surface are protected from impact during separation by a plastic sleeve.
  • Reduces connections - the single-unit design replaces the standard swivel, breakaway and whip hose, eliminating possible leak points.
  • Double O-Ring seal - both swivel joints are protected by a double O-Ring design.
  • Design Working Pressure - 50 PSI (3.45 bar) maximum pressure.

Materials:

  • Body:  Aluminum
  • Sleeve:  Nylon, HDPE
  • Seals:  Viton®
  • Spring:  Stainless Steel
  • Poppet:  Aluminum

RANGE:

Code

Description

66SB-7575

3/4” (19mm)

66SB-1010

1” (25mm)
