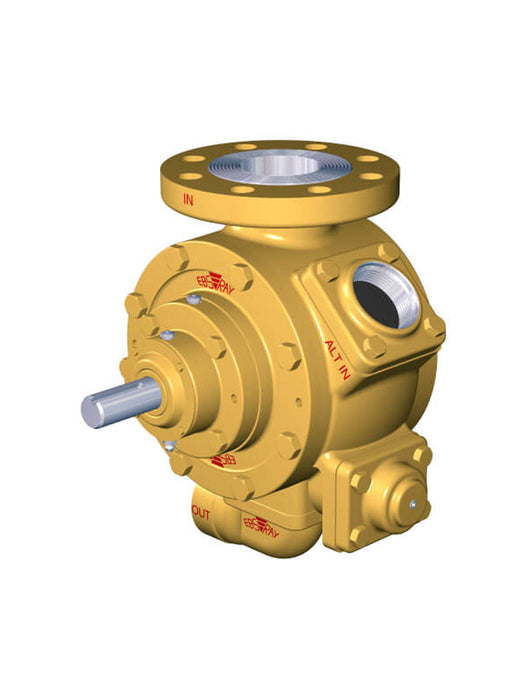

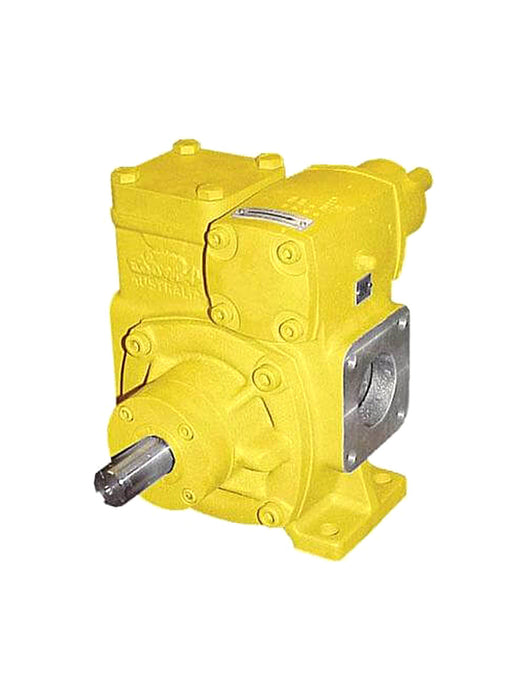

EBSRAY Sliding Vane Pump Range

Ebsray
SKU: EBS-RAY
Availability: Many in stock
$ POA
Trust Badge

EBSRAY PUMPS

POSITIVE DISPLACEMENT SLIDING VANE PUMPS

Designed and precision built for efficient transfer of a wide variety of lubicating and non-lubicating liquids and capable of handling a broad range of viscosities.

  • Designed and precision built to optimise all the advantages of the sliding vane principle.
  • Automatic compensation for vane wear assures the pump will maintain its superior priming characteristics and line stripping ability over a long service life.
  • Smooth output flow ensure quiet operation within the NPSH range.
  • The pumps can be direct-coupled to synchronous speed motors.

FEATURES:

  • Replaceable wearing components.
  • Balanced mechanical seals, shaft lip seals.
  • Positive axial location of rotor.
  • Multiporting configurations.
  • Double-ended shaft (some models).
  • Bypass valve - integral adjustable.
  • Lightweight or standard.
  • Compact and robust.

PERFORMANCE:

  • Flows to 6,360Lpm.
  • Pressures to 1,100 kPa.
  • Viscosities to 10,000 cSt.
  • Temperatures to 100°C.

FIELDS OF APPLICATION:

Road tanker mounting and fixed installation for loading and unloading of Petroleum products such as: petrol, distillate, aviation fuels, lubricating oils, LPG, chemicals solvents and edible oils.

DIESEL DRIVEN PRODUCT RANGE:







Description

Service

Casing Material

Flow Rate

Model V20 T21H with Kohler KD350 engine

Refueling

Aluminium



340 lpm



Model V20 T21H with Kohler KD440 engine

Refueling

Aluminium

400 lpm



Model V25 T83 with Kohler 15LD500 engine

Refueling

Aluminium

530 lpm



Model V30 T24 with Kohler 15LD500 engine

Refueling

Cast Iron / Aluminium

730 lpm



Model V35 T24with Kohler KD425-2 engine

Refueling and Unloading



Cast Iron / Aluminium

920 lpm



Model V40 with Kohler KD425-2 engine

Refueling and Unloading

A395 Ductile Iron



1100 lpm



Model V40 with Kohler KD625-2 engine

Refueling and Unloading

A395 Ductile Iron



1600 lpm







ELECTRIC DRIVEN PRODUCT RANGE:

Description

Service

Casing Material

Flow Rate

Max. Diff Pressure

Model V20 T21H with 4.0kw 6 pole motor

Refueling



Aluminium



400 lpm



300 kPa



Model V25 T83 with 5.5kw 6 pole motor

Refueling



Aluminium



560 lpm



300 kPa



Model V30 T24 with 7.5kw 8 pole motor

Refueling



Cast Iron / Aluminium



730 lpm



350 kPa



Model V35 T24H with 7.5kw 8 pole motor

Refueling and Unloading



Cast Iron / Aluminium

970 lpm



250 kPa



Model V35 T24 with 11kw 8 pole motor

Refueling



Cast Iron / Aluminium

940 lpm



450 kPa



Model V35 T24 with 15kw 8 pole motor

Refueling



Cast Iron / Aluminium

920 lpm



675 kPa



Model V40 T55P1 with 15kw RX87 geared motor

Unloading and Transfer



A395 Ductile Iron



1400 lpm



400 kPa
