GRACO 5:1 Fire-Ball 300 Pump Range

GRACO
SKU: 203876
$1,804.00 Incl. GST
QTY:
Trust Badge

GRACO 5:1 Fire-Ball 300 Pump Range

Typical applications are continuous duty, maintenance facility dispensing motor oil, gear oil, automatic transmission fluid, hydraulic fluid.

FEATURES:

  • In-line design with fewer parts for less pump wear.
  • Differential air motor ensures smooth pumping.
  • Double-acting pump provides reliable fluid flow.

SPECIFICATIONS & PERFORMANCE:

  • Cycles per Gallon: 28.4 (8.6 liters)
  • Fluid Flow gal/min @ 80 cpm: 2.8 (9.3 liters)
  • Maximum Fluid Pressure: 900 psi (62 bar)
  • Air Motor Effective Diameter: 3 in (76.2 mm))
  • Air Operating Range: 40-180 psi (2.8-12 bar)
  • Approx. Air Use and Flow @ 100 psi and 80 cpm: 27 scfm @ 3 gpm (0.765 m3/min @ 11.5 lpm)
  • Wetted Materials: Steel, Polyurethane, Aluminum, Buna-N
  • Annual Usage: Up to 35,500 gal (132,000 l)
  • Line Length: Up to 500 ft (152.5 m)
  • Air Inlet Port Size: 3/8 npt(f)
  • Fluid Inlet Port Size: 1-1/2 npt(f)
  • Fluid Outlet Port Size: 1/2 npt(f)
  • Dispense Points: 1 to 3

    Fire-Ball 300 5:1 Pump – Ordering Information:

    Code

    Description

    203876

    5:1 Universal Oil Pump

    203872

    5:1 Oil Pump, 16 gal (120 lb) drum size, for cover mount

    203857

    5:1 Oil Pump, 55 gal (400 lb) drum size, for cover mount

    204254

    5:1 Oil Pump, 55 gal (400 lb) drum size, bung mount

    222087

    5:1 Oil Pump, 275 gal (1040 lb) tank size, bung mount


    Mini Fire-Ball 225 & Fire-Ball 300 – Ordering Information:

    Packages

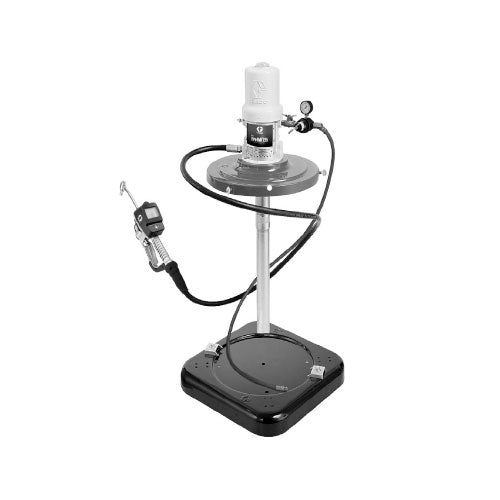

    Portable

    Cover-Mounted

    Bung-Mounted

    Universal

    Container Size

    16 gal (60 l)

    55 gal (200 l)

    275 gal (1040 l)

    Universal

    Mini Fire-Ball 225,

    3:1 Package

    246903 (4)

    246904 (4)

    246906 (4)

    246907 (3), (4)

    248230 (3), (4)

    Mini Fire-Ball, 225

    3:1 Pump

    248097 (1), (3)

    246775

    Fire-Ball 300,

    5:1 package

    225728 (2), (4)

    225094 (3), (4)

    225642 (3), (4)

    225640 (3), (4)

    225931 (3), (4)

    225852 (3), (4)

    Fire-Ball 300

    Pump

    203872

    203857

    204254

    222087

    203876

    Dispense/Hose

    Fitting Kit

    237075

    222063

    222062

    Fluid Hose

    6 ft x 1/2 in

    (1.8 m x 12.7 mm)

    1.5 ft x 1/2 in

    (0.5 m x 9.5 mm)

    Air Hose

    6 ft x 3/8 in

    (1.8 m x 9.5 mm)

    1.5 ft x 3/8 in

    (0.5 m x 9.5 mm)

    Air Regulator

    224512

    Cover

    204574

    200326

    Caster Base

    203622

    Bung Adapter for

    300, 5:1

    222308

    225, 3:1 Manual

    309868

    300, 5:1 Manual

    307884

    307883

    306520

    (1) 248097 includes suction tube (15C502) and bung adapter (222308)

    (2) Use 3/8 in (9.5 mm) installation kit (224512) as required

    (3) Use 3/8 in (9.5 mm) air regulator 109075 as required; must be ordered separately

    (4) Order low-level cut-off 203688 (1 1/2 inch NPT) separately for metered dispense systems



    Fire-Ball 300, 5:1 Pump Packages:

    Code

    Description

    241633*

    Includes: Fire-Ball 300, 5:1 pump universal (203876), 3/8 in (9.5 mm) regulator/gauge (109075), 3/8 in (9.5 mm) x 3/8 in (9.5 mm) nipple (156849), 2 in (50.8 mm) bung adapter (222308), SD Series reel with 25 ft (7.6 m) x 1/2 in (12.7 mm) hose (HPM33B), SDM5 meter (255350)

    224541*

    Includes: Fire-Ball 300, 5:1 pump universal (203876), 3/8 in (9.5 mm) regulator/gauge (109075), 3/8 in (9.5 mm) x 3/8 in (9.5 mm) nipple (156849), 2 in (50.8 mm) bung adapter (222308), SD Series reel with 50 ft (15.3 m) x 1/2 in (12.7 mm) hose (HPM65B), 18 in (45.7 cm) hose (220598), 90º swivel (inlet on hose reel) (157416), SDM5 meter (255350)

    244038*

    Includes: Fire-Ball 300, 5:1 pump universal (203876), 3/8 in (9.5 mm) regulator/gauge (109075), 3/8 in (9.5 mm) x 3/8 in (9.5 mm) nipple (156849), 2 in (50.8 mm) bung adapter (222308), SD Series reel with 50 ft (15.3 m) x 1/2 in (12.7 mm) hose (HPM65B), 18 in (45.7 cm) hose (220598), 90º swivel (157416), SDP5 meter (255200)

    224534*

    Dispensing from Bench-Top Tanks with Fire-Ball 300, 5:1 Pump Package. Includes: Fire-Ball 300, 5:1 pump, Universal (203876), 3/8 in (9.5 mm) regulator/gauge (109075), Air filter (106148), 3/8 in (9.5 mm) x 3/8 in (9.5 mm) nipple (156849), SD Series reel with 50 ft (15.3 m) x 1/2 in 12.7 mm) hose (HPM65B), Drain valve (106151), 72 in (182.9 cm) hose kit (222063), Thermal relief valve (237893), 90º swivel (157416), SDM5 Meter (255350)

    * Order 218549 (1/2 in x 24 in) hose reel inlet kit separately NOTE: Tanks not included.
