SKU: 000550000Dispenses up to 31 gallons of oil or 57 pounds of grease a minute. Tested to outperform and outlast all other pumps on the market with its long-life packing design. Intuitive, easy-to-use controls. Best value for the money – fewer parts, faster repairs and long-lasting durability.
FEATURES:
APPLICATIONS:
In-Plant
Mines/Construction
Fleets (municipal, military, aviation)
DATA TRACK:
Advanced Graco Control Architecture
Remote Control for Maximum Convenience
NXT MOTORS – Modular–No Special Tools Required
Quiet Operation
Reduced Icing Keeps You Pumping
CHECK-MATE GREASE PUMP FLOOR STAND PACKAGES:
|
14:1 |
26:1 |
29:1 |
55:1 |
63:1 |
68:1 |
||
Check-Mate Floor Stand Pumps |
Pump Specifications |
Package No. with DataTrak |
247973 |
247976 |
247974 |
247977 |
247975 |
247978 |
Package Number w/o DataTrak |
24E006 |
24E007 |
24E008 |
24E009 |
24E010 |
24E011 |
||
Mounting |
Floor Stand (223952) |
|||||||
Pump with DataTrak |
P14MCS |
P26MCS |
P29MCS |
P55MCS |
P63MCS |
P68MCS |
||
Pump w/o DataTrak |
P14DCS |
P26DCS |
P29DCS |
P55DCS |
P63DCS |
P68DCS |
||
Output per Cycle |
500cc |
250cc |
100cc |
200cc |
||||
Motor Size |
NXT 3400 |
NXT 6500 |
NXT 3400 |
NXT 6500 |
NXT 3400 |
NXT 6500 |
||
Maximum Fluid Pressure psi (bar, Mpa) |
1400 (96.5, 9.7) |
2600 (179.3, 17.9) |
2900 (200.0, 20.0) |
5500 (379.2, 37.9) |
4500 (310.3, 31.0) |
5300 (356.5, 36.5) |
||
Maximum Air Input Pressure psi (bar, Mpa) |
100 (6.9, 0.7) |
72 (5.0, 0.5) |
78 (5.4, 0.53) |
|||||
Output at 60 CPM lbs/min (kg/min)* |
57.0 (26.0) |
28.0 (13.0) |
11.4 (5.2) |
22.8 (10.4) |
||||
Manuals |
System Manual |
312863 |
||||||
Pump Manual |
312376 |
|||||||
Pump Lower Manual |
312375 |
|||||||
Motor Manual |
311238 |
|||||||
Outlet |
Pump Outlet Size |
1 1/2 in npt (m) |
1 in npt (f) |
3/4 in npt (m) |
1 in npt (f) |
|||
Hoses |
3/4 in x 6 ft Air Hose |
208610 |
||||||
1 in x 6 ft Fluid Hose |
115042 |
244657 |
*Graco recommends 20 CPM or less for supply applications.

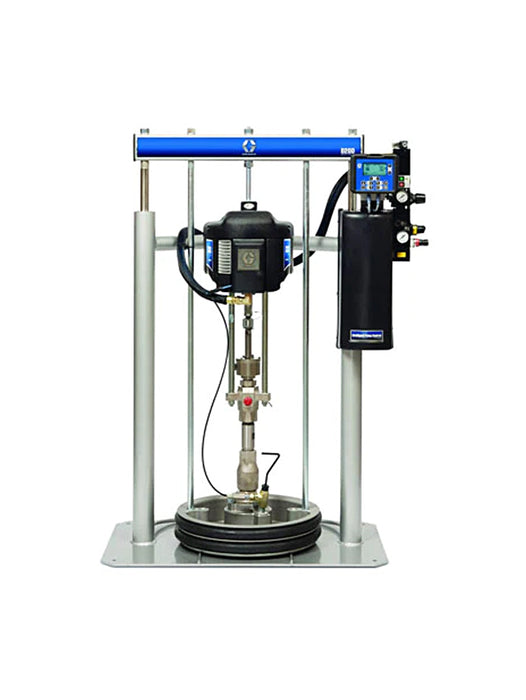

CHECK-MATE GREASE RAM PACKAGES:
|
14:1 |
63:1 |
68:1 |
||
Check-Mate Ram Pumps |
Pump Specifications |
Package No. |
247979 |
247980 |
247981 |
Mounting |
RAM System |
||||
Output per Cycle |
500cc |
100cc |
200cc |
||
Motor Size |
NXT 3400 |
NXT 6500 |
|||
Maximum Fluid Pressure psi (bar, Mpa) |
1400 (96.5, 9.7) |
4500 (310.3, 31.0) |
5300 (365.5, 36.5) |
||
Maximum Air Input Pressure psi (bar, Mpa) |
100 (6.9, 0.7) |
72 (5.0, 0.5) |
78 (5.4, 0.53) |
||
Output at 60 CPM lbs/min (kg/min)* |
57.0 (26.0) |
11.4 (5.2) |
22.8 (10.4) |
||
Manuals |
System Manual |
312863 |
|||
Supply Systems Operation |
312371 |
||||
Supply Systems Repair & Parts |
312373 |
||||
Outlet |
Pump Outlet Size |
1 1/2 in npt (m) |
3/4 in npt (m) |
1 in npt (f) |
|
Hoses |
3/4 in x 6 ft Air Hose |
208610 |
|||
1 in x 6 ft Fluid Hose |
115042 |
244657 |
*Graco recommends 20 CPM or less for supply applications.
Contact PETRO industrial's team of bulk fuel storage and dispensing specialists for more information today!
