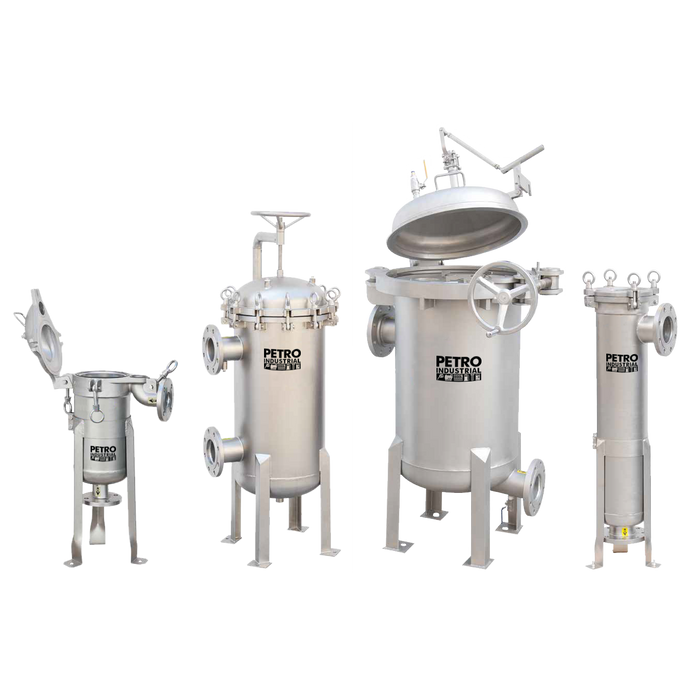

PETRO Bag Filtration Systems

Options:

1. BFT SERIES OVER-THE-TOP BAG FILTER
2. BFS SERIES SIDE-IN BAG FILTER
3. BFR SERIES QUICK-OPEN MULTI-BAG FILTER

BFT SERIES OVER-THE-TOP BAG FILTER

BFT Series Single Bag Filter (BFT filter for short ) features over-the-top flowing-in design. It is the single bag filter with the best structure. Its absolute bag sealing design makes it ideal for the absolute high filtration degree applications. The Solid structure delivers high safety and durability. The BFT series bag filter is designed for the most demanding applications.

Technical Features and Advantages:

• Absolute sealing design, suitable for ultra-fine filtration.
• Seal the filter bag and the housing at the same time, simplified operation.
• Precise over-the-top horn-shape casting cover, soft flow distribution, optimised  filter cake building.
• Fluent flow pipeline design, low pressure loss.
• Standard dimension flange, high strength ,safe and reliable.
• Quick-Open design, loosen the eye-bolt and nut and open the cover, simple maintenance.
• Reinforced eye-bolt seat, no deformation under 1.6 MPa.
• Made of quality 304 or 316 Stainless Steel.
• Minimum two welding seams on the main shell, easy to clean the interior completely.
• Outstanding welding quality, durable and safe.
• Low operation height, easy to stoop to install the filter bag.
• Lower volume than the equal side-in bag filter, reduce fluid filling and waste.
• Easy and safe to pull the filter bag collar especially when filtering the dangerous or viscous liquid.
• Three types of inlet and out layout options, convenient for the installation.
• Solid stainless steel eye-bolts and nuts, corrosion resistance, durable and reliable.
• Adjustable Stainless Steal support legs, simple installation.
• Bead blasted external surface, easy to clean, nice surface finish.

BFS SERIES SIDE-IN BAG FILTER

BFS Series Side-in Single Bag Filter (BFS FILTER for short) is manufactured referring to the GB150 pressure vessel standard. The high strength structure delivers absolutely high safety when filtering the dangerous liquids.  It is an ideal durable filter for all the demanding application. The housing design pressure is high up to 2.0MPa.  Various inlet and outlet sizes and layouts are optional for the convenient installation.

Technical Features and Advantages:

• Precise casting cover, solid, durable and reliable.
• Various inlet and outlet size (DN25-DN100) available for different flow rates.
• Three types of inlet and outlet layout optional for easy pipeline design and installation.
• Standard size flange, excellent equipment strength and nozzle loading ability.
• Quick-Open design, loosen the eye-bolt and nut and open the cover, simple maintenance.
• Reinforced eye-bolt seat, no deformation under 1.6 MPa.
• Made of quality 304 or 316 Stainless Steel.
• Good welding quality, durable and safe.
• Concave cover, reduce volume and low liquid level, no liquid over ow pollution.
• Solid stainless steel eye-bolts and nuts, corrosion resistance, durable and reliable.
• Adjustable stanless steal support legs, simple installation.
• Bead blasted external surface, easy to clean, nice surface finish.

BFR SERIES QUICK-OPEN MULTI-BAG FILTER

BFR Series Quick-Open Multi-bag filter (BFR Filter for Short) is particularly designed for end users caring about the operation efficiency, safety and durability.  It is very suitable for the filtration of high contaminant liquid, frequent filter bag change-out applications, or 24-hour continuous production which requires quick filter switching and cleaning. BFR filter is an excellent solution to greatly improve the filtration operation efficiency. It makes the filter change-out quicker and greatly reduces the labour intensity.

Technical Features and Advantages:

• V-shape heavy duty quick-open clamp cover.
• Open and close the filter within 20 seconds, change the filter bags immediately.
• Operate at the still position, no need to walk around the filter and fasten bolts and nuts symmetrically.
• Interlock safety design makes sure the filter opened only after vented and pressure relieved.
• Weight balance device allows the cover to be stopped at any possible opening angle with one finger.
• Open the cover vertically, save the footprint and installation cost.
• Special wrench tool for easy bag fixing and change-out.
• Shortest filter offline time and, improve the production and reduce the operation cost.
• Quality O-ring elastomer rubber, good sealing and long service life.
• Made of quality stainless steel 304 and 316L, good chemical corrosion resistance.
• Six standard sizes with 2,3,4,6,8 and 12 bag housings available.
• Three types of inlet and outlet layout optional for easy pipeline design and installation.

Download the PETRO Bag Filtration Systems Brochure HERE for Specifications.
