PETRO Iron Butterfly Valves - Manual, Air & Electric Operated

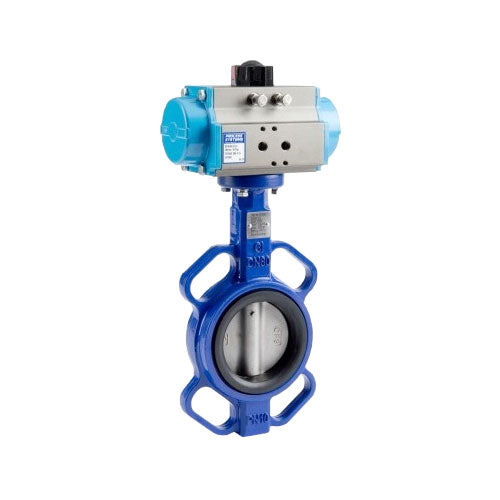

The BFK range of Wafer Style Ductile Iron Butterfly Valves are available with pneumatic, electric or manual actuation. The BFK series has a cast iron body, 304 S.S disc and an EPDM seat making them suited to a wide range of general water applications.

These wafer butterfly valves will fit all standard flanges and are operated by either a lever or gear box (ISO 5211 mounting pad allows direct mounting).

Designed & manufactured in accordance with API609, inspected and tested in accordance with API598. Common applications include water trucks, irrigation and non corrosive industrial applications.

If sizes above 300mm are required please see BFD series (cast iron, 316 SS disc).

MANUAL ACTUATION:

Model

Nominal Diameter

Actuator

Media Pressure

Actuator Pressure

Media Temp.

BFD50-DA-E

50mm

DA50











0

to

16 Bar











6

to

8 Bar











-10°C

to

120°C

BFD65-DA-E

65mm

DA50

BFD80-DA-E

80mm

DA63

BFD100-DA-E

100mm

DA75

BFD125-DA-E

125mm

DA75

BFD150-DA-E

150mm

DA88

BFD200-DA-E

200mm

DA115

BFD250-DA-E

250mm

DA125

BFD300-DA-E

300mm

DA145

BFD350-DA-E

350mm

DA160

BFD400-DA-E

400mm

DA180

BFD450-DA-E

450mm

DA200

BFD500-DA-E

500mm

DA240

BFD600-DA-E

600mm

DA270



ELECTRIC ACTUATION:

Model

Nominal

Diameter

Electric

Operation

Voltage

Code

BFL50-E-E

50mm (2”)

OM-1

1 – 240vAC

2 – 110vAC

5 – 24vAC

7 – 12vDC

8 – 24vDC

BFL65-E-E

65mm (21/2”)

OM-1

BFL80-E-E

80mm (3”)

OM-1

BFL100-E-E

100mm (4”)

OM-A

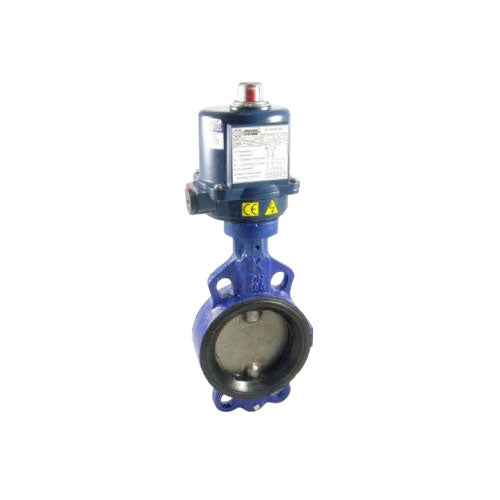

The OM Series is a robust range of 1/4 turn electric actuators suitable for the on/off activation of Ball or Butterfly valves.

A powerful motor with inbuilt thermal protection drives a pre-lubricated heavy duty steel gear train running in bronze bushes. They are encased in a powder coated die cast protective housing that has an IP67 rating (dust tight and submersible for limited periods).

All models have a visual position indicator and a manual override.

The ISO 5211 mounting and female square drive allows direct coupling to valves with a similar configuration.

Standard models drive through 900 and can be fitted with voltage free contacts for end of stroke feedback.

Positioner models with 4-20mA or 2-10v modulating control are also available in all sizes.

STANDARD FEATURES:

  • IP67 weatherproof rating and Humidity up to 95%.
  • Ambient temp. -5°c ... +600G.
  • Duty cycle is 30% to 75% depending on ambient temperature, voltage and actuator model, and relates to the 135°G thermal motor protection. (some modulating versions have a 75% duty cycle)
  • Always allow a 35% safety margin when sizing torque requirements.

OPTIONAL FEATURES:

  • Torque limit switch (overload protection).
  • Anti-condensation heater - 15 watt.
  • Two SPOT voltage free micro switches and cams (end of stroke feedback).
  • Potentiometer and position transmitter (4-20mA feedback).
  • Modulating control (4-20mA or 2-1Ov input and feedback).

OM SERIES – SPECIFICATIONS:

Model

Torque

Nm

Time (sec) 90°

(AMP) 12v AC/DC

(AMP) 24v AC/DC

(AMP) 110v AC

(AMP) 240v AC

(AMP) 415v

AC

DC

Run

Start

Run

Start

Run

Start

Run

Start

Run

Start

OM-1

35

13*

15

0.5

3

0.6

0.8

0.5

1.5

0.3

1

-

-

OM-AL

50

24*

24

0.5

3

0.7

0.8

0.5

1.5

0.3

1

-

-
