PETRO Aviation Self Bunded Tank

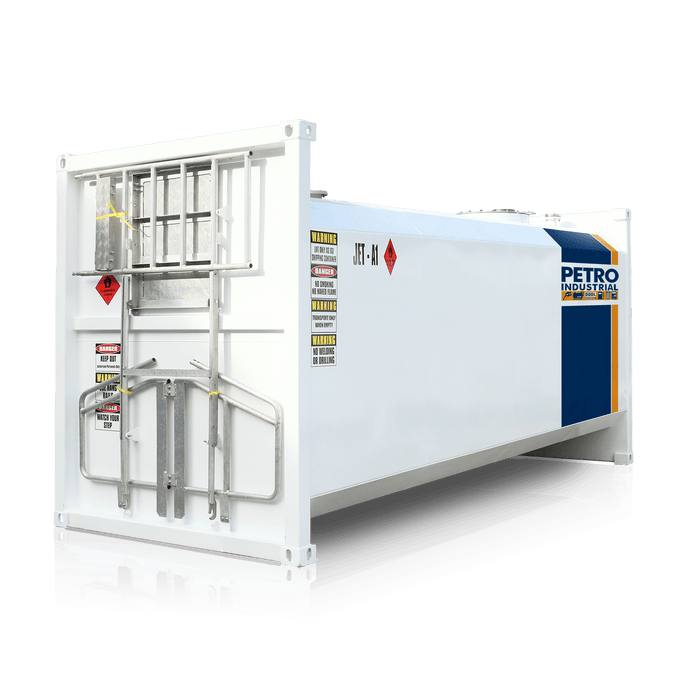

PETRO Aviation Containerised Self Bunded (Double Wall) Tank Range.

Full range of Containerised Self Bunded Tanks (Double Wall) suitable for the storage and dispensing of AVGAS and Jet A1 Fuels.

FEATURES:

• Self Bunded Tank (double wall) 360° Wrap Design.
• Suitable for use with Avgas and Jet A-1.
• 6mm 304 Stainless Steel or Epoxy Lined Carbon Steel Inner Tank & Wetted Parts.
• 6mm Carbon Steel Outer Tank.
• CSC Plated as Shipping Container - available in 10ft, 20ft and 40ft configurations.
• Crane Rated 4 x Lifting Points for safe lifting and moving around site.

SPECIFICATIONS:

• Painted Brilliant White.
• Grade 304 Stainless Steel or Epoxy Lined Carbon Steel Inner Tank with bolted manway tank access.
• Heavy duty 6mm mild steel outer bund.
• 100mm fall to sump.
• Anti Syphon Valve.
• Low point.
• Fill point & pump cabinet with lockable container doors.
• Fill point - DN80 (3”) 304 Stainless Steel, with overfill prevention valve, firesafe isolation valve and non return valve.
• 25mm stainless steel sump draw line, with sump pump in cabinet for fuel sampling.
• Sample draw off point, inspection glass and closed loop return to tank.
• AS1657 designed and approved ladder and tank top access assembly.

PRODUCT RANGE:

View the full range of Self Bunded Tanks manufactured by PETRO Industrial today, or view some previous Aviation works by PETRO.

Contact PETRO industrial's team of bulk fuel storage and dispensing specialists for more information today!
