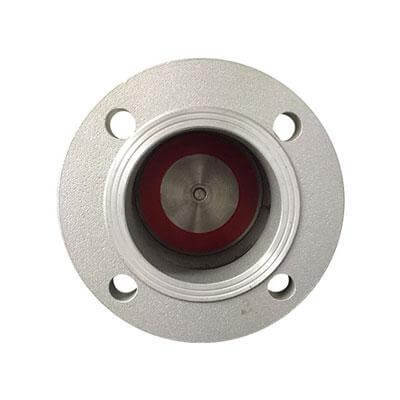

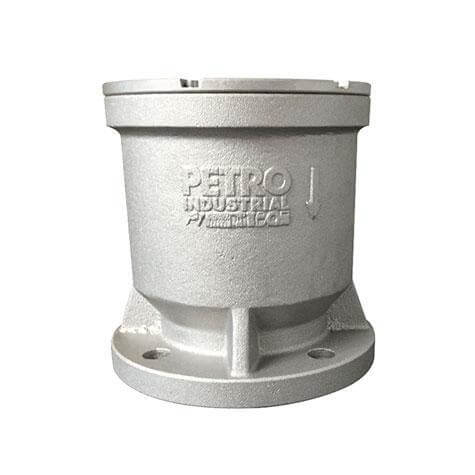

PETRO 80mm Antisyphon Valve

PETRO 80mm Antisyphon Valve

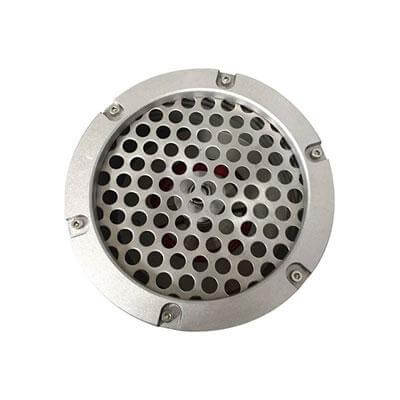

Designed to prevent the fuel syphoning from a self bunded (double wall) tank in the event of loss of the dispensing system. Supplied with integrated suction strainer to prevent the ingress of potentially damaging debris to the valve.

FEATURES:

• Cast aluminium structure compatible with Gasoline, Diesel, Kersosene, Ethanol, Methanol, Fuel Oil and Jet Fuel.
• Seal: Erapol.
• Flanges: 80 NB ANSI 150.
• Temperature rating: –40°C to +80°C.

SPECIFICATION - 80NB MODEL:

• Internal Diamater 65mm.
• Pressure Drop at 800Lpm 57Kpa.
• Opening Pressure: 27.5kpa @ 3m head.
• Maximum Operating Pressure 20Psi - 137Kpa.
• Average Flow rate 800Lpm.

MATERIALS OF CONSTRUCTION:

• Body: Cast Aluminium.
• Spring: 304 Stainless Steel.
• Spool: 304 Stainless Steel.
• Seal: Erapol.
