Description

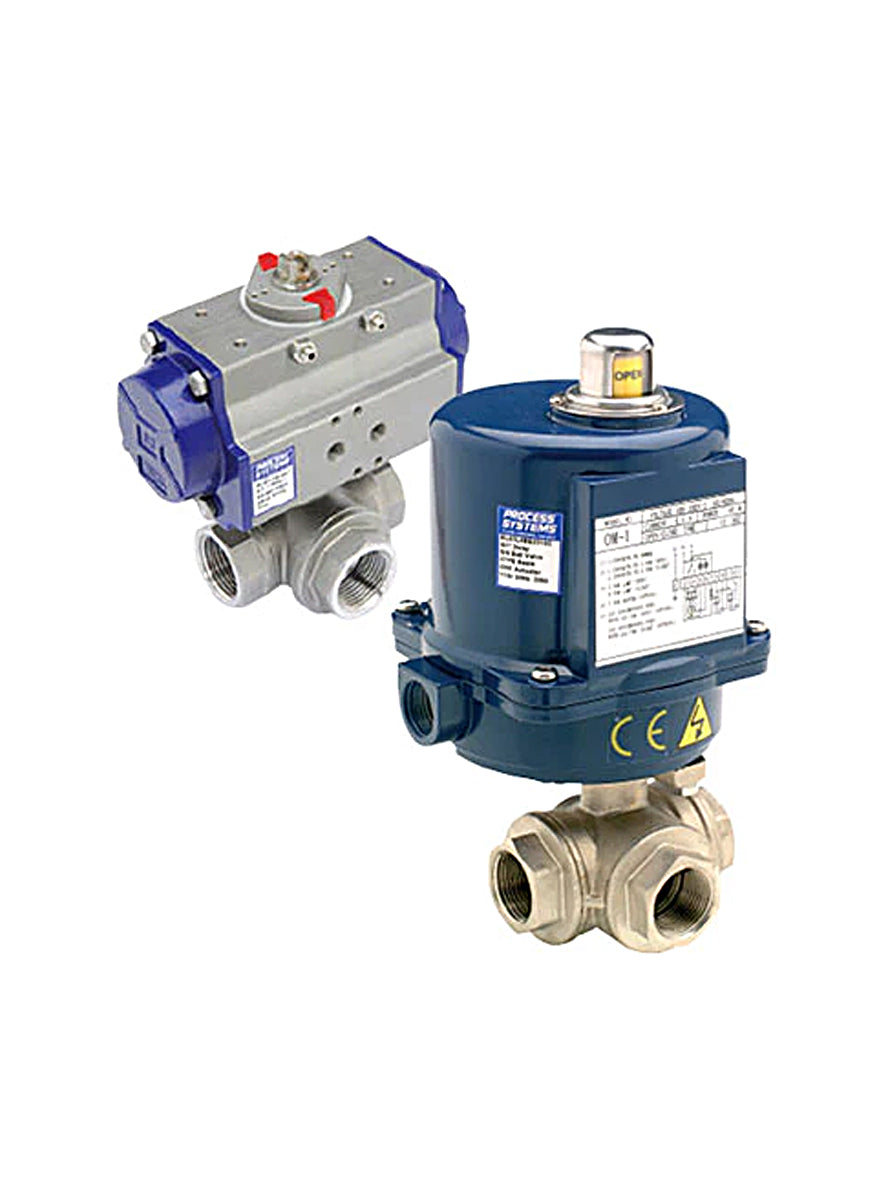

3 Way Threaded Actuated Ball Valves - 316 SS Scr BSP

Range of Stainless Steel Double Acting Spring Return Air or Electric Actuated Ball Valves.

FEATURES:

  • High performance 316 stainless steel ball valve.
  • 8mm to 80mm bore fitted with high temperature, carbon filled PTFE seats.
  • Body connections either threaded (standard), butt weld, socket weld or flanged.
  • Teflon - Has a wide range of chemical compatability (consult factory).
  • Typical applications include water treatment, chemical, marine, petrochemical and steam service.
  • Media Pressure - 70 Bar W.O.G. - Vaccum - 10 Bar Steam using RT Seat.
  • Media Temperature: -20deg C to 180Ā° C
  • Actuator Air Pressure: 6-8 Bar.
  • Materials of Construction: Body - 316 SS, Seats - Filled PTFE, Threads - BSP Female Scr.

DOUBLE ACTING PNEUMATIC (Air to Open and Close) ā€“ SPECIFICATIONS:

Model

Size

BSP

Orifice (mm)

Actuator

Media

Pressure

Media

Temperature

Actuator

Pressure

Material of

Construction

BLS3L2B-DA-RT

1/4

8

DA52

Ā

Ā

Ā

Vacuum

to

68 Bar

Ā

(Steam 10 Bar)

Ā

Ā

Ā

Ā

-20Ā°C

to

180Ā°C

Ā

Ā

Ā

Ā

6

to

8 Bar

Ā

Ā

Ā

316 SS Body

Ā

RTFE seat (reinforced Teflon)

Ā

Aluminium actuator

Ā

L or T port

BLS3L3B-DA-RT

3/8

10

DA52

BLS3L4B-DA-RT

1/2

12

DA52

BLS3L5B-DA-RT

3/4

15

DA52

BLS3L6B-DA-RT

1

20

DA52

BLS3L8B-DA-RT

1 1/2

32

DA75

BLS3L9B-DA-RT

2

43

DA85

BLS3L10B-DA-RT

2 1/2

55

DA100

BLS3L11B-DA-RT

3

66

DA115

Ā

SPRING RETURN PNEUMATIC (Air to Open and Spring to Close) ā€“Ā SPECIFICATIONS:

Model

Size

BSP

Orifice (mm)

Actuator

Media

Pressure

Media

Temperature

Actuator

Pressure

Material of

Construction

BLS3L2B-SR-RT

1/4

8

SR52

Ā

Ā

Ā

Ā

Vacuum

to

68 Bar

Ā

(Steam 10 Bar)

Ā

Ā

Ā

Ā

Ā

-20Ā°C

to

180Ā°C

Ā

Ā

Ā

Ā

Ā

6

to

8 Bar

Ā

Ā

Ā

316 SS Body

Ā

RTFE seat (reinforced Teflon)

Ā

Aluminium actuator

Ā

L or T port

BLS3L3B-SR-RT

3/8

10

SR52

BLS3L4B-SR-RT

1/2

12

SR52

BLS3L5B-SR-RT

3/4

15

SR63

BLS3L6B-SR-RT

1

20

SR63

BLS3L8B-SR-RT

1 1/2

32

SR85

BLS3L9B-SR-RT

2

43

SR100

BLS3L10B-SR-RT

2 1/2

55

SR115

BLS3L11B-SR-RT

3

66

SR125

Ā

ELECTRICALLY ACTUATED (ON / OFF AND MODULATING)Ā ā€“Ā SPECIFICATIONS:

Model

Size

BSP

Orifice (mm)

Actuator

Media

Pressure

Media

Temperature

Material of

Construction

Voltage

Available

BLS3L2B-E*-RT

1/4

8

0M-1

Ā

Ā

Ā

Ā

Vacuum

to

68 Bar

Ā

(Steam 10 Bar)

Ā

Ā

Ā

Ā

Ā

-20Ā°C

to

180Ā°C

Ā

Ā

316 SS Body

Ā

RTFE seat (reinforced Teflon)

Ā

IP67 Electric Actuator (with extra limit switches & man override except for 0M-A)

Ā

L or T port

Ā

Ā

Ā

Ā

12vDC

24vDC

24vAC

110vAC

240vAC

415vAC

BLS3L3B-E*-RT

3/8

10

0M-1

BLS3L4B-E*-RT

1/2

12

0M-1

BLS3L5B-E*-RT

3/4

15

0M-1

BLS3L6B-E*-RT

1

20

0M-1

BLS3L8B-E*-RT

1 1/2

32

0M-A

BLS3L9B-E*-RT

2

43

0M-2

BLS3L10B-E*-RT

2 1/2

55

0M-3

BLS3L11B-E*-RT

3

66

0M-4

Ā

Contact PETRO industrial'sĀ team of bulk fuel storage and dispensing specialists for more informationĀ today!
