PETRO Float Level Switches

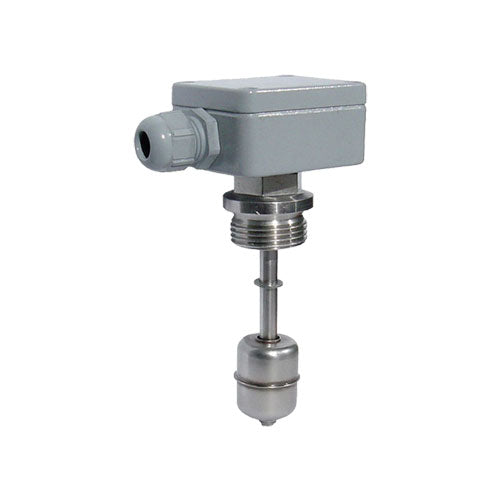

The operation of the PETRO range of level probes is based on the switching of reed switches by a magnetic float, moving alongside a protective tube.

FEATURES:

  • Floats with various dimensions and specific gravity are available for use with liquid density down to 0.7 g/cm3 and temperature up to 135 °C.
  • Up to 4 switching points can be mounted in a single probe, and the reed switches are capable of switching directly different loads.
  • Cable wiring is available with various insulations and lengths depending on the application requirements.
  • Various process connections for inside or outside mounting are available as well as an option for vertical adjustment.
  • The float is made of stainless steel.

ORDERING INFO:

Feature or Option



Code Values

Float



N1 - plastic, Ø17.5x25, P1 - plastic, Ø25x25, P2 - plastic, Ø30x45

S1 - Stainless Steel, Ø28x28, S2 - Stainless Steel, Ø41x38, S7 - Stainless Steel, Ø30x28

S10 - Stainless Steel, Ø30x32, S20 - Stainless Steel, Ø22x40

Contact function (no float) (2)



A - NO, B - NC, C - NO/NC

Contact ratings



1 - 120V/0.5A/10W, 2 - 230V/0.5A/10W(3), 3 - 230V/2.0A/50W

Operating lengths (mm) (4)



LO/L1/L2/L3/L4

Cable length ‘k’ (m) and type



1PV - 10PV - PVC, 1TF - 10TF - Teflon®, 1SL - 10SL - silicone, 1PU - 10PU - polyurethane (6)

Process connection

Inside

Installation

X - none, Q0 - M16x1.5, Q3 - G3/8”, Q7 - M12x1.5, Q8 - M14x1.5, Q18 - G1/8”, Q19 - 1/8” NPT

Q20 - M10x1, Q23 - G1/4”, Q24 - 1/4” NPT, Q30 - M10x1.5, Z - other (specify)

Outside

Installation

X - none, Q4 - G1/2”, Q10 - 1/2” NPT, Q12 - G1”, Q13 - G11/2”, Q15 - 1” NPT, Q16 - 11/2” NPT,

Z - other (specify)

Sheath



M1 - 1.4301, M2 - 1.4541, M3 - 1.4571, M9 - 1.4404

Vertical adjustment



X - none, A - vertical adjustment via stainless steel ferrule installed (5)

RC suppressors (pcs)



X - none, 1RC - 10RC - RC suppressors in bulk

(2) Specify (function, ratings) and separate with “/” each of the contacts (up to 4): e.g.: BLCSFC - S1.A2/B1/A3.

(3) B2 and C2 are not available.

(4) Specify the exact length (step 50mm) from the thread bottom to the respective contact according to the limits given in the specification table, strictly observing ‘A’ and ‘B’ minimum distances. 1st contact – ‘L1’; e.g.: BLCSFC - S1.A2/B1/A3.250/50/150/200.

(5) Only with outside installation.

(6) Contact BASI.

SPECIFICATIONS:

Float type

N1



P1



P2



S1 / S7 / S10



S20



S2



Liquid density (g/cm3)

> 0.80



> 0.70



> 0.70



> 0.80



> 0.75



> 0.70



Ext. tube diameter

8mm



8mm



10mm



8mm



8mm



10mm



Contact type

NO, NC

NO/NC

NO, NC

NO/NC

NO, NC

NO/NC

NO, NC

NO/NC

NO, NC

NO/NC

NO, NC

NO/NC

Max. common-lead contacts

3

-

3

-

4

2

3

-

3

-

4

2

Max. separated contacts

2

1

2

1

2

1

2

1

2

1

2

1

Max. cable wires

4

3

4

3

5

5

4

3

4

3

5

5

Contact ratings

‘1’: max. 120 VAC, max. 0.5 A, max. 10 W;  ‘2’: max. 230 VAC, max. 0.5 A, max. 10 W;  ‘3’: max. 230 VAC, max. 2 A, max. 50 W























Probe length (‘LO’)

100 - 1000mm



100 - 1000mm



100 - 2000mm



100 - 1000mm



100 - 1000mm



100 - 2000mm



End-to-float distance (‘A’)

min. 23mm



min. 23mm



min. 34mm



min. 25/25/29mm



min. 36mm



min. 34mm



Float running distance (‘B’)

min. 27mm



min. 27mm



min. 47mm



min. 30/30/34mm



min. 42mm



min. 40mm



Process temperature

-20 - 100 0C



-20 - 80 0C



-20 - 80 0C



-20 - 135 0C



-20 - 135 0C



-20 - 135 0C



Ambient temperature

PVC cable: -20 - 75 0C; IPUR cable: -20 - 90 0C; silicone or Teflon® cable: -20 - 135 0C























Max. process pressure

0 bar



4 bar



4 bar



10/30/50 bar



30 bar



30 bar



Wiring

up to 10m cable























Wetted parts

Float: NBR, PP, or Stainless Steel; sheath: Stainless Steel























Installation

inside

Outside

inside

Outside

inside

Outside

inside

Outside

inside

Outside

inside

Outside

Protection

IP68

IP65

IP68

IP65

IP68

IP65

IP68

IP65

IP68

IP65

IP68

IP65

Process connection

M10, M12

M14, M16

1/8”, 1/4”, 3/8”

min.

1/2”

M10, M12

M14, M16

1/8”, 1/4”, 3/8”

min.

1”

M12

M14, M16

1/4”, 3/8”

min.

1”

M10, M12

M14, M16

1/8”, 1/4”, 3/8”

min.

1”

M10, M12

M14, M16

1/8”, 1/4”, 3/8”

min.

3/4”

M12

M14, M16

1/4”, 3/8”

min.

11/2”
Download Data Sheet PDF
