PIUSI OCIO Tank Gauge - 240V, Single Tank Display, 4-20ma output signal

SKU F00755160
by Piusi
Original price $1,124.20 - Original price $1,124.20
Original price
$1,124.20
$1,124.20 - $1,124.20
Current price $1,124.20

Description

PIUSI OCIO Tank Gauge - 240V, Single Tank Display, 4-20ma output signal

  • Continuous tank level¬†monitoring.
  • OCIO detects the static pressure¬†generated by the fluid height by¬†means of a tube inserted into the¬†tank and displays the fluid level or¬†volume.
  • The unit is equipped with an¬†intuitive, complete software and¬†permits the connection of two¬†alarm or lock devices.
  • Depending on the set alarm¬†levels, the control unit activates or¬†deactivates the contact by acting¬†as a remote switch for starting¬†the alarms or cutting power to the¬†connected equipment.
  • Maximum measurable height: 4m.
  • Probe tube length: 10 m.

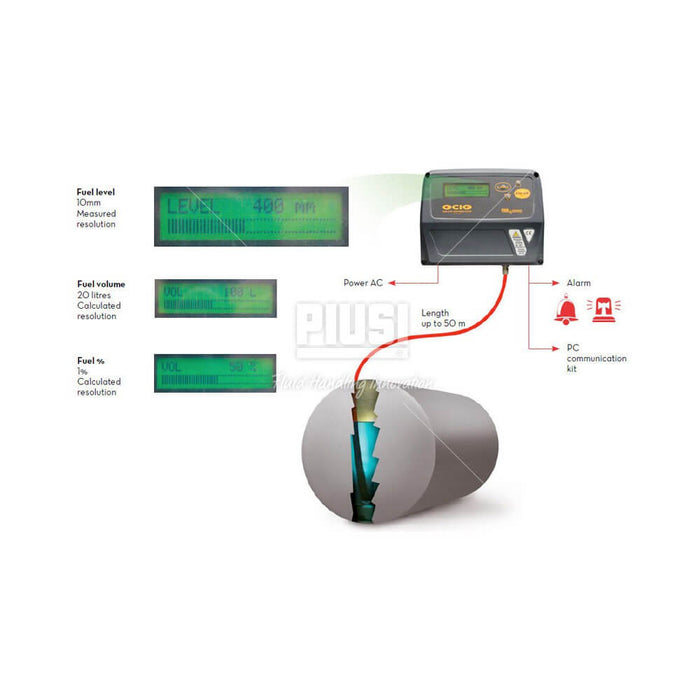

The system consists of:

  • A tube for detecting static¬†pressure: The tube end is inserted¬†from the top of the tank and¬†lowered down into the liquid until¬†it touches the bottom.
  • A control unit for displaying the¬†level and managing the system.¬†

The software is used to:

  • Set tank type and dimensions.
  • Define alarm levels.
  • Define indication level.
  • Define measurement unit.
  • Calibrate the instrument.

Technical information:

  • Supply voltage 230 V / 50 Hz¬†(120 V / 60 Hz).
  • Protection IP 55.
  • Full scale 4 m (12 feet).
  • Accuracy √Ö} 1 % full scale¬†Contact for maximum and¬†minimum level.
  • Max tension 250Vac at 5 Amp (or¬†30Vdc at 5 Amp).
  • Probe tube length 10 m (10,6¬†yards) (extensible up to 50 m (52¬†yards).

Level indication:

  • Height (mm, inch).
  • Volume (liters, gallons).
  • Filling percentage (%).
  • RS output for PC connection¬†available.

Main Advantages:

  • Continuous metering.
  • Indication in height, volume, and¬†filling percentage.
  • Maximum and minimum level¬†alarms.
  • High accuracy.
  • Intuitive software managing¬†procedure.
  • Easy installation.
  • PC linkup option.
Contact PETRO industrial's team of bulk fuel storage and dispensing specialists for more information today!
