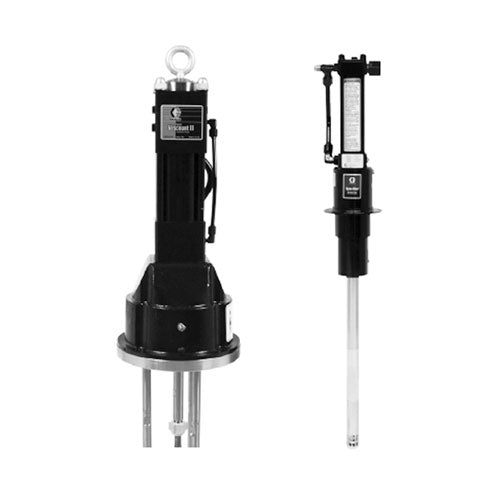

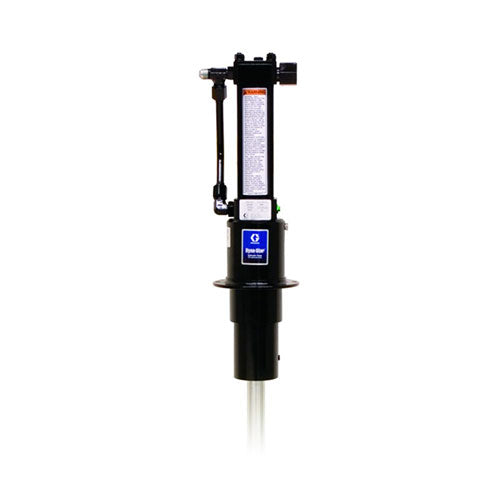

GRACO Dyna-Star, Power-Star & Viscount II Hydraulic Powered Pumps and Packages
Typical fluids handled are Petroleum- and synthetic-based oils, and Grease up to NLGI #2.
Typical applications are for Low pressure, high volume oil transfer, High pressure, high volume grease dispense, Heavy-duty dealerships, Fleet service facilities, Service shops, In-plant, Lube trucks and Mining.
FEATURES:
- Ties into existing hydraulic systems on mobile equipment.
- Operates quieter than air driven pumps and doesn’t require mufflers.
- Eliminates the need for air compressors.
- Provides self-lubrication for long life and reliability.
- Hydraulic changeover is faster with less pulsation allowing smoother output pressure, even with long plumbing runs.
HYDRAULIC FLUID CONTROLS (Required for each Pump):
|
236864
|
Dyna-Star Fluid Controls [1500 psi (102 bar); 3 gpm (11.4 lpm)]. Includes manifold with pressurereducing
valve, flow control valve, pressure gauge, shut-off ball valves and 3 ft (0.9 m) supply and
return hoses. Instruction manual 308395.
|
|
236865
|
Power-Star and Viscount II Fluid Controls [1500 psi (102 bar); 12 gpm (45.4 lpm)]. Includes manifold
with pressure-reducing valve, flow control valve, pressure gauge, shut-off ball valves and 3 ft (0.9 m)
supply and return hoses. Instruction manual 308395.
|
|
237904
|
1:1 Dyna-Star Thermal Relief Valve, 1600 psi (110 bar)
|
|
235998
|
Mini Fire-Ball 225, 3:1 thermal relief valve rated to 600 psi (41 bar
|
ORDERING INFO FOR GREASE PACKAGES:
|
Grease Applications
|
Dyna-Star, 5:1
|
Dyna-Star, 10:1
|
Viscount II, 2.4:1
|
|
Part No. – Drum Size
|
224912 – 35 lb (16 kg)
224751 – 120 lb (55 kg)
224752 – 400 lb (180 kg)
|
247540 – 60 lb (27 kg)
247443 – 120 lb (55 kg)
247450 – 400 lb (180 kg)
|
222902 – 400 lb (180 kg)
|
|
Max. Input Pressure
|
1500 psi (102 bar)
|
600 psi (41 bar
|
1500 psi (102 bar
|
|
Max. Hydraulic Fluid Input Vol.
|
3 gpm (11.4 lpm)
|
3 gpm (11.4 lpm)
|
12 gpm (45.4 lpm)
|
|
Max Grease Flow Output Rate
|
4 lb/min (1.8 kg)
|
1.1 lb/min (0.5 kg)
|
54 lb/min (20.4 kg)
|
|
Maximum CPM
|
60
|
60
|
60
|
|
Max. Fluid Output Pressure
|
7,500 psi (517 bar)
|
7,500 psi (517 bar
|
2,300 psi (159 bar)
|
|
Hydraulic Supply Inlet
|
3/8 npt
|
3/4-16 in. JIC (37º Flare)
|
3/4 npt
|
|
Hydraulic Return Outlet
|
3/4 npt
|
3/4 npt
|
1 npt
|
|
Fluid Outlet
|
1/2 npt
|
1/2 npt
|
1-1/2 npt
|
|
Maximum Incoming Hydraulic Fluid Temp
|
130º F (54º C)
|
200º F (93º C)
|
130º F (54º C)
|
|
Instruction Manua
|
308156
|
312350
|
308149
|
ACCESSORIES:
|
Code
|
Description
|
|
Follower Plates
|
|
224916
|
Follower plate for 35 lb (16 kg)
|
|
223700
|
Follower plate for 120 lb (55 kg)
|
|
223701
|
Follower plate for 400 lb (180 kg)
|
|
Covers
|
|
224915
|
Cover for 35 lb (16 kg)
|
|
204574
|
Cover for 120 lb (55 kg)
|
|
200326
|
Cover for 400 lb (180 kg)
|
|
Tie-Down Covers
|
|
222060*
|
Tie-Down Cover for 120 lb (55 kg)
|
|
207366**
|
Tie-Down Cover for 400 lb (180 kg)
|
*Use with hold-down kit 222061 **Use with hold-down kit 207361
