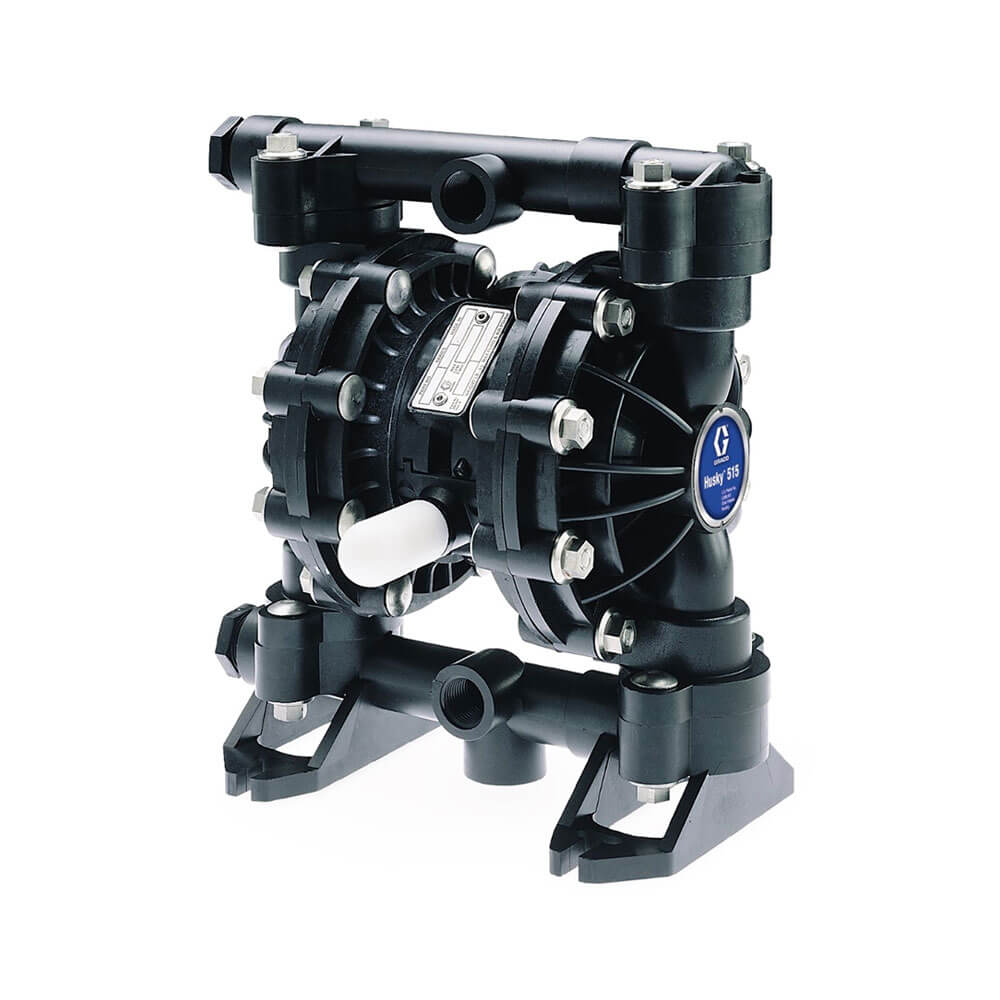

GRACO Husky 515 1/2" Air Operated Diaphragm Pumps

GRACO Husky 515 1/2" Air Operated Diaphragm Pumps

The Husky 515 air-operated double diaphragm pumpfeatures a stall-free low pulsation air valve which provides a smooth and rapid changeover. The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability. Max Fluid Flow: 15 gpm (57 l/min) Max Fluid...

$1,518

incl GST

SKU: D52966

Size

Description

The Husky 515 air-operated double diaphragm pumpfeatures a stall-free low pulsation air valve which provides a smooth and rapid changeover. The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

Max Fluid Flow: 15 gpm (57 l/min) Max Fluid Discharge Pressure: 100 psi (7 bars,0.7 MPa) Max Size Pumpable Solids: 3/32 inch (2.5 mm) Fluid Displacement Per Cycle: 0.04 g (0,15 liter) Max Fluid Working Pressure: 7 bar,0.7 MPa Air Pressure Operating Range: 2.1 to 7 bar,0.2 to 0.7 MPa Maximum Air Consumption: 0.672 m3/minute Maximum Pump Speed: 400 cpm Gallons Liter Per Cycle: 0.15

BENEFITS:

  • Center and end porting options.
  • No mechanical seals to cause fluid leaks or failures.
  • Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels.
  • Easy-to-service air valve and ball checks.
  • Split manifold option to pump multiple fluids without mixing.
  • Fully-groundable acetal model.
  • Easy-to-service air valve and ball checks.
  • Reliable air valve for years of dependable performance.
