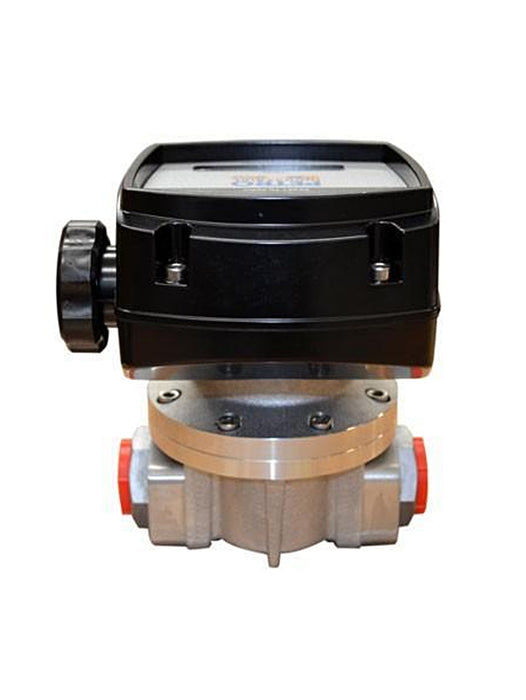

PETRO Flow Meter Range

4 Digital Mechanical Register with Totaliser

3 x Choices of Size - Scr BSP Female

• DN25 (10-120lpm)
• DN40 (10-250lpm)
• DN50 (15-550lpm)

Among the many PD flowmeter design principals available today, the oval gear still holds a top place both in simplicity and field proven performance.

PETRO Mechanical Flow Meters are a range of oval gear flowmeters which provide high levels of accuracy & repeatability for a wide range of most clean liquids irrespective of viscosity & conductivity including fuels , oils, additives, chemicals , food bases, paints, viscous emulsions , insecticides , alcohols & solvents

• Will register flow by either being pumped or gravity fed.
• Modular process connections
• No requirement for flow conditioning
• High accuracy, repeatability & reliability
• Wide turndown (min.~max . flow)
• Ultimate rotor stability (all metal rotors)
• Dual outputs (reed & hall effect) standard
• Hyperpulse high resolution pulse output
• Hazardous area versions
• Bi-directional flow capability
• Quadrature pulse output option
• Linearity : +/-0.5% of reading
• Repeatability : +/-0.03% repeatability
• Temperature : - 20~+120ºC (-4~250ºF)
• Materials : aluminum (316 stainless steel available as an option)
• Optional pulse outputs

Options include:

• Modular process connections
• LCD totaliser
• LCD flow rate totaliser
• LCD two stage batch controller
• Intrinsically Safe (I.S.) instruments
• 4~20mA, scaled pulse & alarm outputs
• Integral mechanical totaliser / batch register
• Quadrature pulse output
