Pressure Switch range

PETRO Industrial
SKU: PSM2R14
Availability: Many in stock
$ POA
Trust Badge

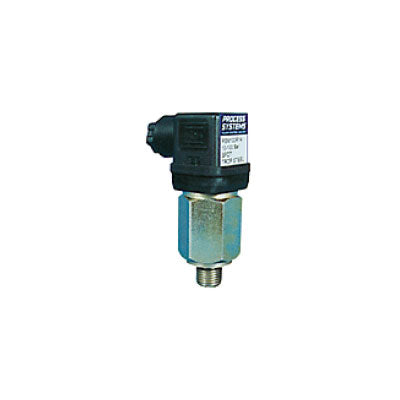

Pressure Switch Range

Typical uses include: pneumatic, hydraulic, lubrication and general industry.

FEATURES:

  • The PSM/PSP pressure switch is adjustable in 0.2 - 300 bar range with a separate adjustment for the differential (changeover value) of up to 30% full scale (preset at approximately 10% f.s.).
  • The units are single pole/double throw (SPDT), able to be wired normally open (NO) or normally closed (NC).
  • Electrical connection is via a DIN plug (PG09) and port connection is 1/4” BSP parallel with an o-ring gasket.
  • ISO Square Plug Connection.

PRODUCT RANGE:

Model

Material

Connection

Adjustment Range (mBar)

Membrane

PSM2R14



Brass









1/4 BSP

0.2 - 2









NBR (std)

PSM10R14

1 - 10

PSM2R14AP





Plated Steel

0.2 - 2

PSM10R14APS

1 - 10

PSM50R14S

10 - 50

PSM100R14S

10 - 100

PSM150R14S

30 - 150

PSM300R14S

50 - 300
