Description

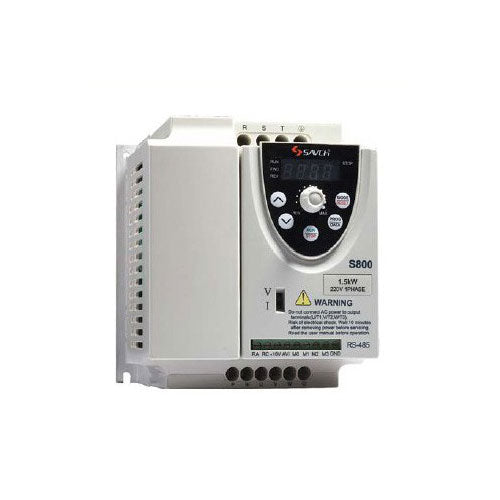

Variable Frequency Drive S800 Mini Static Vector Inverter

A Variable Frequency Drive (VFD) is a type of motor controller that drives an electric motor by varying the frequency and voltage supplied to the electric motor. Other names for a VFD are variable speed drive, adjustable speed drive, adjustable frequency drive, AC drive, microdrive, and inverter. Ā  The S800 satisfies the drive requirements of low power electric motors and is particularly applicable for medium & small machinery.

FEATURES:

  • Professionally customised core computing program.
  • Smooth shift on forward and reverse rotation.
  • Automatic torque compensation.
  • Automatic slip compensation.
  • Advanced control technology of switching 3-phase to 2-phase, reduces heat by 33.3%.
  • Adopting nanometer manufacturing technology, CPU with built-in dual core makes the computing speed dramatically improve.
  • Optional display panel, customising 1/0 interface panel, bring maximum benefit and convenience to customers.Ā
  • Friendly interface and humanised operation mode provide the maximum convenience to customers.

Reliability

  • Protect function: over voltage(OU), low voltage(LU), over current(OC), over heat(OH), over load(OL).
  • Over voltage and over current stall prevention.
  • Exposed radiator for better radiation effect.
  • 3-level prohibited frequencies can avoid resonance effectively.

High Performance

  • Automatic torque compensation-start torque can be up to 150% at 2HZ.
  • Automatic slip compensation-more accurate speed
  • Ultra-low noise-motor runs very stable.
  • High overload capacity-150% rated torque can last for 65 seconds.

Multi-Function

  • Frequency control mode of main/auxiliary frequency overlapping.
  • Pulse input to control frequency.
  • Multifarious stop methods (OFF stop, stop for AVI zero).
  • Display: voltage, current, preset frequency and practical frequency, rotation value (customer defined).
  • Oscillation frequency function.
  • Built-in PLC enables 16-level speed program running.
  • Other functions: power failure memory, reverse prohibited rotation, automatic voltage regulation (AVR), DC braking, automatic adjust acceleration / deceleration, parameter password-locked.

Input / Output

  • Input function: two-line / three line control, exterior EF, UP/DOWN, automatic program operation control, counting, pulse input, forward I reverse trigger to control operation direction.
  • Output function: indication of forward and reverse rotation, counting arrival, program operation, frequency arrival, over torque, and low voltage.

HOW TO ORDER:

Product Series

Input Voltage

Applicable Motor

Purpose Application

Example Code

Variable Frequency Drive

220V (1 phase)

0.2 - 0.2KW or

0.4 - 0.4KW or

0.75 - 0.75KW or

1.5 - 1.5KW

G - For General Purpose

Application

Ā

S800-

2S

1.5

G

S800-2S1.5G

Ā
